Delivery Date:
09/19/2019
Department Name:
Wheeling Fire Department
Department City / State:
Wheeling, WV

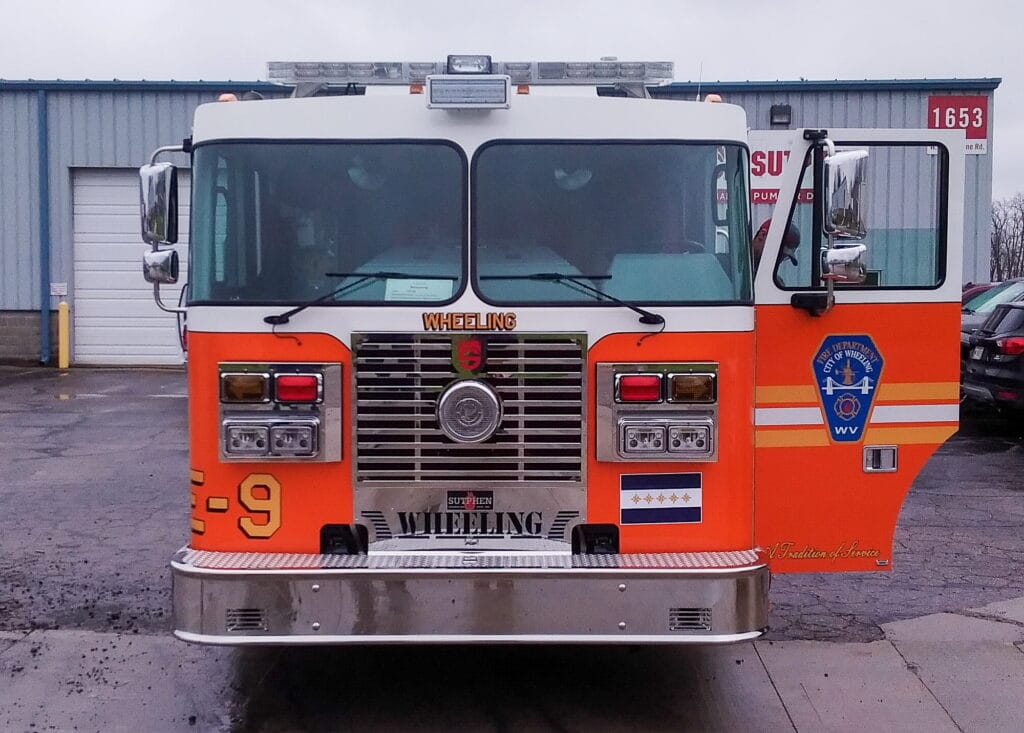

Sutphen Corporation – HS #6457

WHEEL BASE: 185”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 29’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS3000

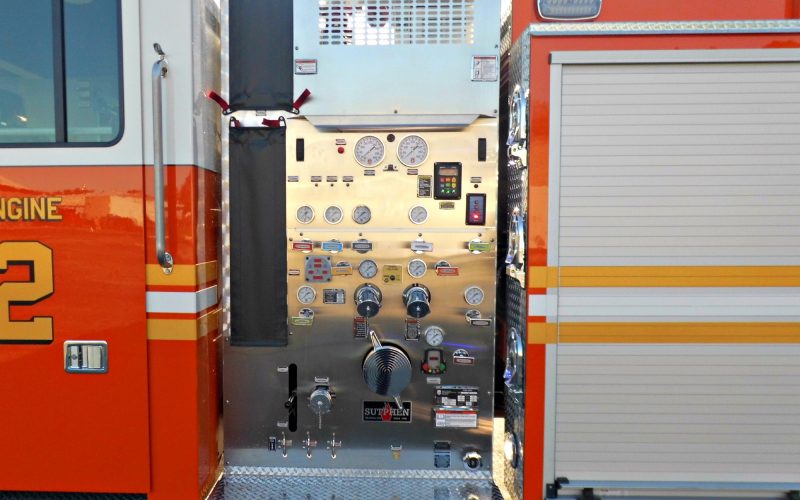

PUMP:                 Hale

  • QMAX-1750 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Pre-Connect, (1) 3” Deck Gun
  • 500-Gallon Water Tank
  • Crosslay: (1) 2 ½” Crosslay & (2) 2” Speedlays w/ 1 ½” Swivel & Poly Lift-Out Tray
  • Deck Gun Monitor, Akron Electric Operated 3440

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 150 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • 6KW Smart Power Generator
  • Whelen Freedom LED Lightbar
  • Whelen M9 Scene Lights
  • FRC Spectra Brow Light
  • FRC Spectra 240V LED Scene Lights
  • Triple Air Bottle Compartments (3)
