Delivery Date:
09/19/2019
Department Name:

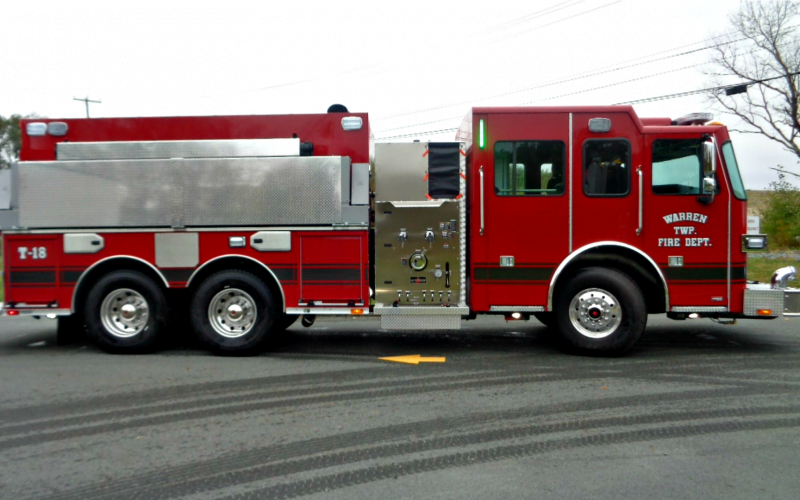

Warren Township Fire Department
Department City / State:
Warren, IN

WHEEL BASE: 201”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 33’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 48,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
  • Crosslays: (2) 2” with 1 ½” Swivel
  • 2,500-Gallon Water Tank
  • 20-Gallon Foam Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-Up Compartment Doors
  • Over 65 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section & 14’ Roof & 10’ Folding)
  • Body: SWT-04A

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • Camera System, FRC, Inview Trueview, Single Camera
  • SCBA Bottle Storage (7)
  • 10” Newton Kwik Dump
  • Zico Elec Porta Tank Rack with 3000-Gallon Porta Tank
  • Whelen FN72QLED Lightbar
  • Whelen M9 Scene Lights
  • FR Spectra 20K Brow Light
  • FR Maxvision Tank Gauges (3)
