Delivery Date:
09/04/2019
Department Name:
Lincoln Park Fire Department
Department City / State:
Lincoln Park, MI

Sutphen Corporation – HS #6456

Dealer – Apollo Fire Equipment and Apparatus Repair

WHEEL BASE: 196”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 31`’ – 9”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

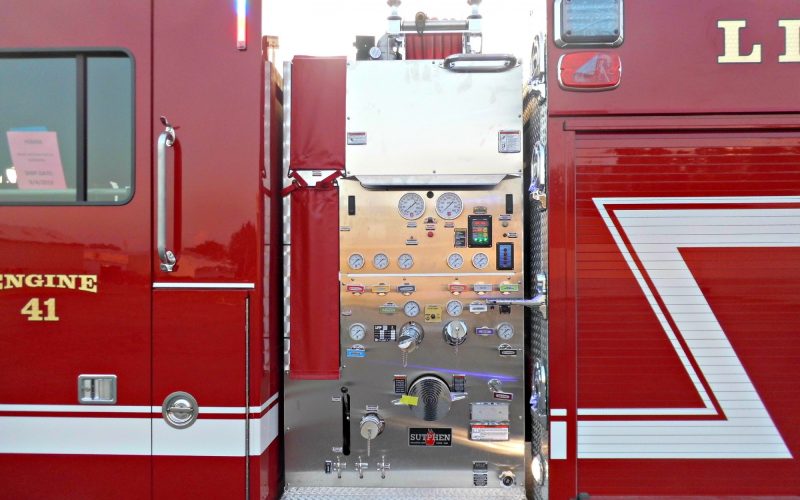

PUMP:                 Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • 750-Gallon Water Tank
  • Crosslay: (1) 2 ½” Crosslay & (2) 2” Speedlays w/ 1 ½” Swivel & Poly Lift-Out Tray
  • Deck Gun Monitor: TFT Hurricane Electric 1250 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • FRC, Inview Trueview, Camera System
  • Firecom 5100D, Single Radio, Wired Intercom
  • Whelen Freedom LED Lightbar
  • Whelen 900 LED Scene Lights
  • Whelen LED Traffic Advisor
  • FRC Spectra Brow Light
  • Triple Air Bottle Compartments (3)
