Delivery Date:
06/03/2020
Department Name:

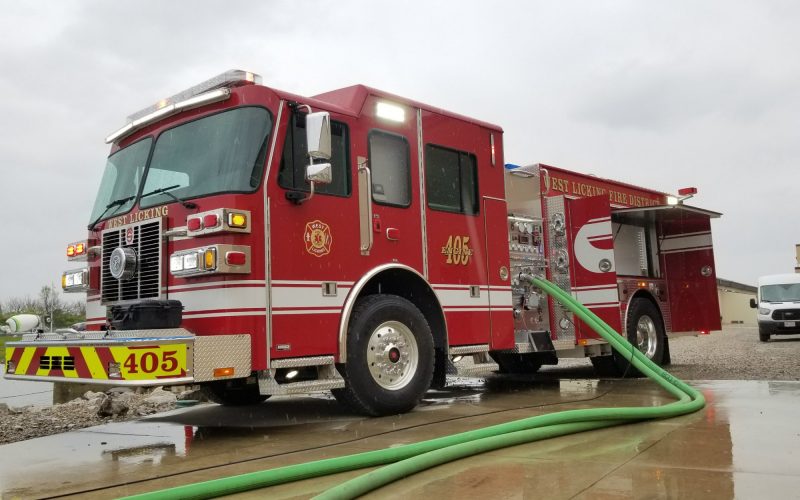

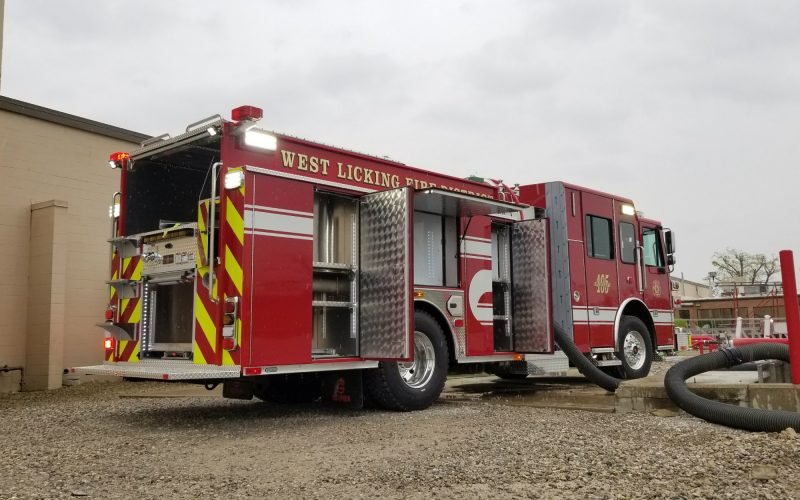

West Licking Joint FIre District
Department City / State:
Pataskala, OH

WHEELBASE: 198”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 33’ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 455 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Right, (1) 1 ½” Front Bumper, 3” Deck Gun
  • Crosslay: (1) 2 ½”
  • Speedlay: (2) 2” w/ Swivels and Poly Lift-out Trays
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Smart Foam 5.0 Foam System

BODY:                  Sutphen

  • ROM Roll-Up and Hinged Compartment Doors
  • 217 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & 14’ Roof & (2) 10’ Folding)
  • Body: S2-Alum 43/53 lad chute

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • FRC, Inview 360 Camera System
  • 4 Bottle Compartments
  • Firetech 3-piece 72” LED Brow Light
  • Whelen M9 LED Scene Lights
  • Whelen Freedom IV 72” LED Lightbar
  • Firetech LED Work Lights
  • FR Spectra 12V LED Lights
  • Whelen M6 LED Lights
