Delivery Date:
05/29/2020
Department Name:
Cardington Fire Department
Department City / State:
Cardington, OH

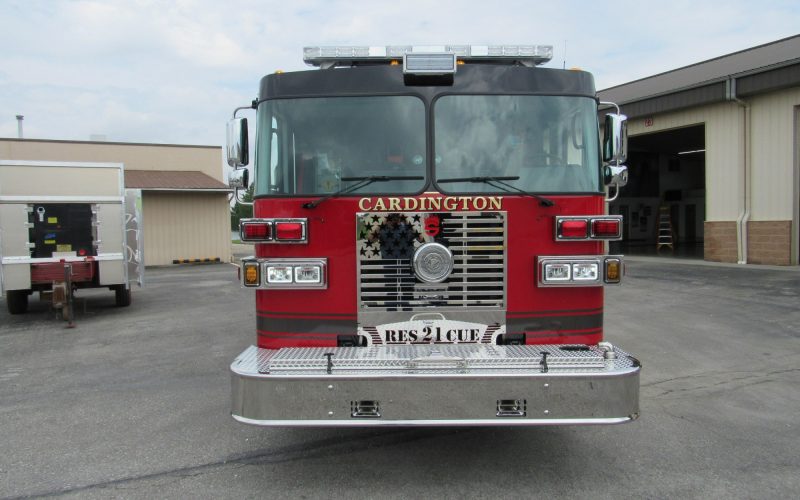

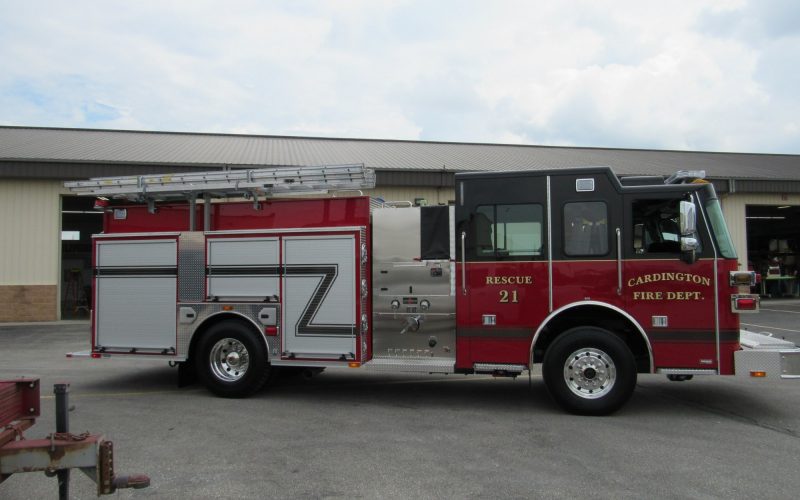

Cardington Fire Department. Cardington, OH.

WHEELBASE: 185”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 32’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Smart Foam 2.1A Foam System

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • 50 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (35’ 3-Section & 14’ Roof & 10’ Folding)
  • Body: S3-Alum 43/53, Hydraulic lad rack

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • 4 Bottle Compartments
  • FRC Spectra 12V Brow Light
  • FRC 900 12V LED Scene Lights
  • Whelen Freedom LED Lightbar
  • Whelen L31 LED Red Lights
  • Whelen 600 LED Red Lights
