Delivery Date:
06/18/2020
Department Name:
Davenport Fire Department
Department City / State:
Davenport, IA

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15, 600 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslay: (2) 2” w/ 1 ½” Swivel, (1) 2 ½” w/ 2 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • ROM Roll-Up and Hinged Compartment Doors
  • 49 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & 14’ Combo & REL-35 35’ 2-Section & (2) PRL-16 16’ Roof & 10’ Folding)
  • Body: SPH-3, Left 56” H/Right 56” H

ADDITIONAL EQUIPMENT:

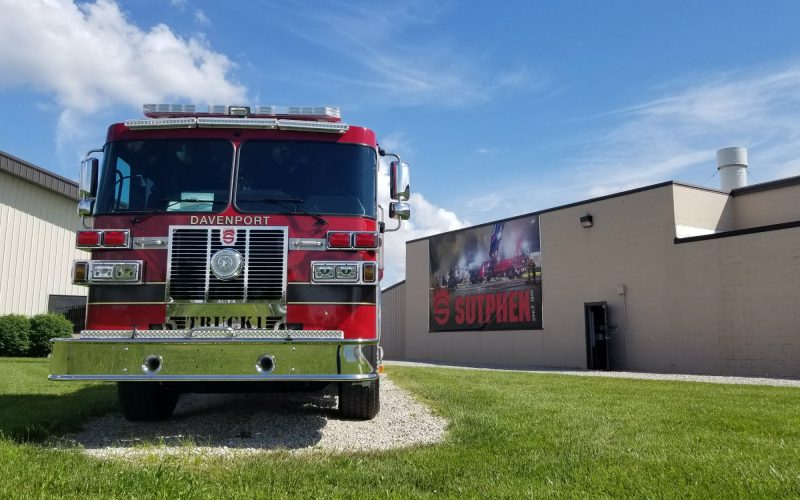

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • FRC, Inview 360 Camera System
  • Onan 6KW Hydraulic Generator
  • Firetech 3-piece 72” LED Brow Light
  • Firetech 12V LED Scene Lights
  • Whelen Freedom IV 72” LED Lightbar
  • FR Focus 240V Telelights
  • Whelen 600 Red LED Lights
  • Whelen M6 Red LED Lights
