Delivery Date:
10/14/2020
Department Name:
Savannah Fire Department
Department City / State:
Savannah, GA

Sutphen Corporation – HS #6621-22

Dealer – Williams Fire Apparatus

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 33’

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

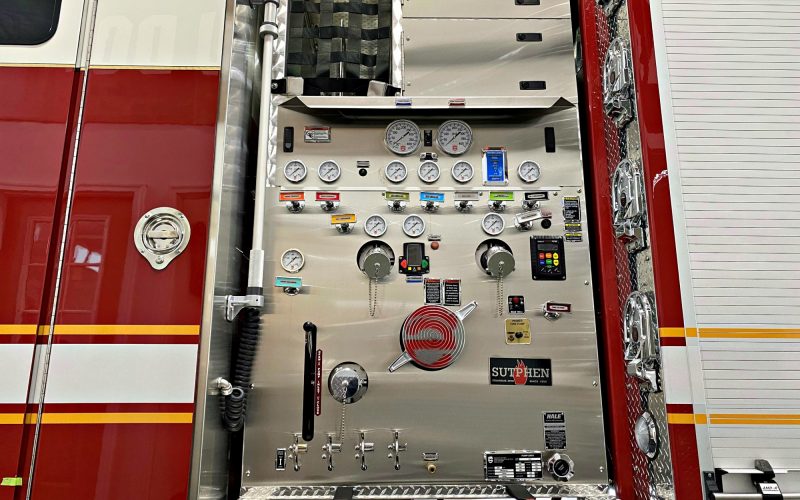

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 250” cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: S9 – Alum 43/53 Ladder Through the Tank

ADDITIONAL EQUIPMENT:

  • Federal Q2B Siren, Grille Mounted
  • 24” Formed Steel Channel Bumper Extension
  • Ladder Chute with Suction Storage
  • Aluminum Hosebed Cover
  • Roto-Ray Warning Light
  • Fire Tech 12V LED Brow
  • Federal Signal LED Light bar
  • 600 Rota-Beam
  • Federal Signal Rear Beacons
