Delivery Date:
10/29/2020
Department Name:
DeKalb County Fire Rescue
Department City / State:
Stone Mountain, GA

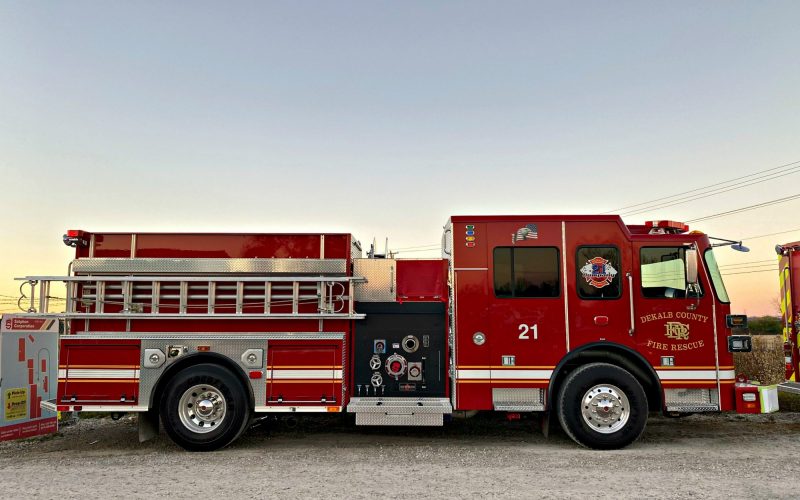

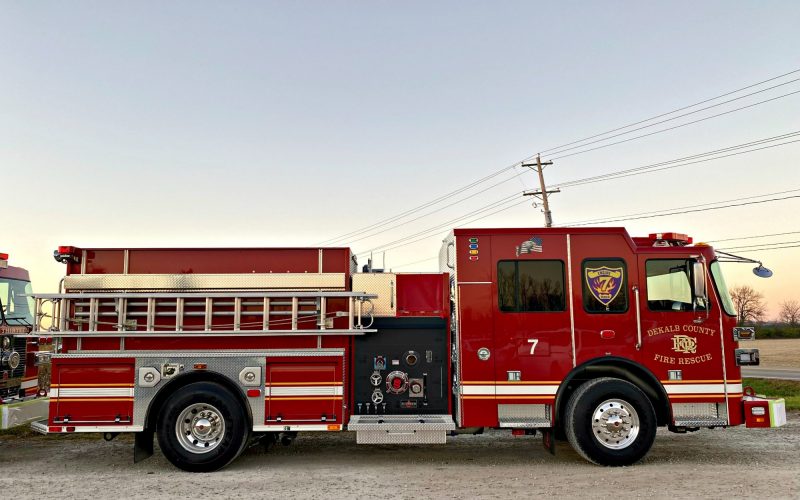

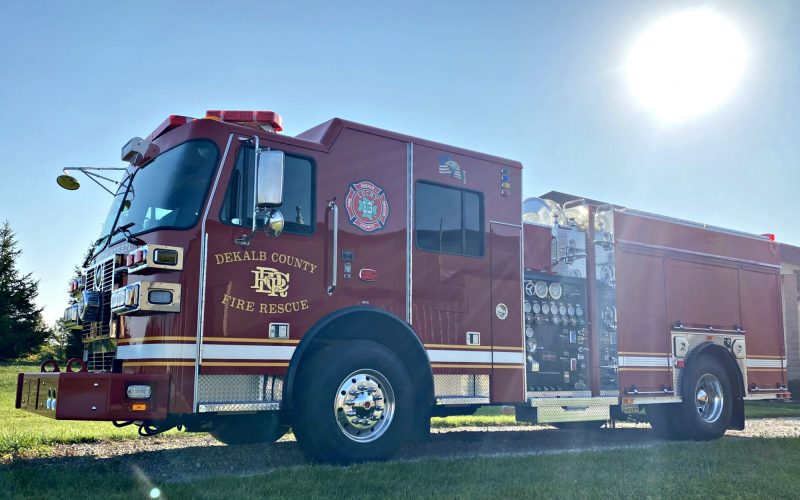

Sutphen Corporation – HS #6638-40

Dealer – Williams Fire Apparatus

WHEELBASE: 195”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 31’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 400 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QFLO-1000 GPM, Single Stage
  • Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System

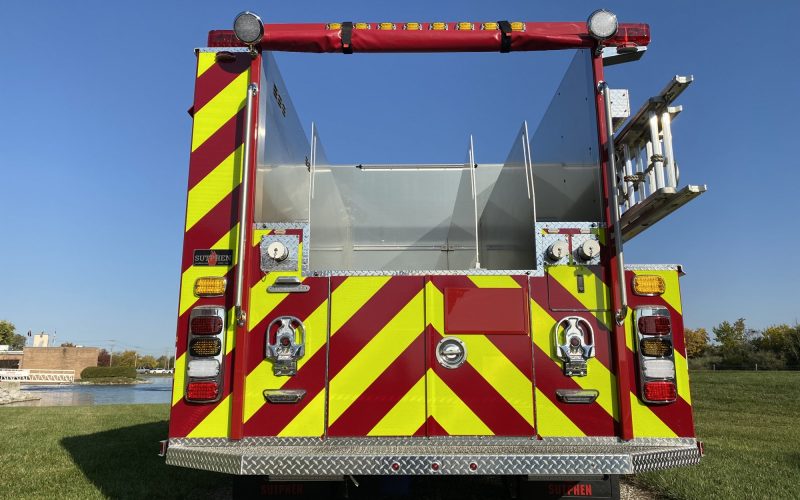

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 145 cu. ft. Total Compartment Space
  • Alco-Light Ladder Compliment (PEL-24 24’ 2-Section & PRL-14 14’ Double Hooked Roof & 10’ Folding)
  • Body: PA-11 Res 36/36 Low RGT, Fixed Ladder Rack

ADDITIONAL EQUIPMENT:

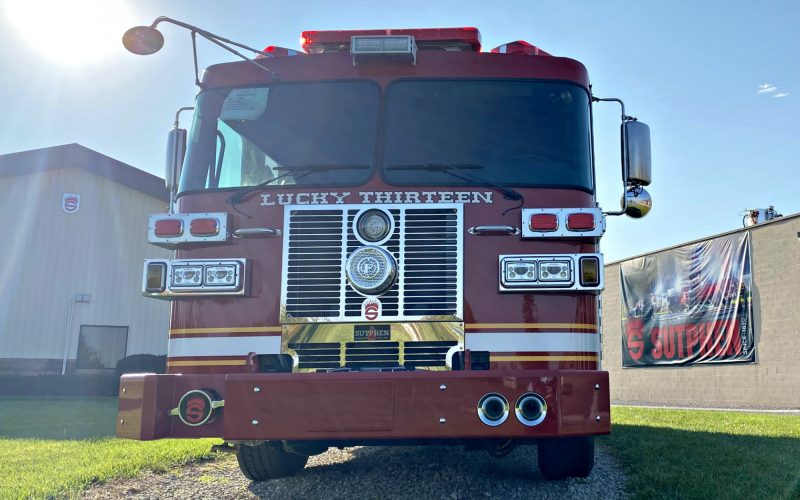

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B, Grille Mount
  • High Rise Pack Storage Compartment, Officer Side with Straps and STS Airplane Buckles
  • 18” Rear Railboard, Bustin Grating with Angled Corners
  • Whelen PFH2/PFlash 12V LED Brow Light
  • Whelen WeCanX Freedom 44” LED Lightbar
  • Whelen WeCanX Freedom 23” LED Lightbar
  • Whelen Traffic Advisor
