Delivery Date:
10/22/2020
Department Name:
Lawton Fire Department
Department City / State:
Lawton, OK

Sutphen Corporation – HS #6623-25

Dealer – Heartland Fire Trucks

WHEELBASE: 203”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 33’ – 1”

CHASSIS:             Sutphen Monarch Heavy Duty-Custom Chassis, 62” Extended Cab with a 15” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

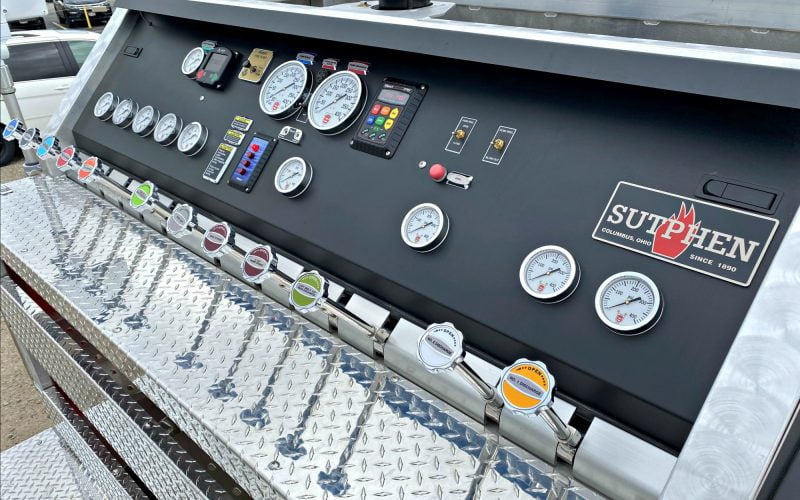

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivel
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 240” cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: S4 – Alum 31/53 Electric Ladder Rack

ADDITIONAL EQUIPMENT:

  • Federal Q2B Siren, Grille Mounted
  • 18” Polished Stainless Steel Bumper Extension
  • Camera System: FRC, Inview 360
  • Whelen Freedom IV 72” LED Lightbar w/ Opticom
  • Whelen Rota-Beam LED Beacon
  • Whelen M9 12V LED
  • FR Spectra 12V Brow
  • FR Spectra 12V Tele
  • Firetech Worklights
