Delivery Date:
04/20/2020
Department Name:
Rockdale County Fire Department
Department City / State:
Conyers, GA

Sutphen Corporation – HS #6556

Dealer – Williams Fire Apparatus

WHEELBASE: 184”

TRAVEL HEIGHT: 9’ – 6”

TRAVEL LENGTH: 31’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

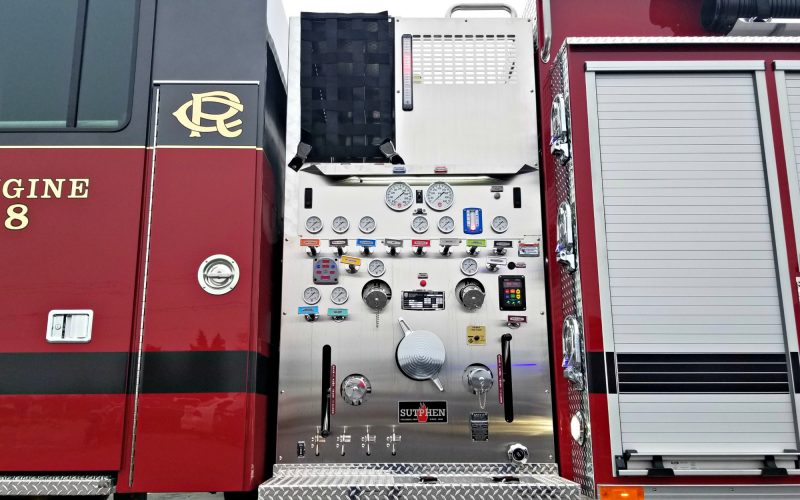

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2” w/ 1 ½” Swivel, (2) 2 ½” w/ 2 ½” Swivel
  • 550-Gallon Water Tank

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • 50 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & 14’ Roof & 10’ Folding)
  • Body: PA-09

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Smart Power 8KW Generator
  • Whelen Pioneer 12V Scene Lights
  • Whelen Freedom IV Lightbar
  • Whelen M6 Red Lights
