Delivery Date:
03/24/2020
Department Name:

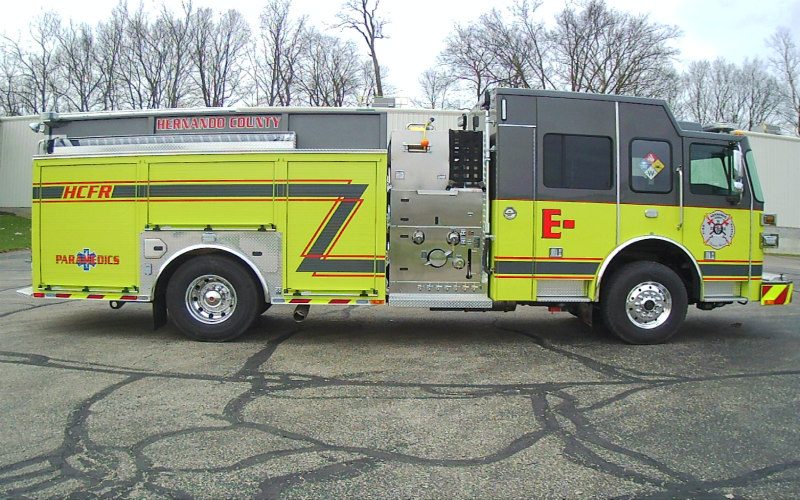

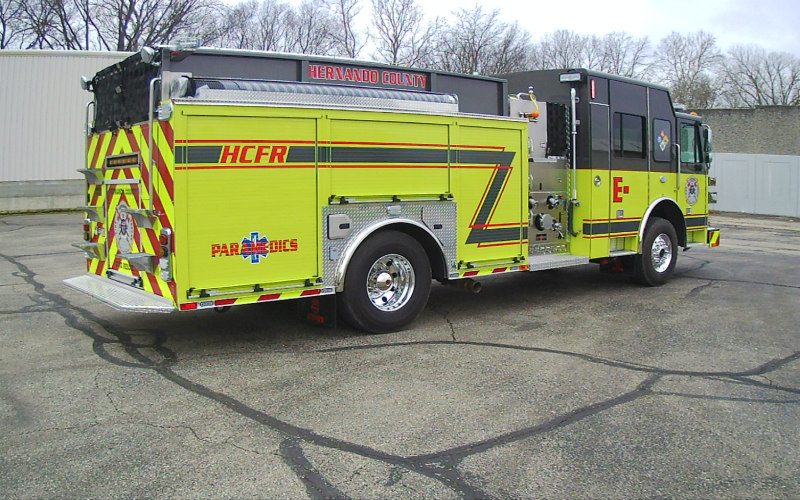

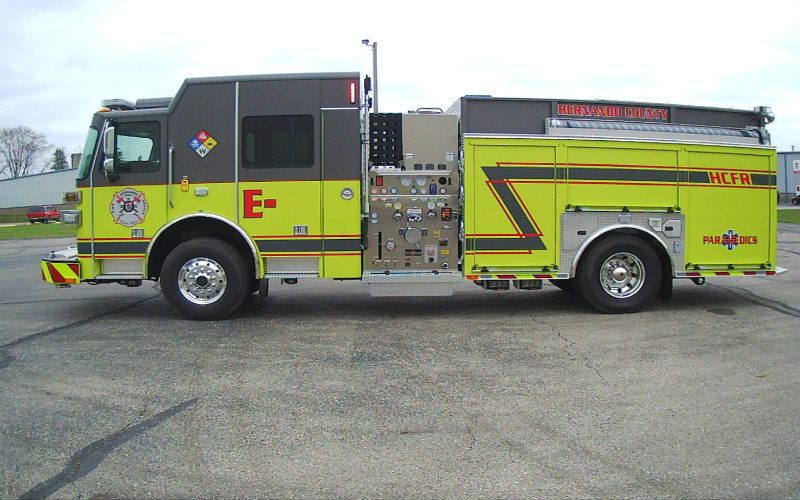

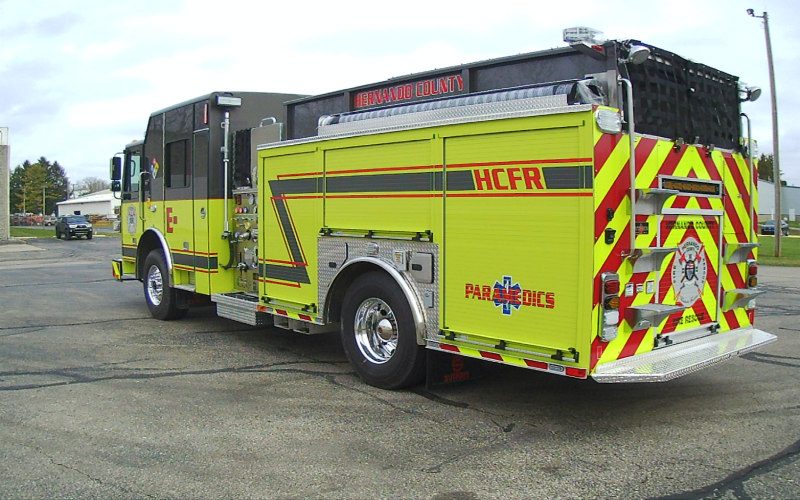

Hernando County
Department City / State:
Brooksville, FL

WHEELBASE: 196”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 32’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 15” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 400 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QFLO-1250 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: FoamPro 2001

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • 222 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (PEL-24 24’ 2-Section & 14’ Roof & 10’ Folding)
  • Fully Enclosed Ladder Chute
  • Body: G2-Alum 40/51 Lad Chute

ADDITIONAL EQUIPMENT:

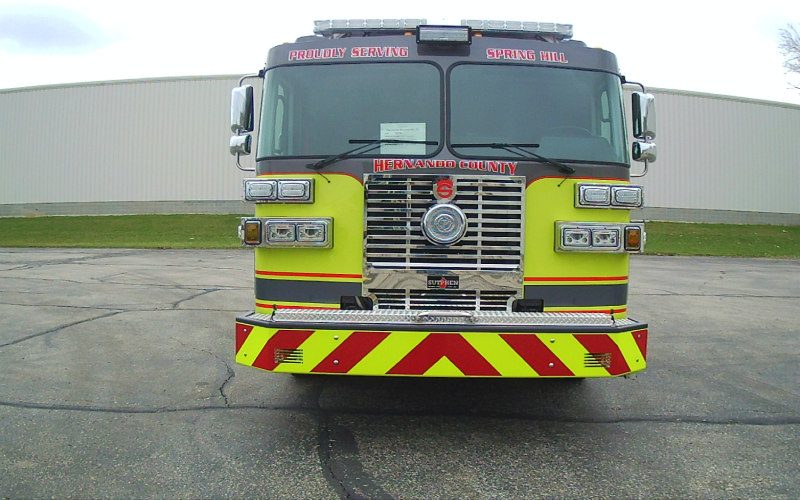

  • 18” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Energizer, EV3200P Generator
  • FRC Spectra LED Brow Light
  • Whelen M6 LED Scene Lights
  • Whelen Freedom IV LED Lightbar
  • FRC Spectra Telescopic Lights
