Delivery Date:
05/08/2020
Department Name:
Groveland Fire Department
Department City / State:
Groveland, FL

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • XS QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½” Crosslay
  • Speedlay: (2) 2” w/ 1 ½” Swivel & Poly Lift-out Tray
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

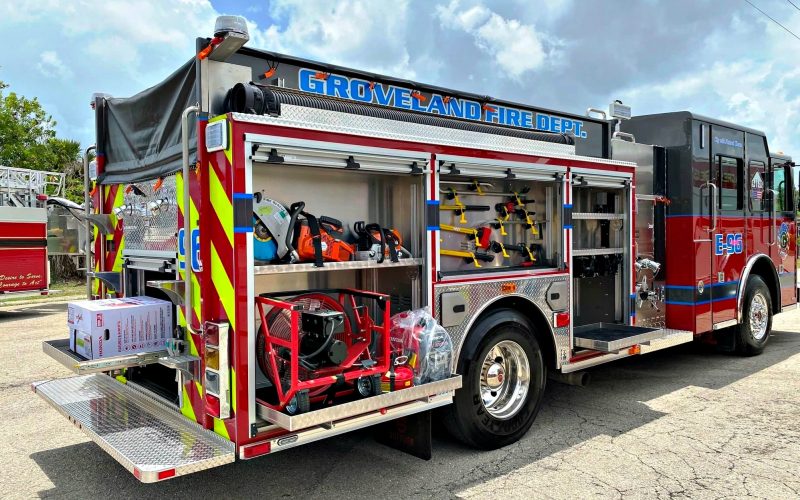

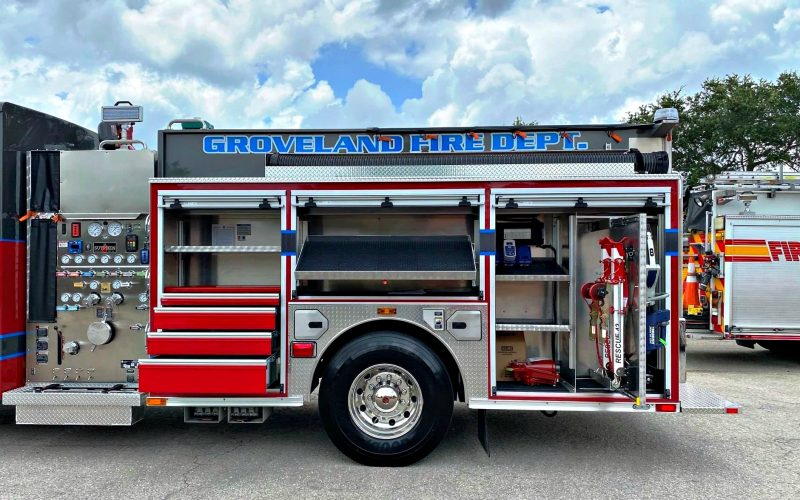

  • ROM Roll-Up Compartment Doors
  • 30 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & 14’ Roof & 10’ Folding)
  • Fully Enclosed Ladder Chute
  • Body: S2-Alum 43/53 Lad Chute

ADDITIONAL EQUIPMENT:

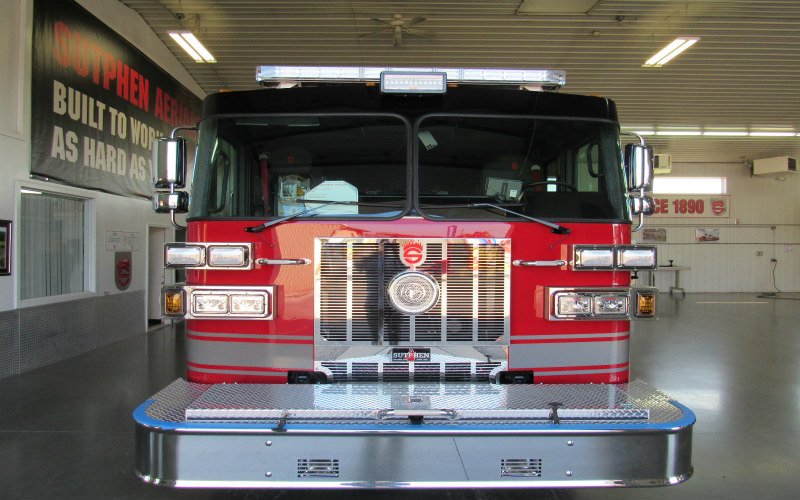

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • 4 Bottle Compartments
  • FRC Spectra Max 12V LED Brow Light
  • FRC Spectra 900 12V LED Scene Lights
  • Whelen Freedom IV LED Lightbar
