Delivery Date:
02/15/2019
Department Name:
Riviera Beach Fire Department
Department City / State:
Riviera Beach, FL

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

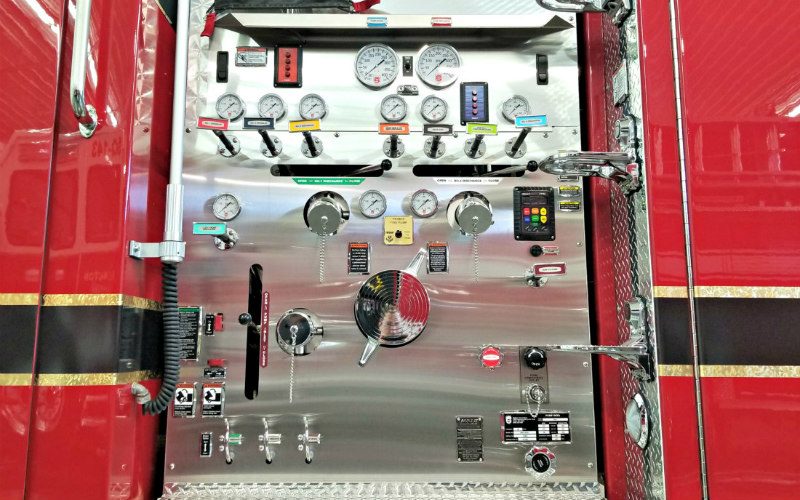

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” with 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Elkhart Foam Supply System

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Doors
  • Over 262 cu. ft. Total Compartment Space

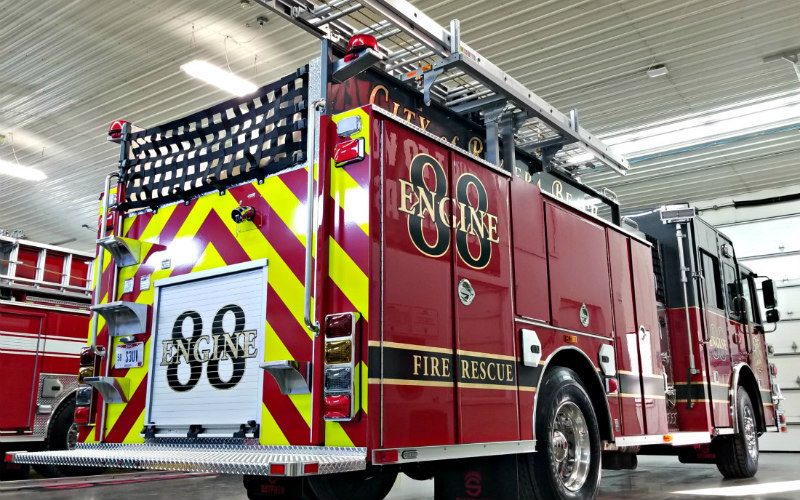

  • Duo-Safety (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • Whelen PFP2 12V LED Brow Light
  • Whelen Freedom IV LED Lightbar
  • Whelen PFP2 12V LED Telelight
  • Whelen 600 Super LED Warning Lights
  • Ziamatic Hydraulic Ladder Rack
  • 24” Bumper
  • Federal Q2B Siren
  • Rear Vision Camera
