Delivery Date:
02/15/2019
Department Name:
Springfield Township Fire Department
Department City / State:
Holland, OH

WHEEL BASE: 238”

TRAVEL HEIGHT: 9’ – 7”

TRAVEL LENGTH: 31’ – 8 ½”

CHASSIS:             International Durastar 4400 – 4DR

  • Four-Door, Four-Person Cab
  • Front Axle and Suspension 14,000 lbs
  • Rear Axle and Suspension 26,000 lbs
  • Engine: Cummins L 9, 330 HP
  • Alternator: For Commercial Chassis
  • Transmission: EVS3000

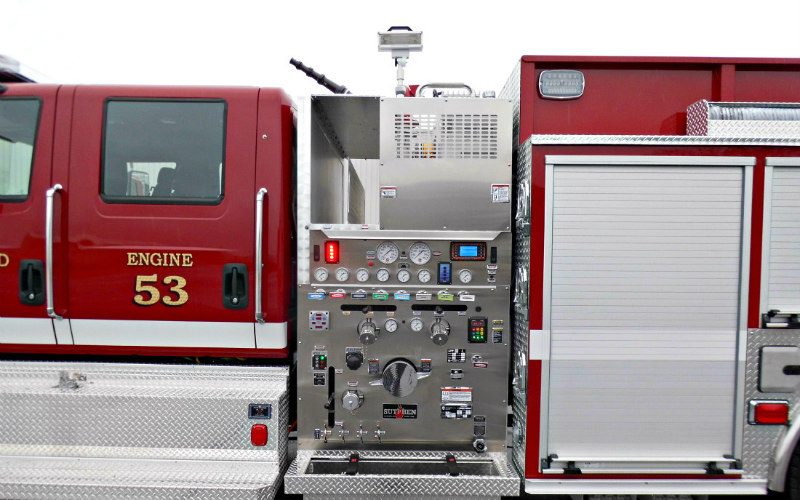

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear (1, (1) 3” Deck Gun
  • Crosslay: (2) 2” with 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Smartfoam 2.1

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Doors
  • 222 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)
  • Ladder Chute with Backboard Storage

OPTIONAL EQUIPMENT:

  • Whelen PFP1 LED Brow Light
  • Whelen Freedom LED Lightbar
  • Fire Research 500W Telescopic Lights
  • Whelen M9 Scene Lights
  • Hannay Electric Cord Reel, 150’ (1)
  • Electric Siren,Federal Signal EQ2B-200
  • Whelen 295 Electric Siren
  • Back-Up Camera
