Delivery Date:
02/15/2019
Department Name:

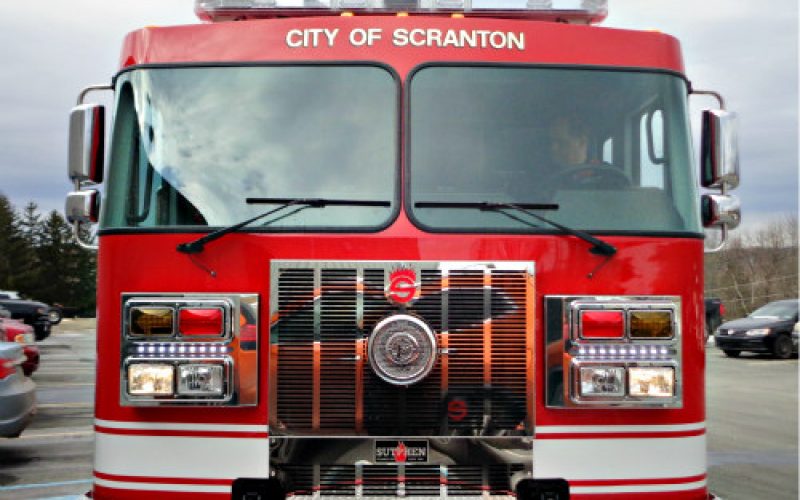

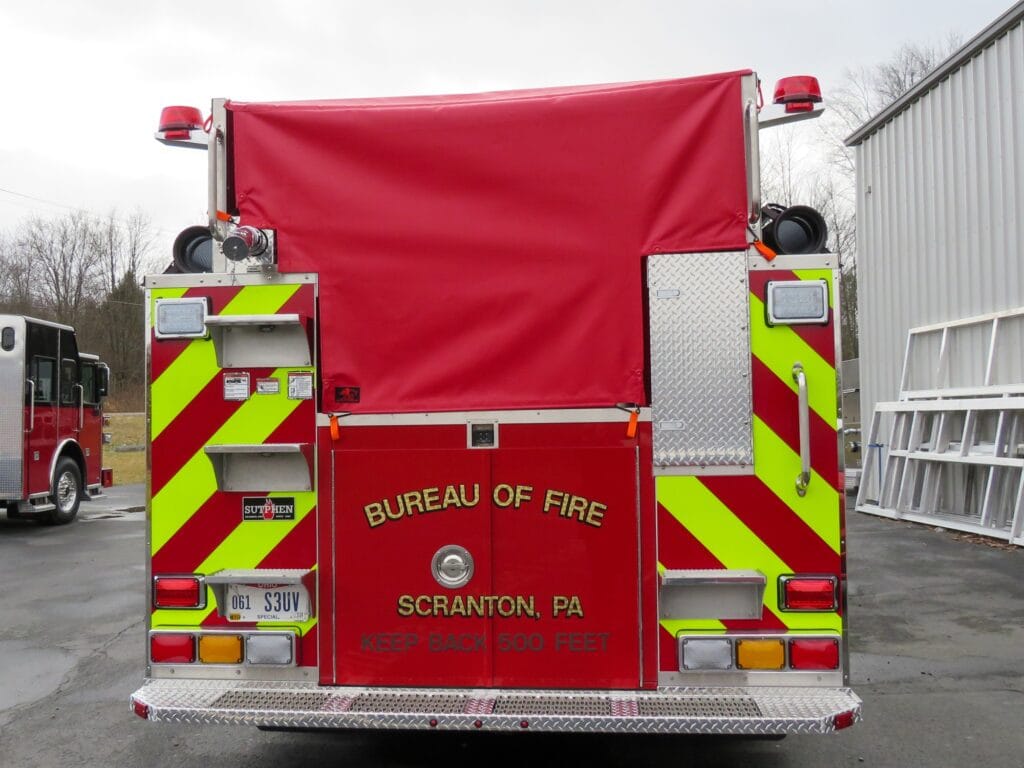

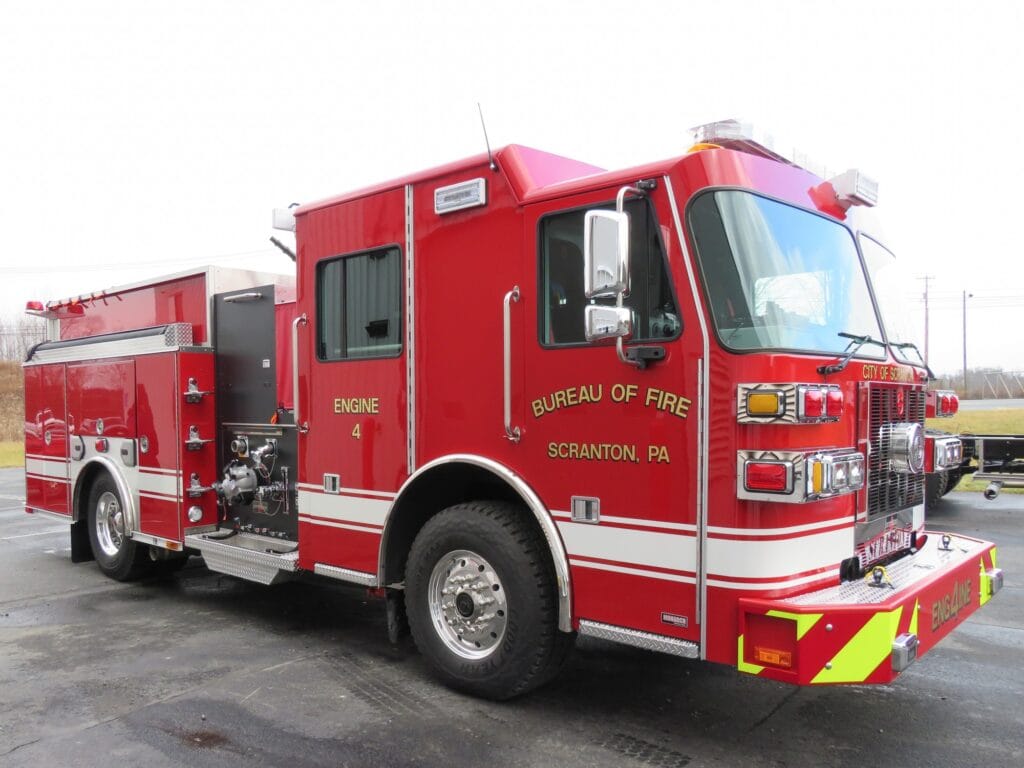

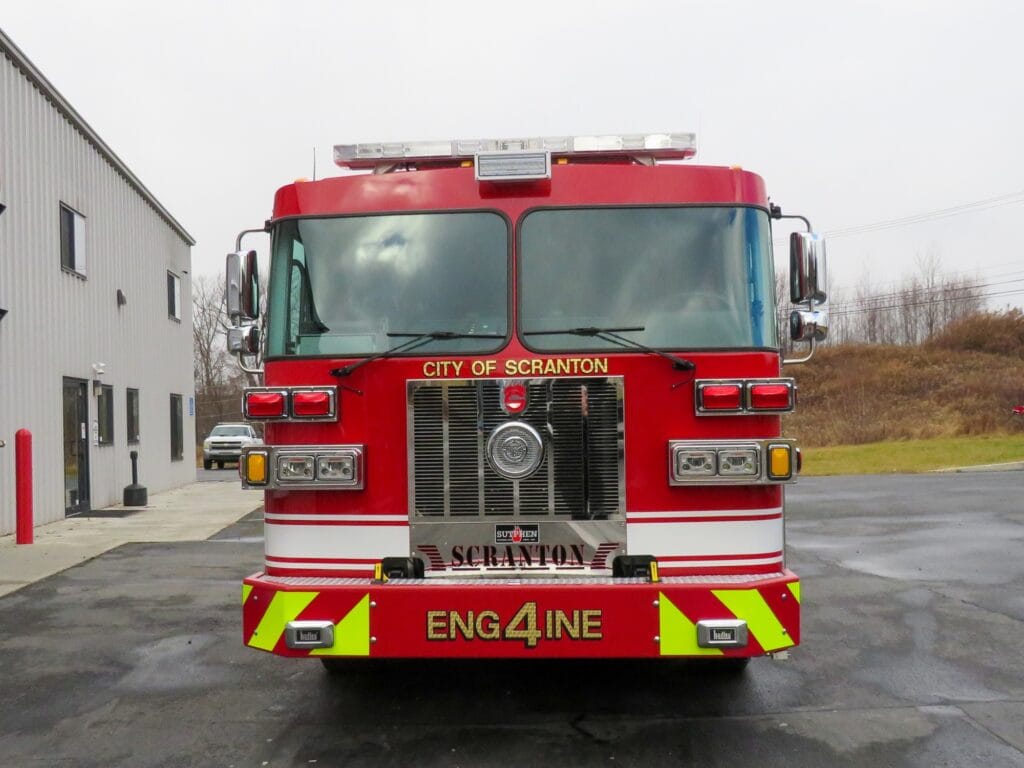

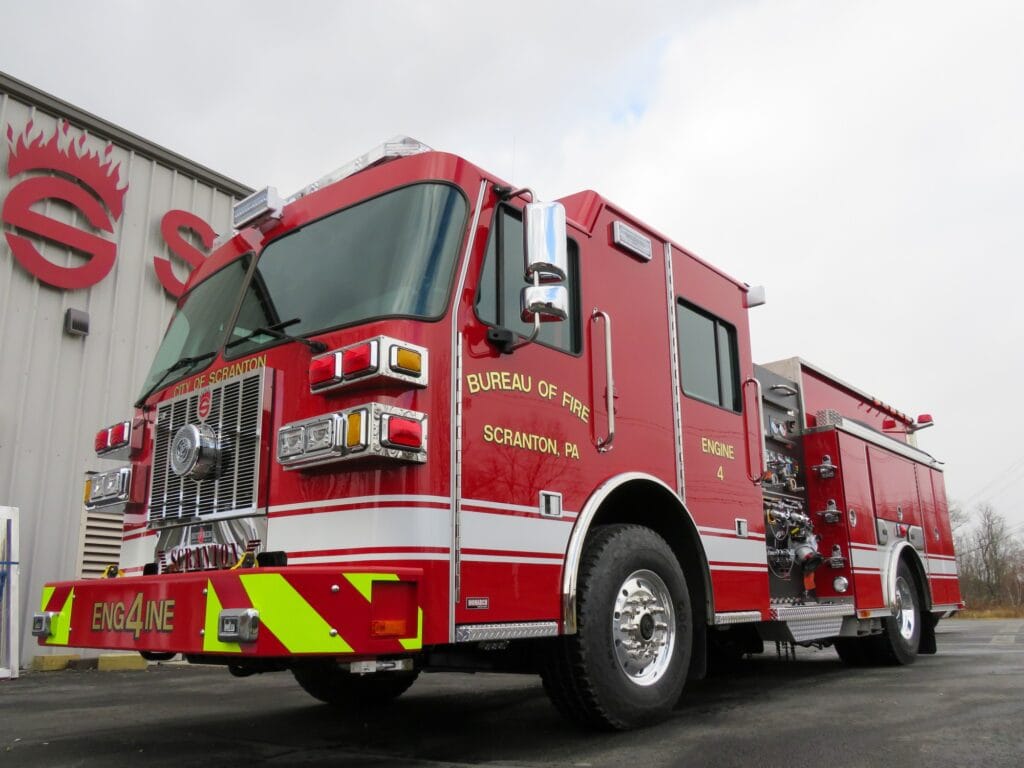

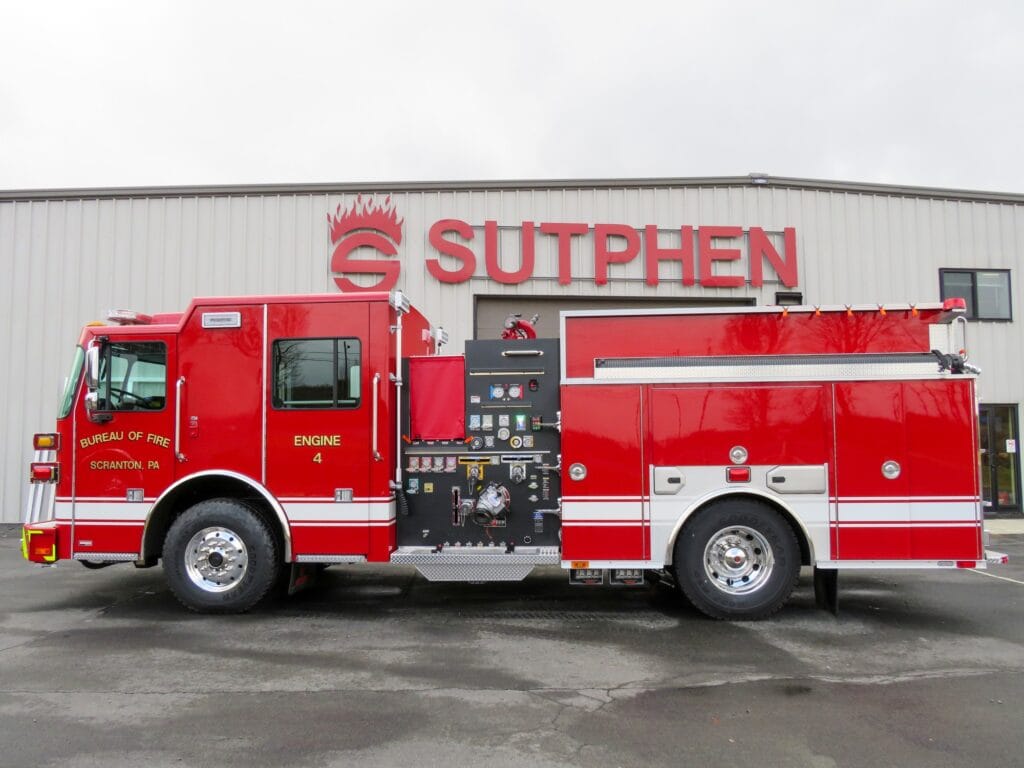

City of Scranton Fire Department
Department City / State:
Scranton, PA

WHEEL BASE: 172”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 29’ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • DSD-1500 GPM, Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
  • 750-Gallon Water Tank
  • Monitor: TFT XFC-42 Crossfire w/ Safety Flow, Quad Stack Tips and Stream Shaper
  • Crosslay: (2) 1 ½” & (1) 2 ½” w/ Swivels

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Doors
  • Over 164 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • Backup Camera
  • FRC Spectra Brow
  • Whelen 72” Freedom 8 Module Lightbar with Opticom
  • Federal Q2B
  • Whelen 600 Series Warning Lights (8)
  • 12” Bumper Extension
  • Pike Pole Storage Compartments (3)
