Delivery Date:
06/21/2019
Department Name:
Kingwood Volunteer Fire Department
Department City / State:
Kingwood, WV

Sutphen Corporation – HS #6256

Dealer – FAST of the Allegheny Mountains

WHEEL BASE: 199”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 32’ – 8”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Fram Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

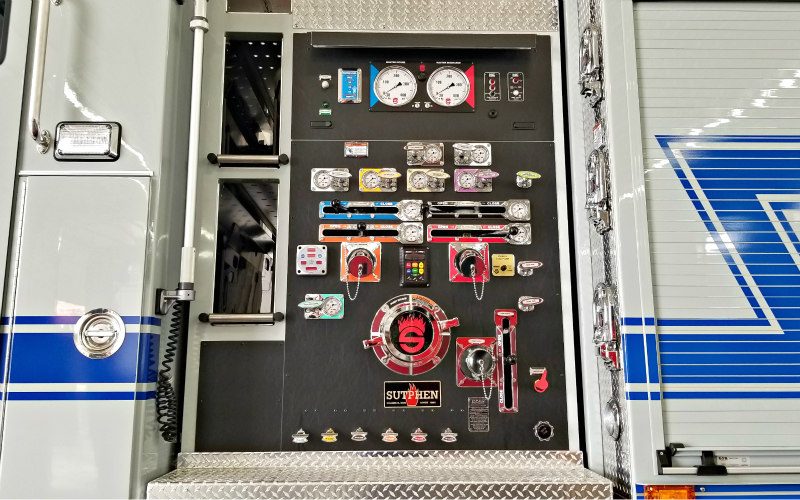

PUMP:                 Hale

  • QMAX-1500 GPM
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” Speedlays with Liftout Tray
  • Crosslay: (1) 2 ½” Crosslay
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Doors
  • Over 169 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 10KW Smart Power Generator
  • Hannay Electric Cord Reel, 100’ (2)
  • Federal Q2B Siren, Flush Grille Mount
  • Rear Vision Camera System
  • 24” Formed Steel Channel, Bumper Extension
  • Whelen Freedom LED Lightbar
  • Whelen McFled Red LEDs
  • (2) FRC Spectra 12V LED Brow Lights
  • FRC Focus 750W/240V Telelights
  • Command Light KL450 Light Tower
