Delivery Date:
06/15/2019
Department Name:

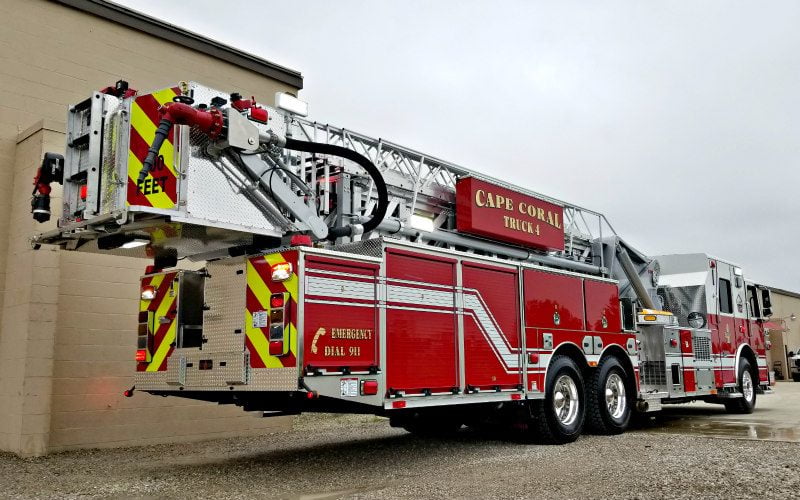

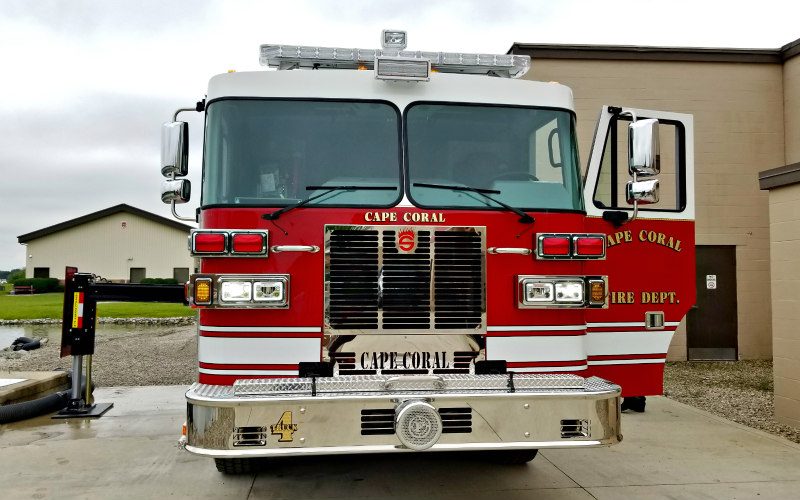

Cape Coral Fire Department.
Department City / State:
Cape Coral, FL

WHEEL BASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslays: (1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslay with 1 ½” Swivel
  • 370-Gallon Water Tank
  • 30-Gallon Foam Tank
  • FoamPro 2002, 5.0 GPM

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-Up Compartment Door
  • Over 287 cu. ft. of Total Compartment Space
  • Alco-Lite Ladder Compliment (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F)
  • SPH-3: Left 56” High/ Right 56” High

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Front Bumper Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • 10KW Harrison Generator
  • Whelen Freedom IV (16) LED Lightbar
  • Whelen 900 12V Scene Light
  • FireTech LED Spotlight
  • FRC Spectra Max 12V LED Brow
  • Go Light

MONITOR:

  • Drive Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
