Delivery Date:
06/22/2019
Department Name:
Fort Lauderdale Fire Rescue
Department City / State:
Fort Lauderdale, FL

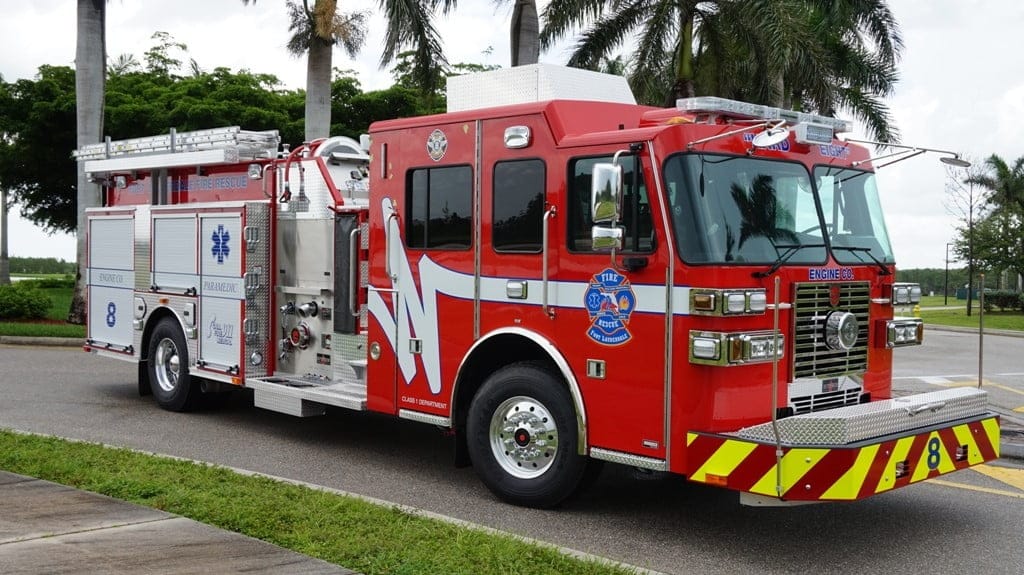

Sutphen Corporation – HS #6273

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 224”

TRAVEL HEIGHT: 10’ – 6”

TRAVEL LENGTH: 34’ – 11”

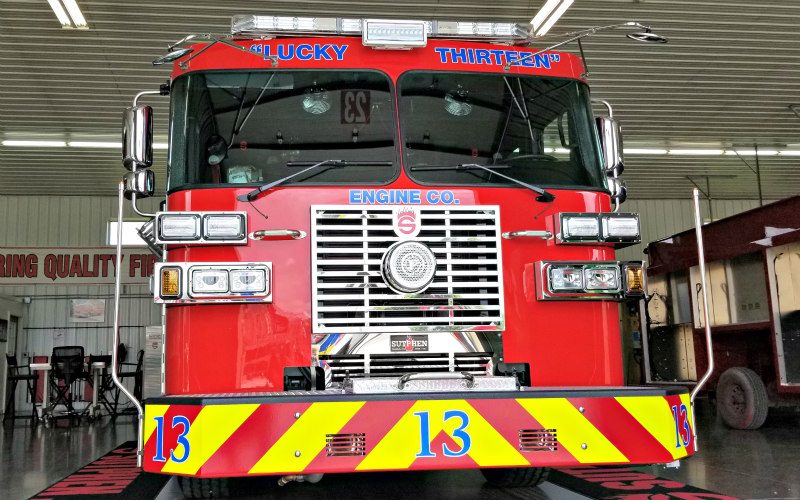

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

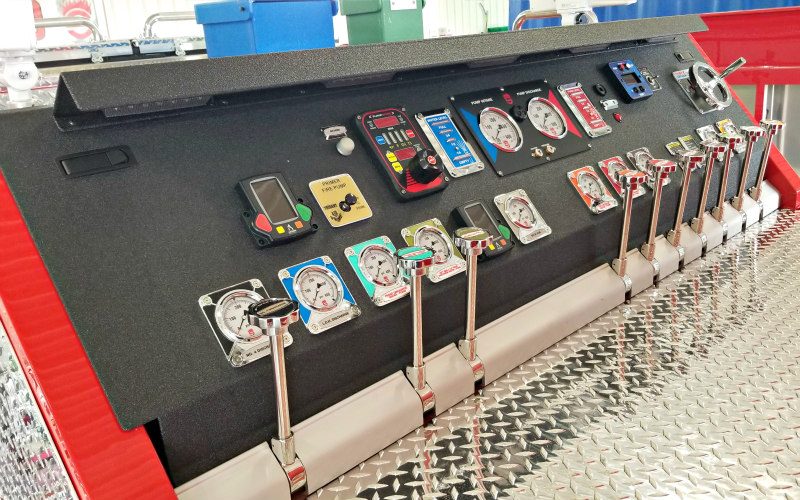

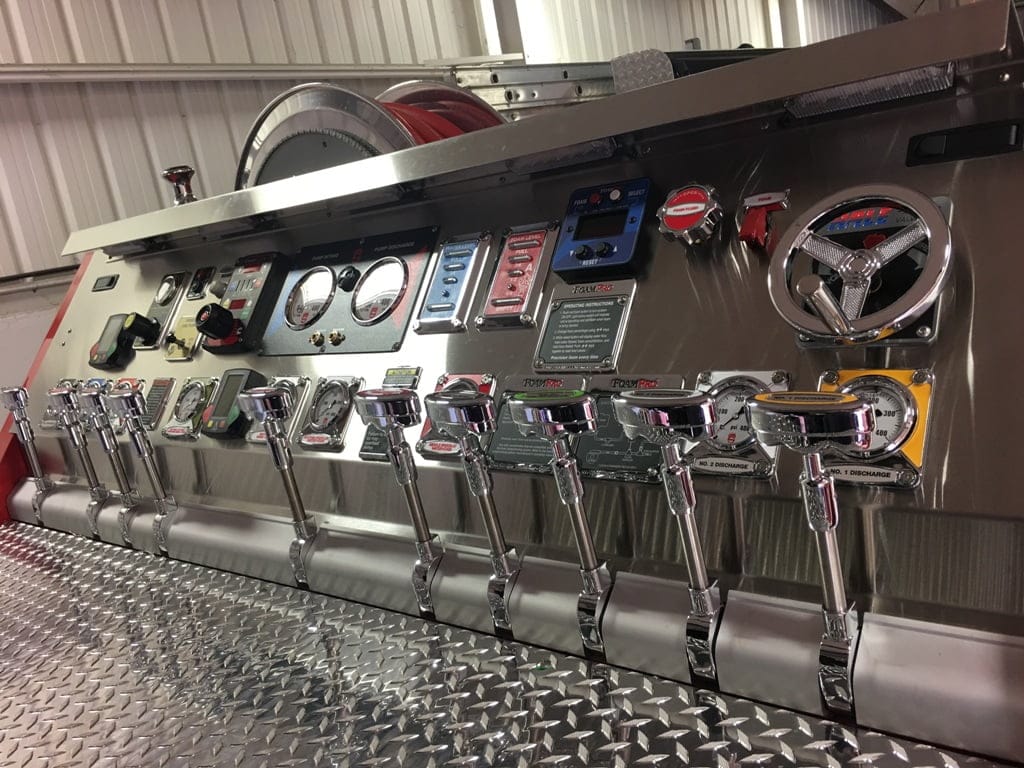

PUMP:                 Hale

  • QTWO-1500 GPM, 6” Suction Two-Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” Speedlays & (1) 2 ½” Speedlay – Top Mount
  • 750-Gallon Water Tank
  • 40-Gallon Foam Tank
  • FoamPro 2002, 5.0 GPM

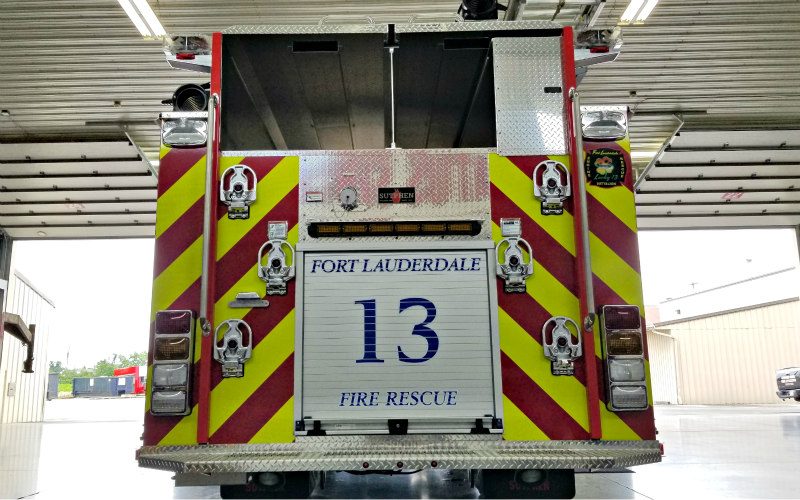

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Doors

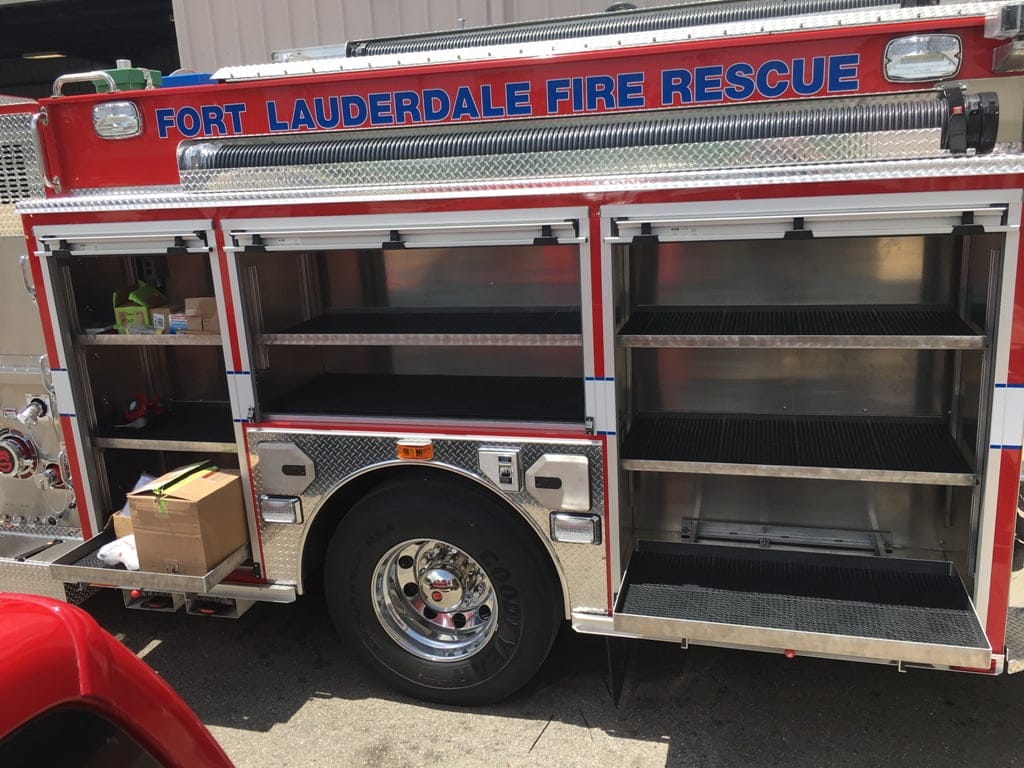

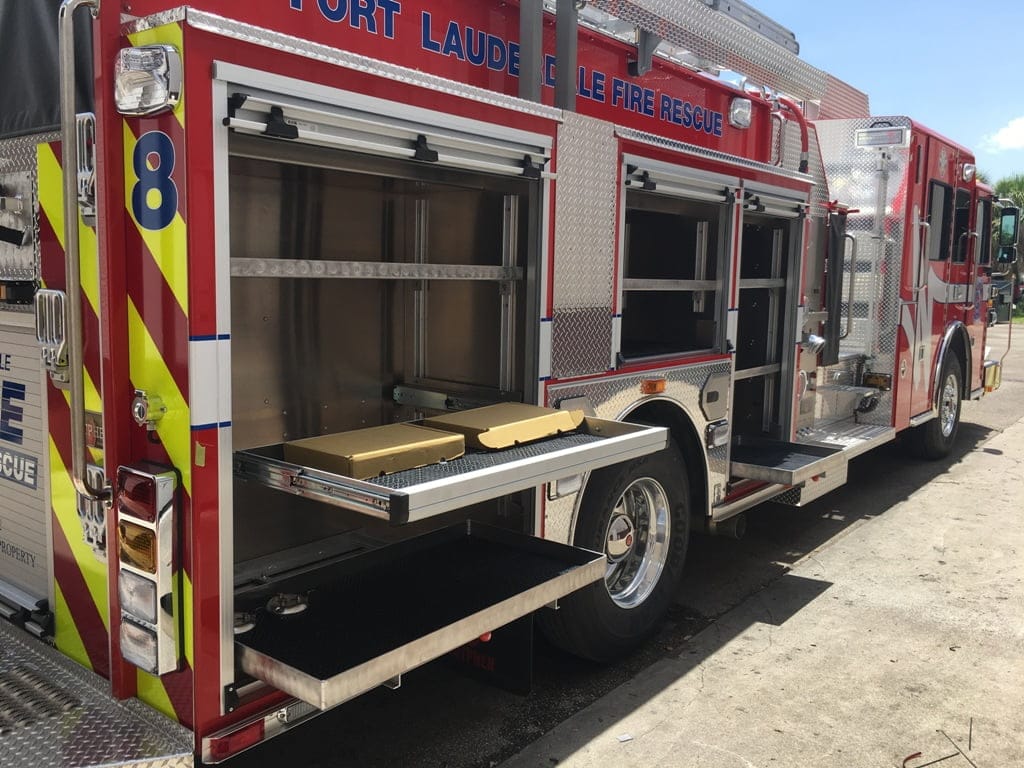

  • Over 264 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 3000W Honda Portable Generator
  • Hannay Electric Cord Reel, 200’ (1)
  • Federal Q2B Siren, Grille Mount
  • Brigade 360 Camera System
  • Whelen Freedom IV (12) LED Lightbar
  • FRC Spectra 12V LED Brow
  • FRC Spectra 12V LED Tele
  • Blind Spot Mirrors
  • RV AC Unit w/ Deflector
  • Storage for (3) NY Roof Hooks
