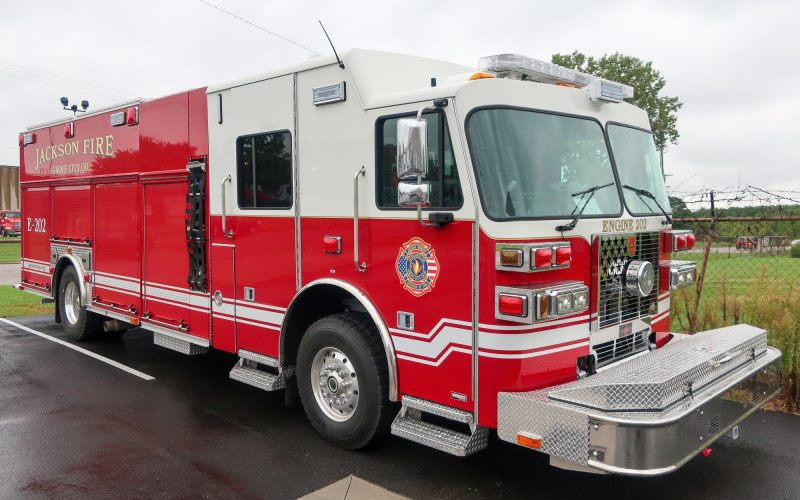

Delivery Date:
07/22/2021
Department Name:
Jackson Township Fire Department
Department City / State:
Grove City, OH

Sutphen Corporation – HS #6804

Dealer –  Heritage Fire Equipment

WHEELBASE: 223”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 35’ – 9 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 15” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12 455HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP:                 Waterous

  • CSU-1500, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlay: (2) 1 ½” and (1) 2 ½” w/ Liftout Tray
  • 750-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam System, FoamPro 2001, 2.6 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Painted Compartment Doors
  • Over 420 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package: 900A 24’ 2-Sec, 775A 14’ Roof & 10’ Folding
  • Body: PA-18 RES 56/53 Ladder Under Hosebed & Double Hatch

ADDITIONAL EQUIPMENT:

  • 30” Polished Stainless Steel
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Whelen Freedom IV 72” LED Lightbar (14 Module)
  • FR Spectra 12V Brow
  • FR Spectra 12V Scene
  • Whelen 900 Red LED
