Delivery Date:
07/15/2021
Department Name:
NE Champaign County Fire District
Department City / State:
Champaign County, OH
Truck Type:
Sutphen Corporation – HS #6826
Dealer – Heritage Fire Equipment
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32′ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73”cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlays: (2) 2” w/ Swivels & Poly Lift-Out Trays
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
BODY: Sutphen

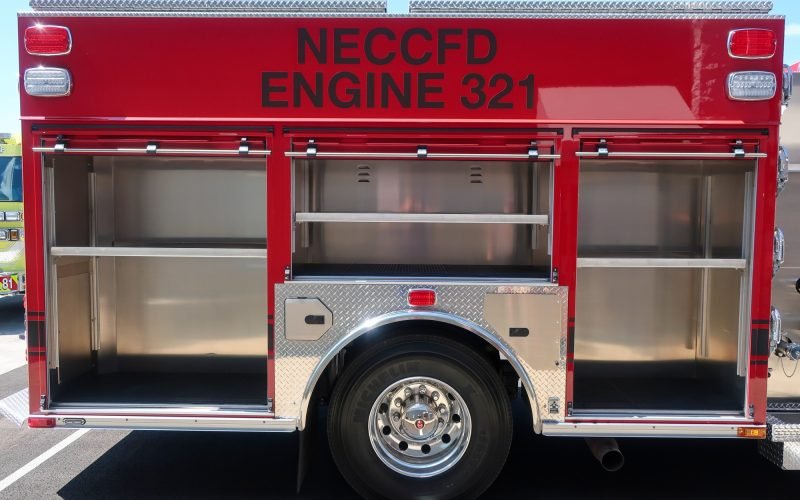

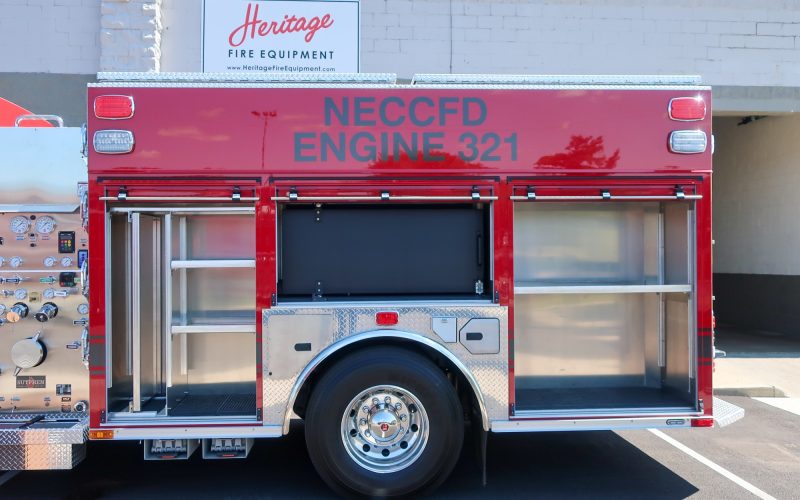

- Amdor Roll-Up Compartment Doors
- 294 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute w/ Suction Hose Storage
- Body: G-9 – Alum 40/51 Ladders Through the Tank
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC Inview Trueview
- Triple Air Bottle Compartments (2)
- Whelen PFH2 Brow Light
- Whelen Freedom LED Lightbar
- Whelen M9 Scene
