Delivery Date:
12/20/2020
Department Name:
Islamorada Fire Rescue
Department City / State:
Islamorada, FL

Sutphen Corporation – HS #6724

Dealer – South Florida Emergency Vehicles

WHEELBASE: 199”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 33’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 15” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension Firemaax 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1,500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper, (1) 2 ½” Front/Left of Main Hosebed, (1) Deck Gun 3”
  • Crosslays: (2) 2” w/ 1 ½” Swivels
  • 1500-Gallon Water Tank
  • 50 Gallon Foam tank

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • 193 cu. ft. Total Compartment Space

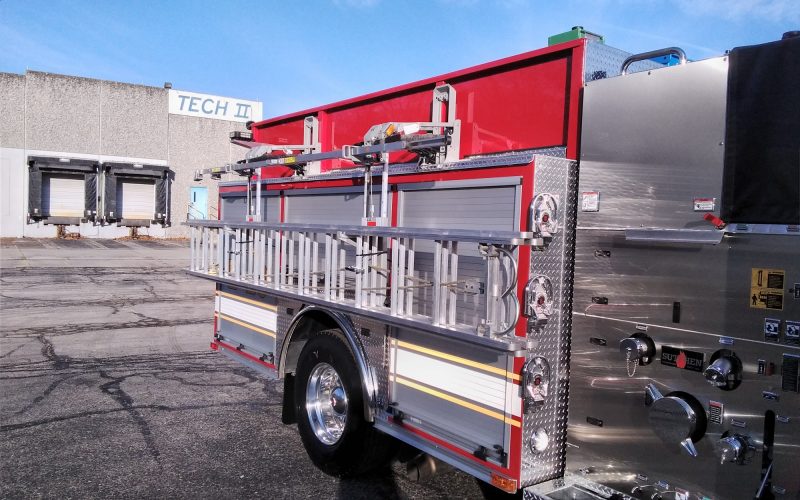

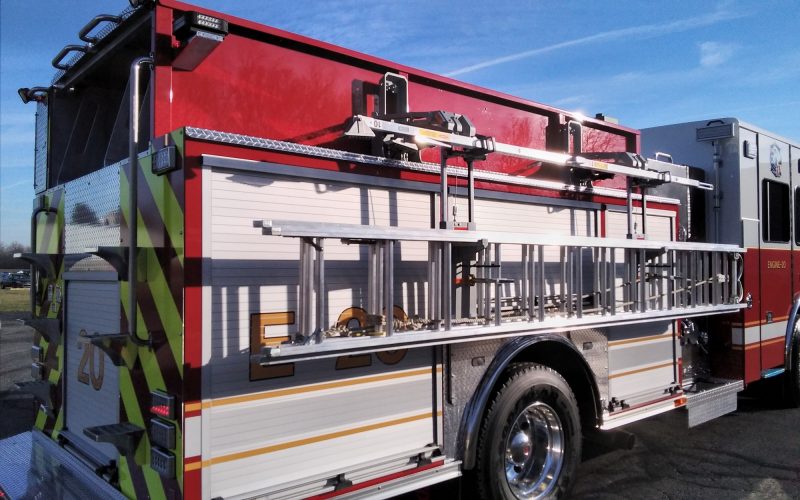

  • Ladder Package: Alco-Lite 24’ 2-section, 14’ Roof and 10’ Folding
  • Body: G-7 – Aluminum 40/51 Electric Ladder Rack

ADDITIONAL EQUIPMENT:

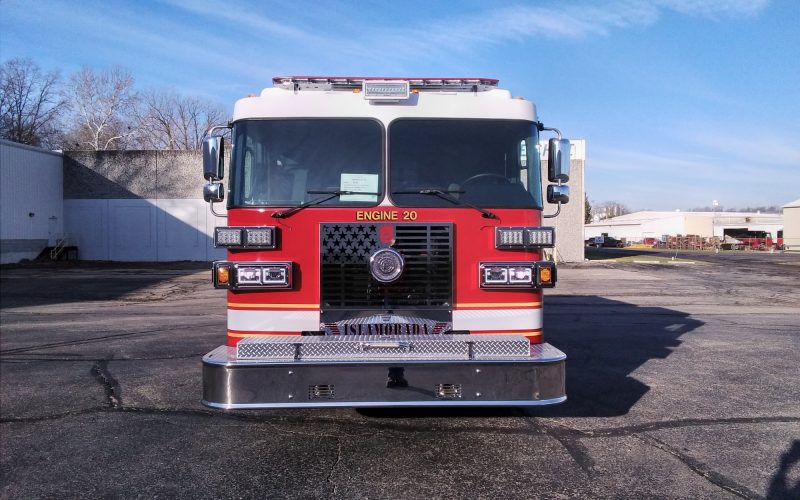

  • 24” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade 360 Camera System
  • Ziamatic Quic-Lift Electric Ladder Rack
  • FRC Spectra Brow Light
  • Sound Off NFUSE Warning Lightbar
  • FRC 900 LED Scene Lights
  • FRC Spectra Telescopic Lights
