Delivery Date:
12/20/2020
Department Name:
Hillsboro Fire Protection District
Department City / State:
Hillsboro MO

Sutphen Corporation – HS #6661

Dealer – Cashion Fire Equipment

WHEELBASE: 185”

TRAVEL HEIGHT: 10’ – 5”

TRAVEL LENGTH: 31’ – 8”

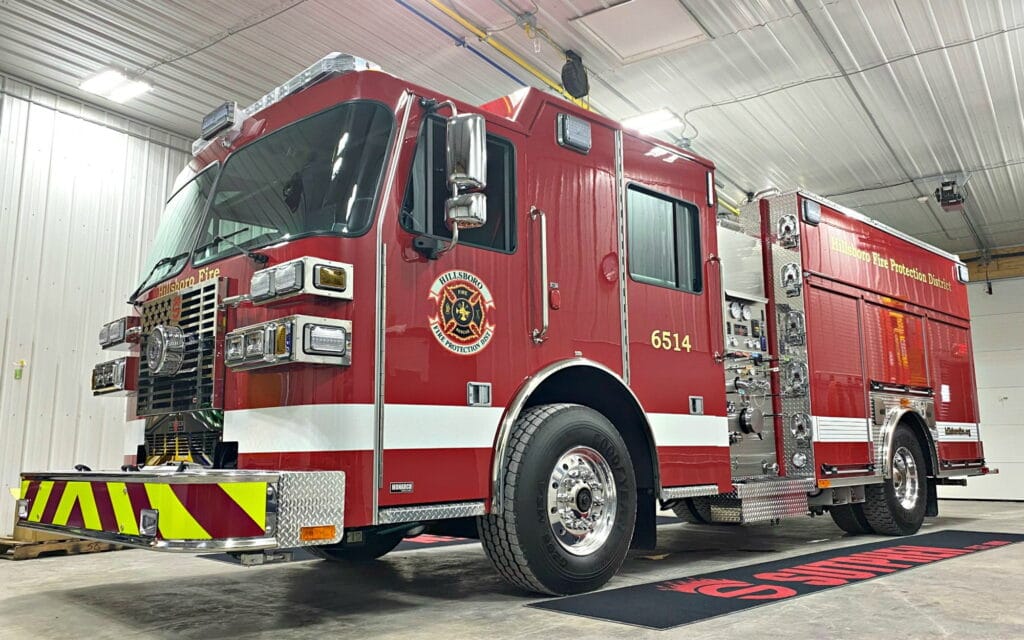

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Axle and Suspension 20,000 lbs, (4) 56” Leafs
  • Suspension Rear Firemaax 27,000 lbs, Air Ride
  • Engine: Cummins L 9, 450 HP
  • Alternator: C.E. Niehoff 360 AMP
  • Transmission: Allison Gen 5, EVS3000

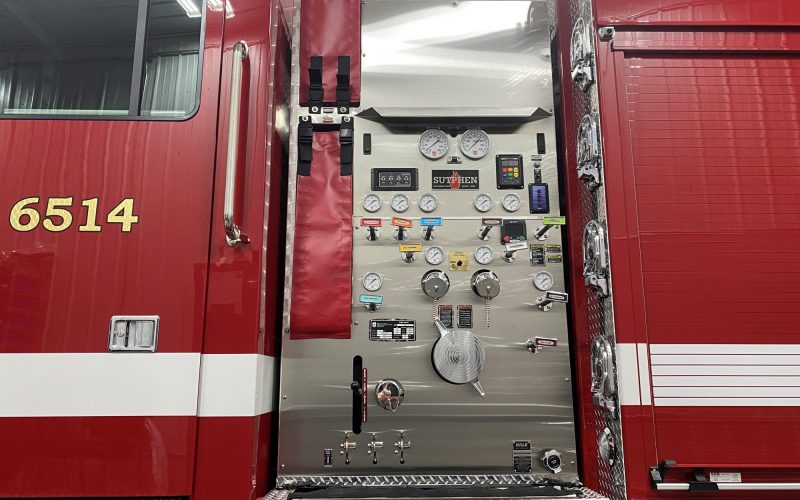

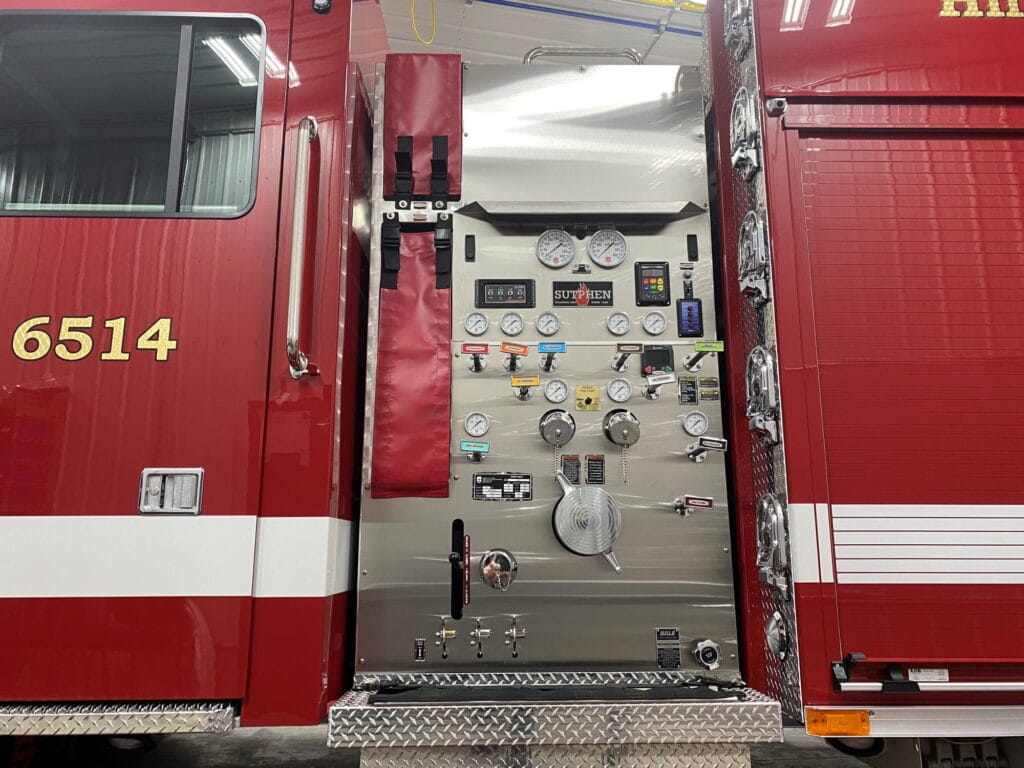

PUMP:                  Hale

  • QMAX-1,500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (1) 2 ½”
  • Speedlays: (2) 2” w/Swivels & Poly lift-out trays
  • 1000-Gallon Water Tank

BODY:                   Sutphen

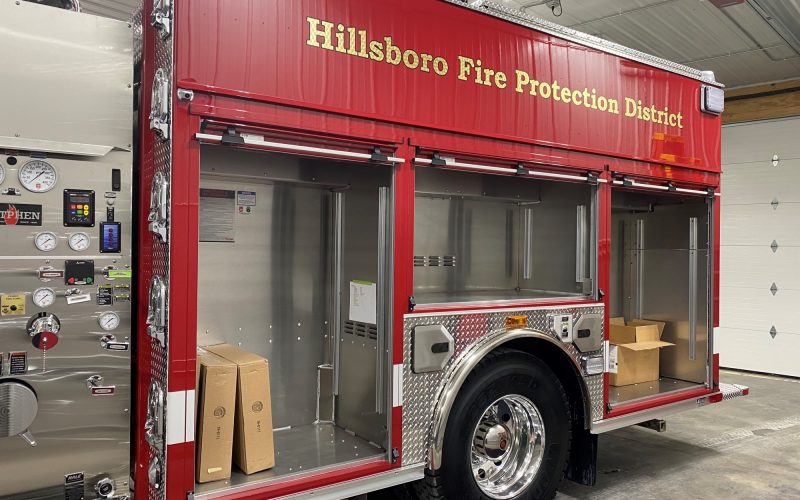

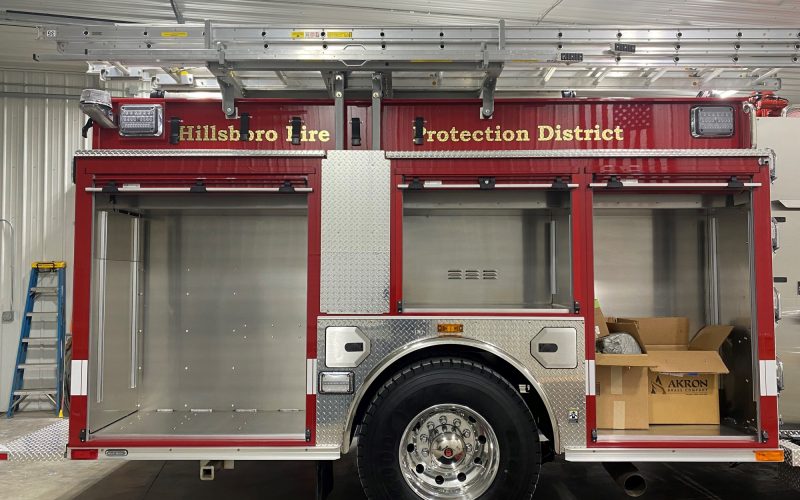

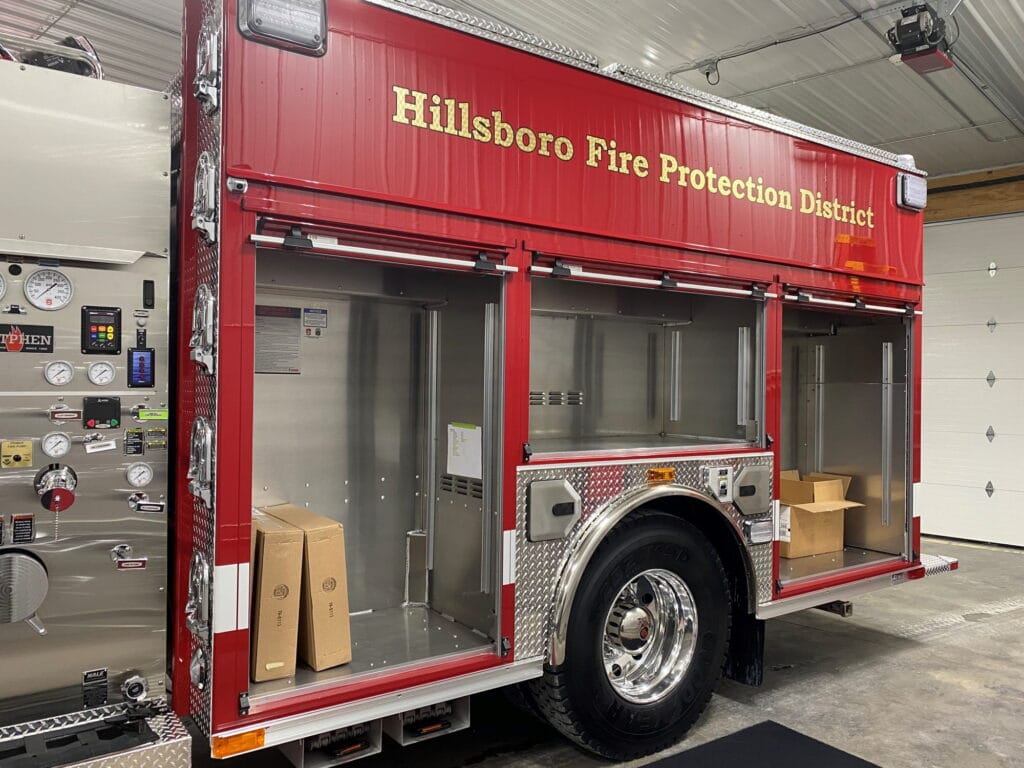

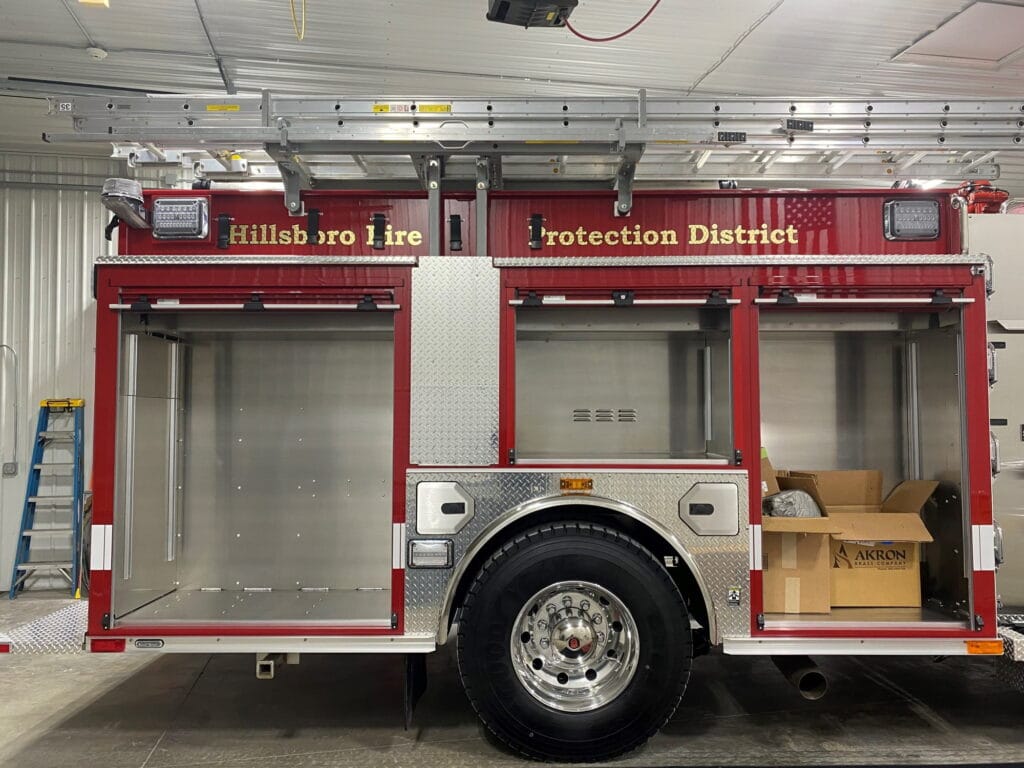

  • ROM Roll-Up Compartment Doors
  • Over 310 cu. ft. Total Compartment Space
  • ALCO-LITE Ladder (35’ 3-Section, 14’ Roof and 10’ Folding)
  • Body: S3/S6 Body

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Backeye 360
  • Whelen Freedom IV 72” LED Light Bar
  • FRC Spectra LED Brow Light
  • Whelen 900 LED Scene Lights
  • Whelen L31 LED Beacon
