Delivery Date:
12/20/2020
Department Name:
Racine Fire Department
Department City / State:
Racine, OH

Sutphen Corporation – HS #6722

Dealer – Heritage Fire Equipment

WHEELBASE: 215”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 34’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Axle and Suspension 19,000 lbs.
  • Suspension Rear Reyco 27,000 lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1,500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivels
  • 1000-Gallon Water Tank
  • 25 Gallon Foam Tank
  • Foam System: Hale Smartfoam 3.3

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space
  • Duo Safety Ladder Package (24’ 2-Section, 14’ Roof and 10’ Folding)
  • Body: G-9 – Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

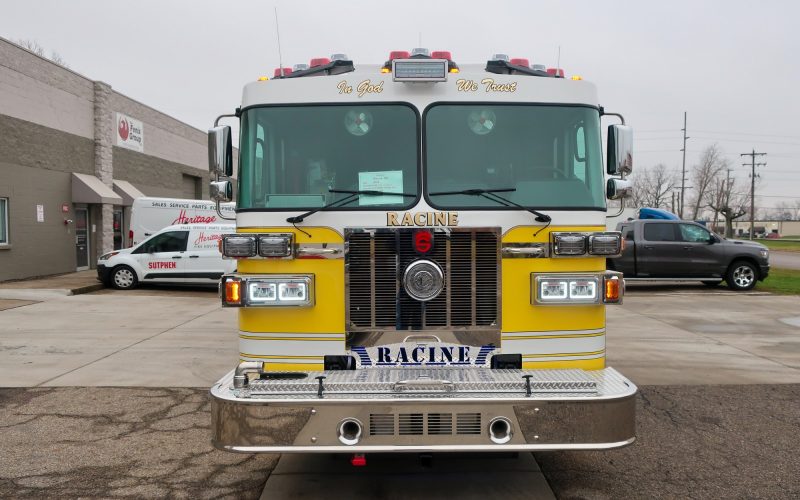

  • 24” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Inview Trueview Single Camera
  • FRC Spectra Brow Light
  • Federal Split Vision VSLR8 & VSLR3 LED Light Bars
  • FRC Spectra Telescopic Lights
  • Federal QL64 Red LEDs
  • Federal QL97 Red LEDs
  • Firetech Guardian Elite LED Scene Lights
