Delivery Date:
02/15/2019
Department Name:
Hope VFC
Department City / State:
Northern Cambria, PA

WHEEL BASE: 243”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 37’ – 5”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Eight-Person Cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 50,000 lbs
  • Engine: Cummins ISX 15, 600 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

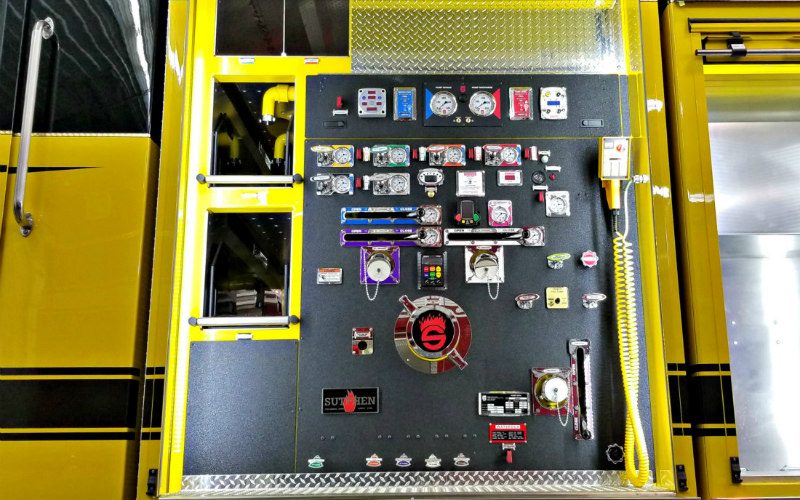

PUMP:                 Waterous

  • CSU-1250 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Deck Gun
  • 2,150-Gallon Water Tank
  • 50-Gallon Foam Tank
  • Monitor: Elkhart 8393 Stingray Manual with Shaper and Stacked Tips

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Doors
  • 163 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • 15KW Smart Power Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • Safety Vision SV-CLCD0-70, Camera System
  • 6” Bumper
  • Federal Q2B Siren
  • Whelen 900 Scene Light
  • Whelen Freedom LED Lightbar
  • Federal Q2B Siren
  • Whelen 900 Scene and Warning Lights
