Delivery Date:
02/15/2019
Department Name:
Fairborn Fire Department
Department City / State:
Fairborn, OH

Sutphen Corporation – HS #6274

WHEEL BASE: 185”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 31’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

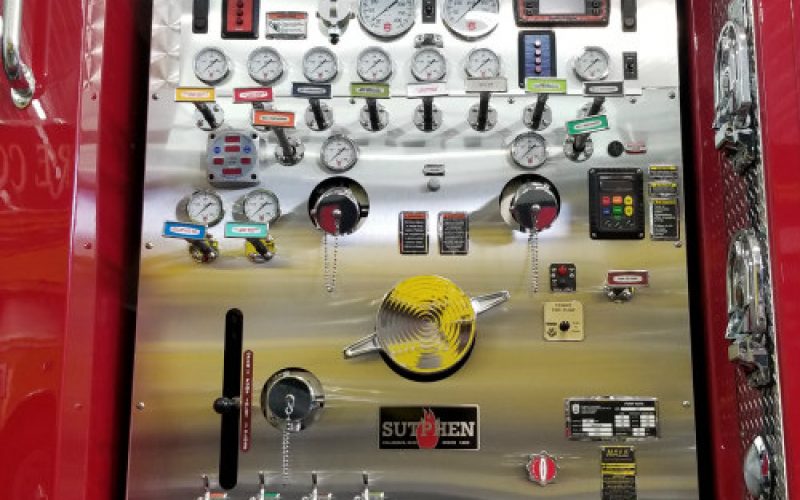

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 1 ½” & (1) 2 ½” with Swivels
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Foamlogix 2.1

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Doors
  • Over 357 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • FRC Spectra 12V LED Brow
  • FRC Spectra 12V LED Scene
  • Code 3 Pursuit 71” (28) LED Light Bar
  • Hannay Electronic Cord Reel, 150’ (1)
  • 18” Bumper
  • Federal Q2B Siren
  • Whelen 295HFS2, Electric Siren
  • Camera System, Safety Vision SV-CLCD0-70
