Delivery Date:
02/18/2021
Department Name:
Holmes Fire Department
Department City / State:
Millersburg, Ohio

Sutphen Corporation – HS #6704

Dealer – Herb Fire

WHEELBASE: 197”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 32’ – 7”

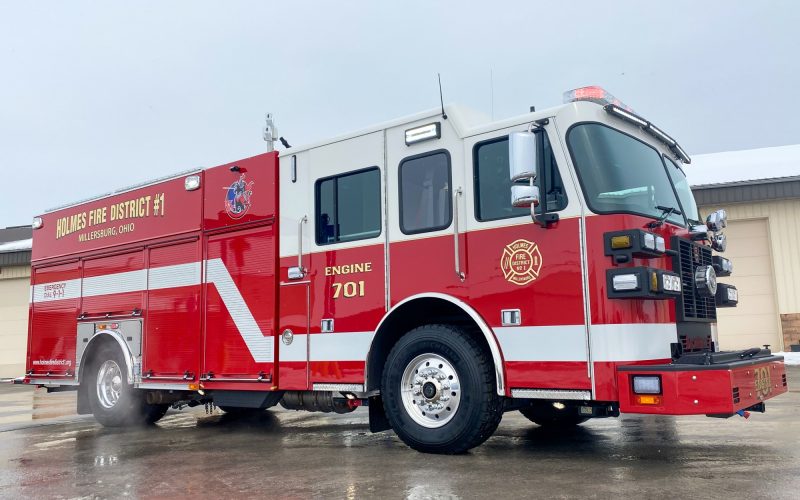

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” raised roof

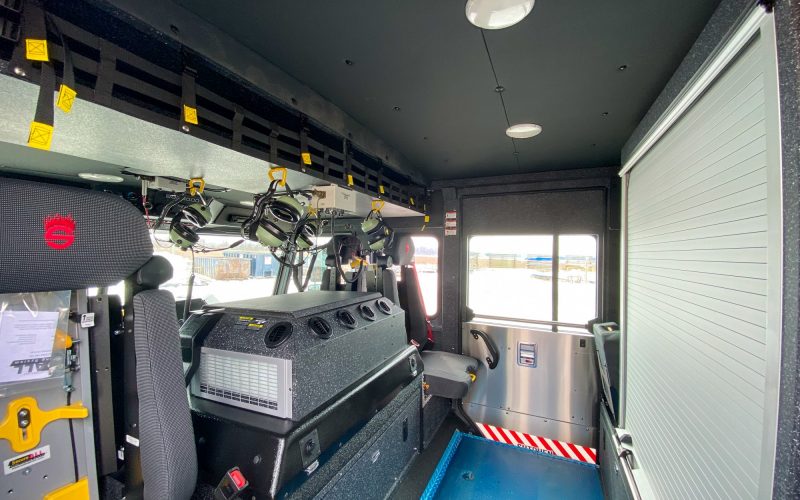

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS4000

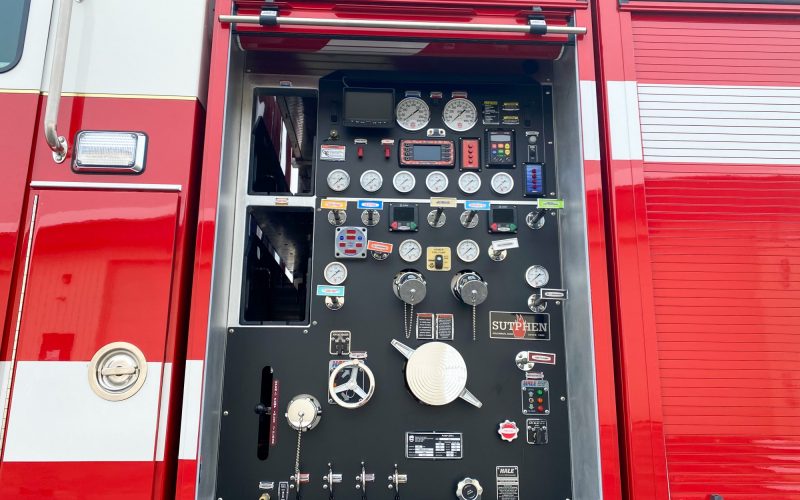

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivels and Poly Lift-Out Trays
  • 25-Gallon Foam Tank
  • Foam System: Hale SmartFoam 2.1A
  • 1,000-Gallon Water Tank

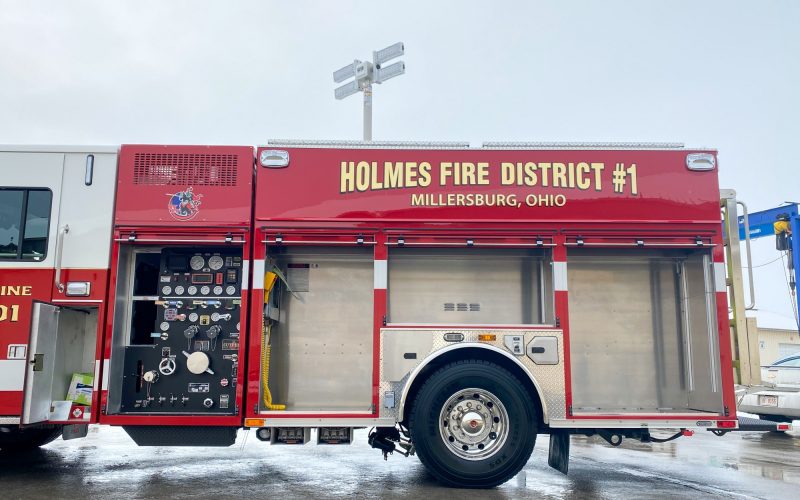

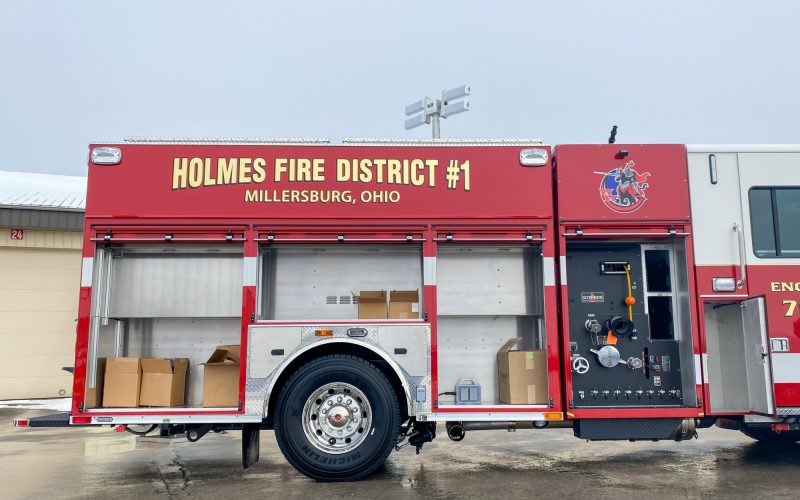

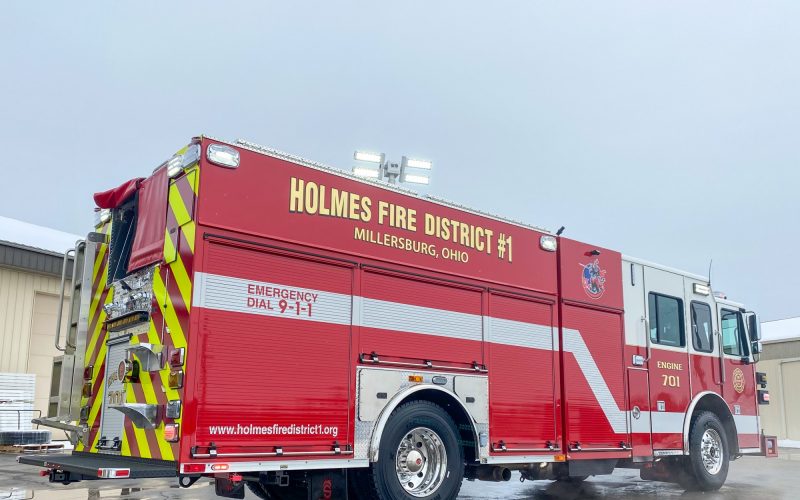

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 349 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: S6 – Alum 43/53 Ladder Chute and Double Hatch

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Generator: Smart Power 10KW
  • Hannay Electric Cord Reel, 100’ (1)
  • Roto-Ray Warning Light
  • Light Tower: Will-Burt Light Tower 12V
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen M9 LED Warning Lights
  • Whelen Traffic Advisor, LED TAL65 36”
  • FireTech 3-Piece 72” LED Brow
