Delivery Date:
01/01/2021
Department Name:
Southington Fire Department
Department City / State:
Southington, CT

Sutphen Corporation – HS #6679

WHEELBASE: 214”

TRAVEL HEIGHT: 10’ -1”

TRAVEL LENGTH: 34’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Axle and Suspension 23,000 lbs.
  • Suspension Rear Firemaax 31,000 lbs.
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS4000

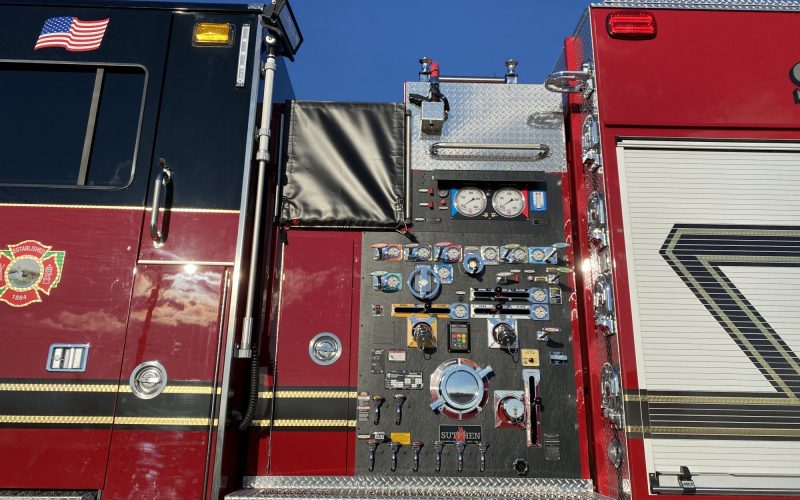

PUMP:                 Hale

  • QMAX-1,500 GPM 6”, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (2) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, 3” Deck Gun
  • Crosslays: (1) 2 ½”, (2) 2”
  • 750-Gallon Water Tank

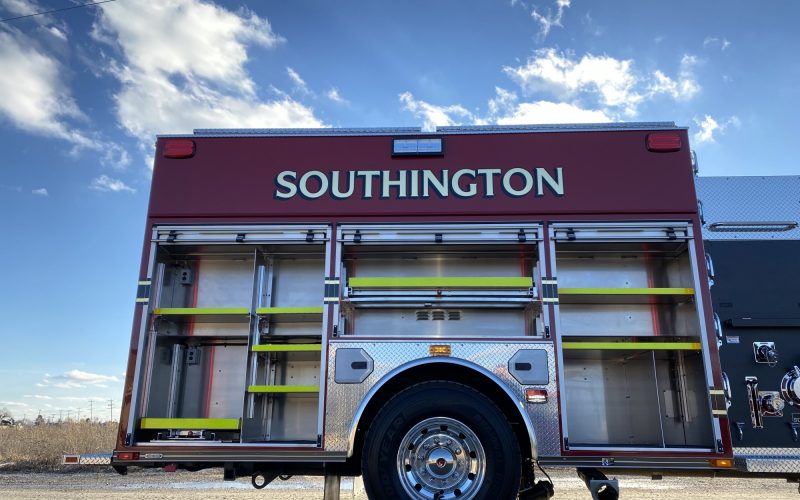

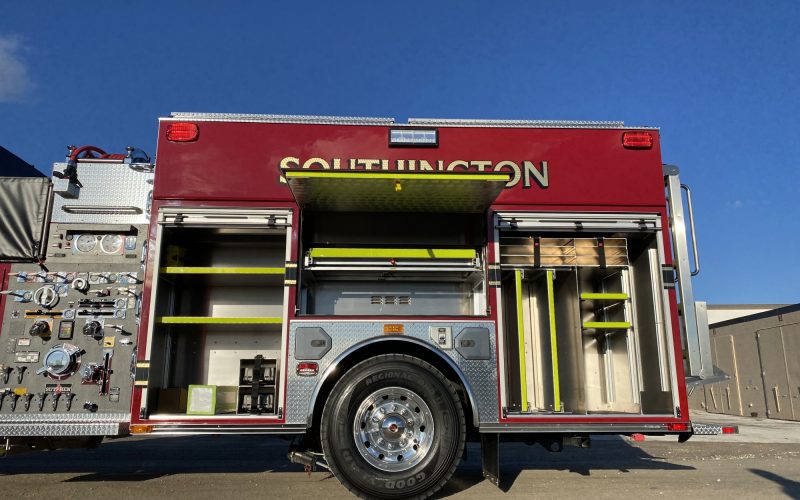

BODY:                  Sutphen

  • AMDOR Roll-Up Satin Finish Compartment Doors
  • 349 cu. ft. Total Compartment Space
  • Ladder Chute Placard
  • Body: PA-17

ADDITIONAL EQUIPMENT:

  • 18” Extreme Duty Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Voyager 3
  • Whelen 72” LED 14 Module Lightbar
  • Whelen PCPSM2 12V Scene Lights
  • Whelen 21” Mini LED Lightbar
