Delivery Date:
02/18/2021
Department Name:
Claremont Fire Department
Department City / State:
Claremont

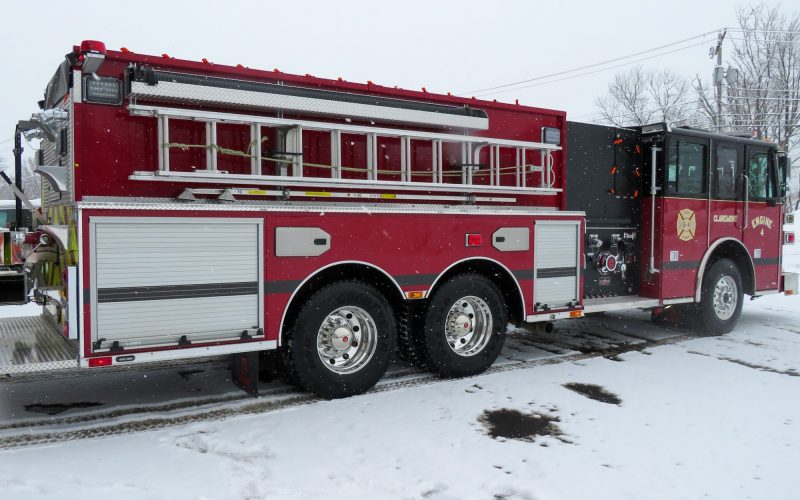

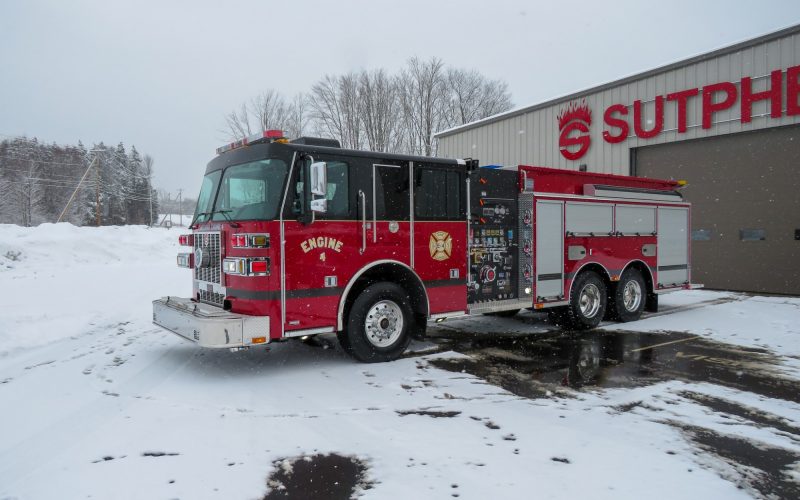

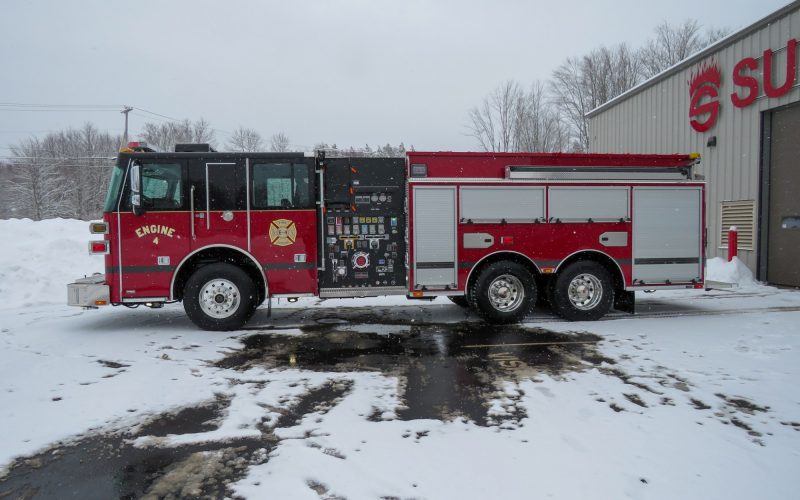

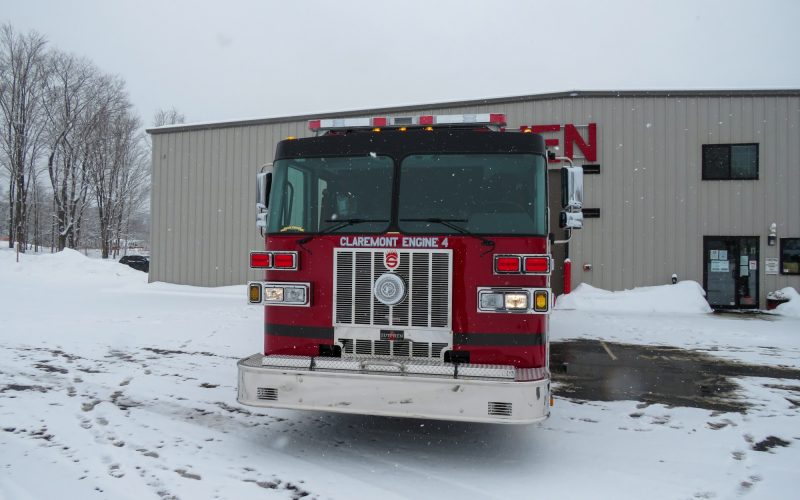

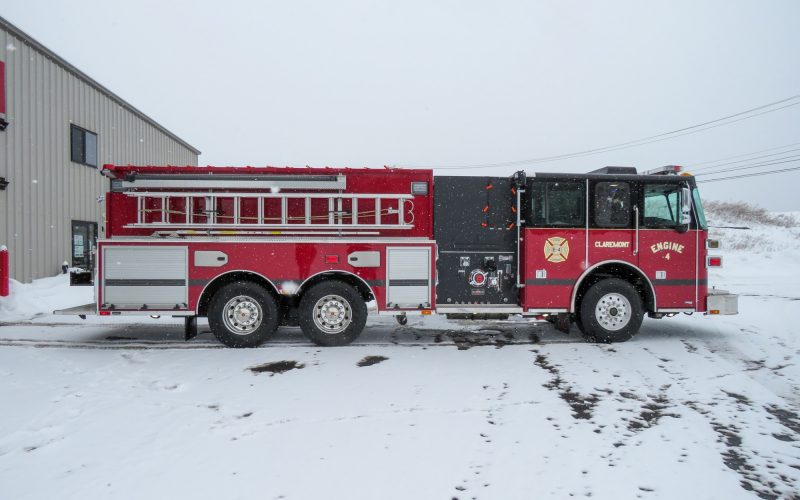

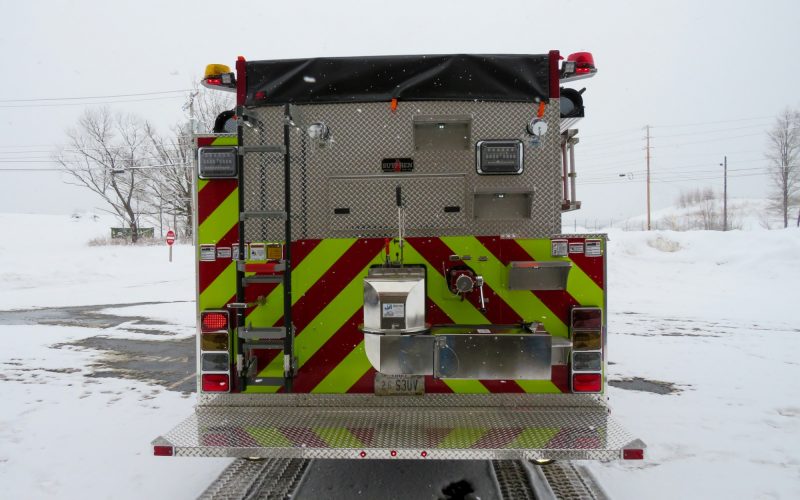

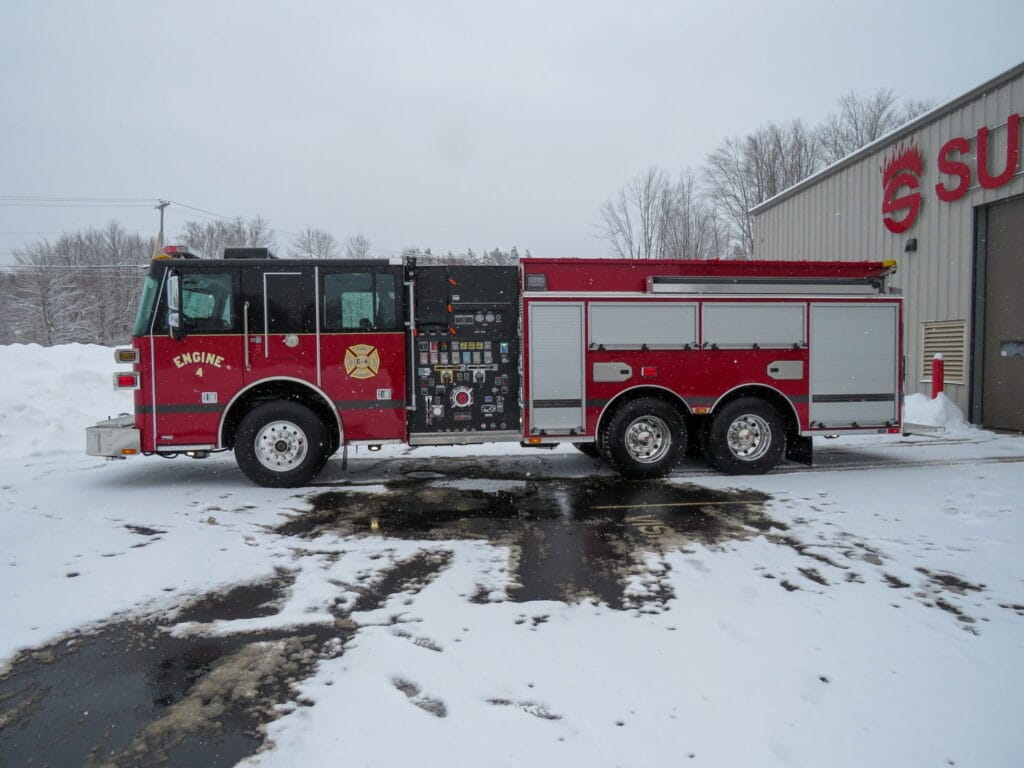

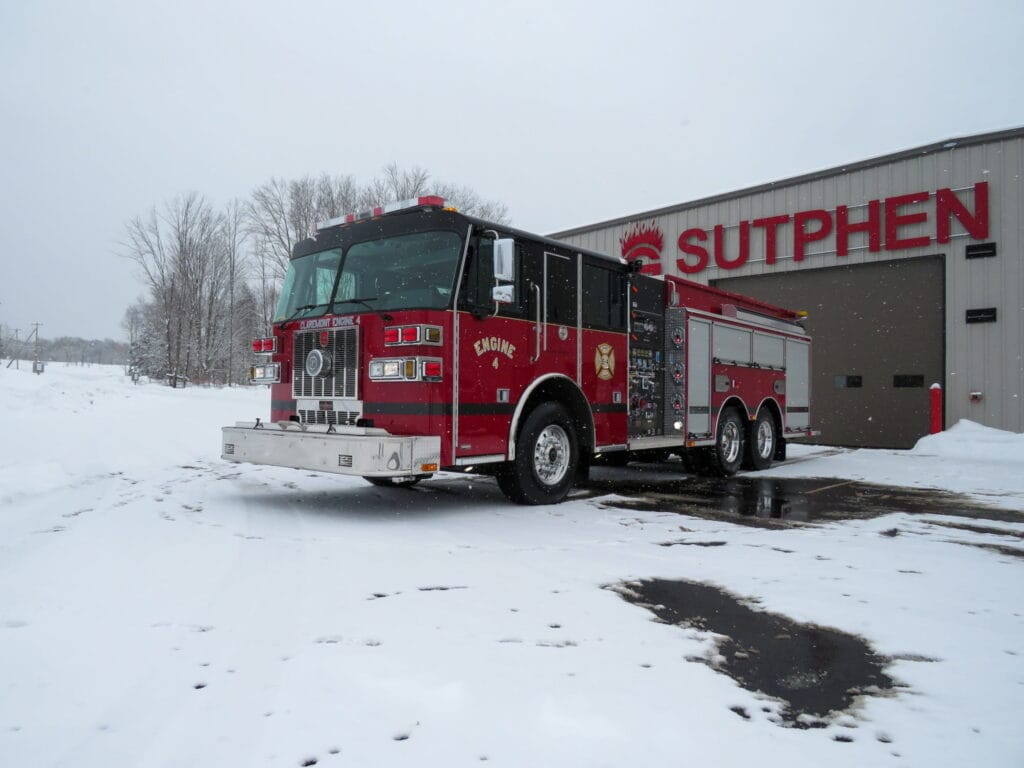

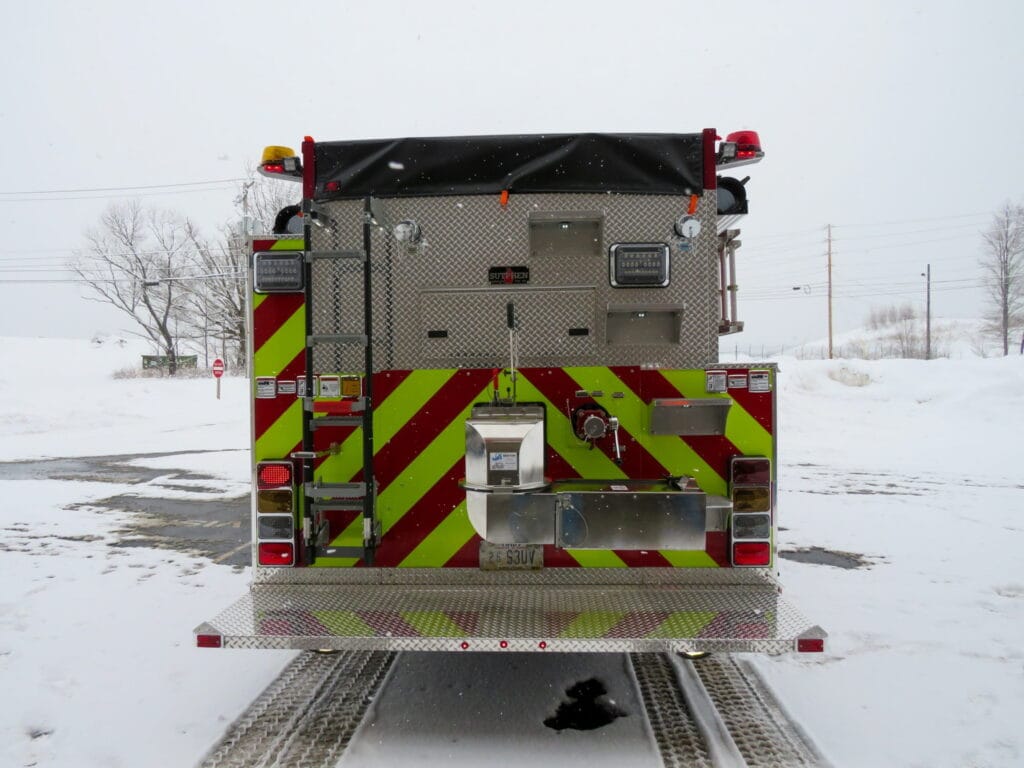

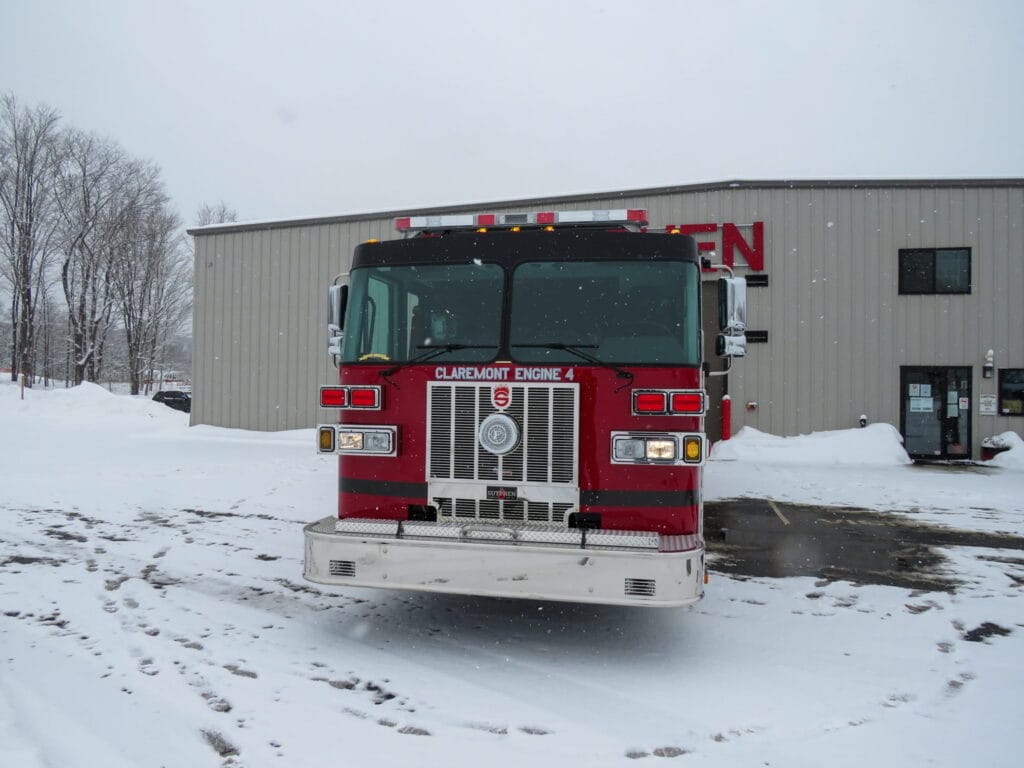

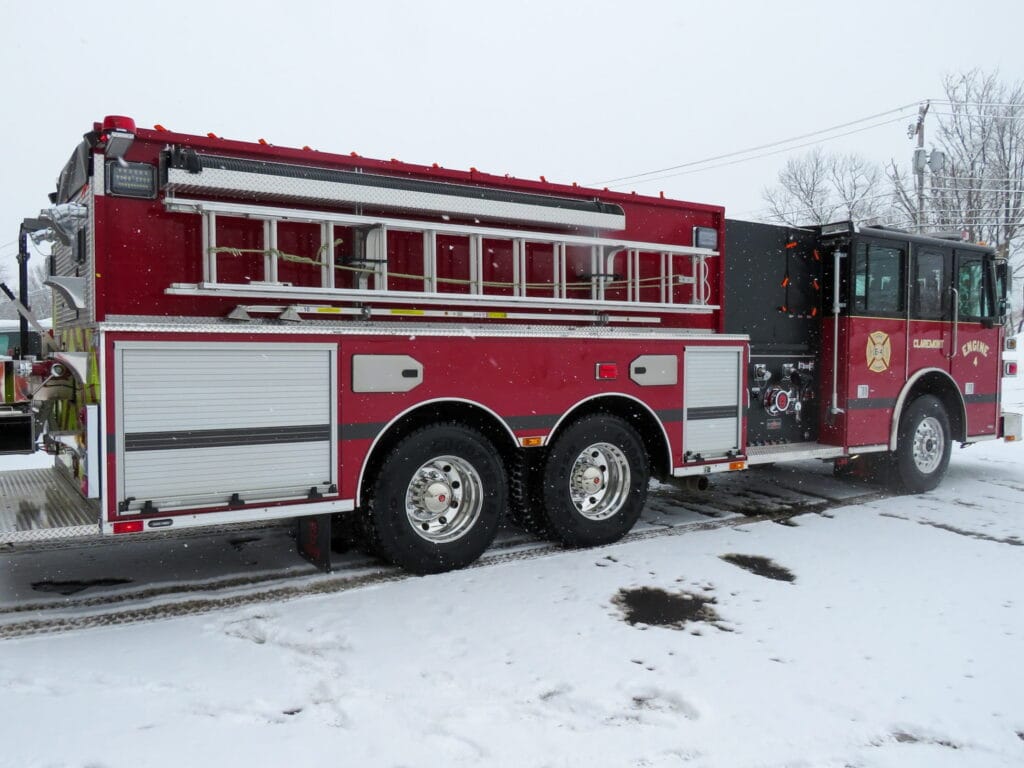

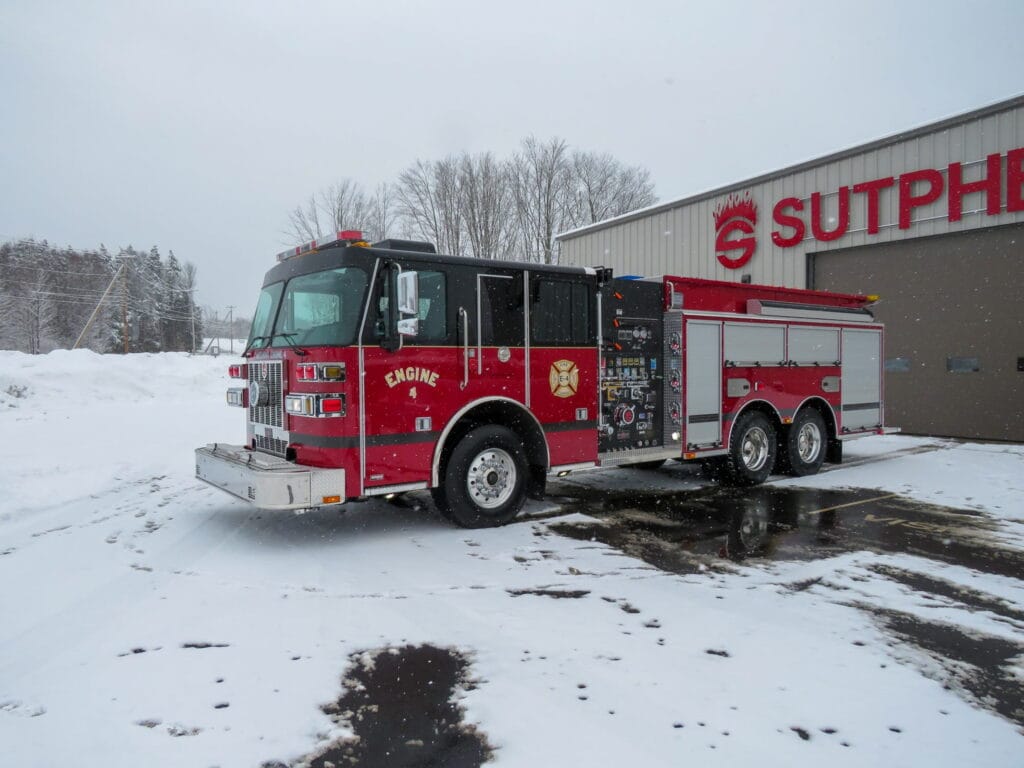

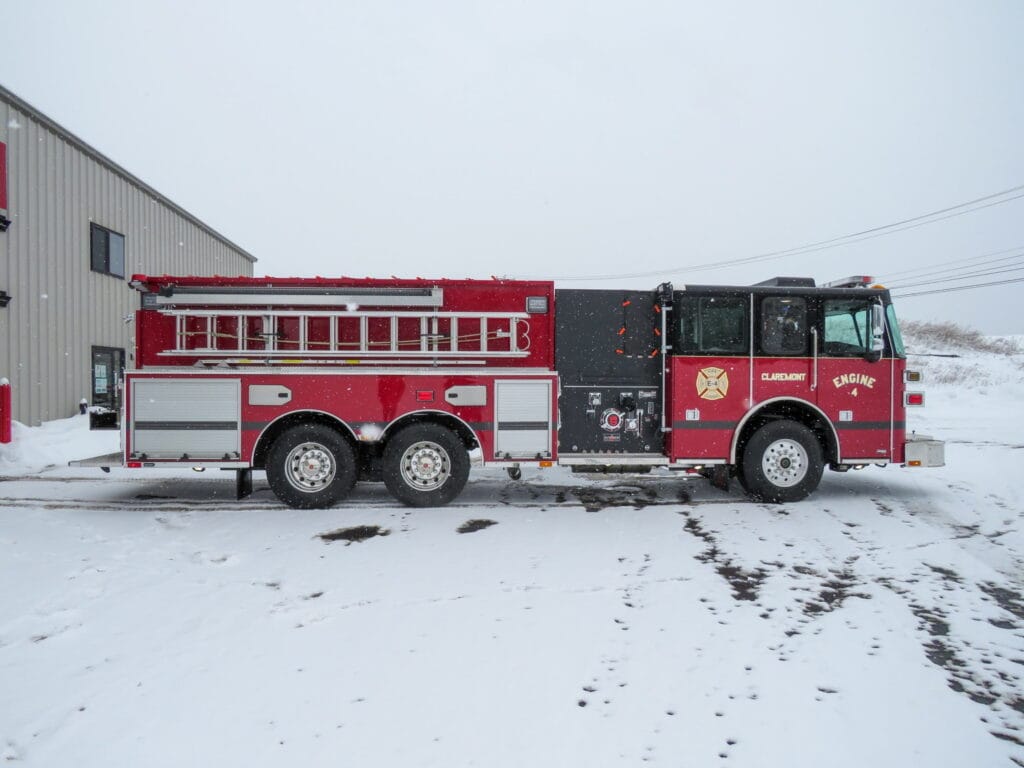

Sutphen Corporation – HS #6746

Dealer – Dingee Machine

WHEELBASE: 198”

TRAVEL HEIGHT: 9’ – 6 ½”

TRAVEL LENGTH: 35’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Flat Cab

  • Four-Door, Five-Person Cab
  • 10” Double Rails, Tandem Axle (110K PSI)
  • Front Suspension 20,000 lbs.
  • Rear suspension 52,000lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 270 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1,500 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½ Pipe to Left Rear, (1) 2 ½ Pipe to Right Rear, (1) 1 ½ Front Bumper
  • Crosslays: (1) 2 ½ Crosslay, 2 ½” Swivel & (2) 2” Crosslays with 1 ½ Swivel
  • 2000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: FoamPro 1600, 1.7 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • Over 120 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ & 10’ Folding)
  • Body: TA-02 Tanker 30/53 High/Low

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Newton Swivel Dump with Extension Chute
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen PFH Tele Lights
  • Whelen 600 LEDs
  • Whelen L31 Beacons
