Delivery Date:
12/20/2020
Department Name:
City of Columbus Division of Fire
Department City / State:
Columbus, OH

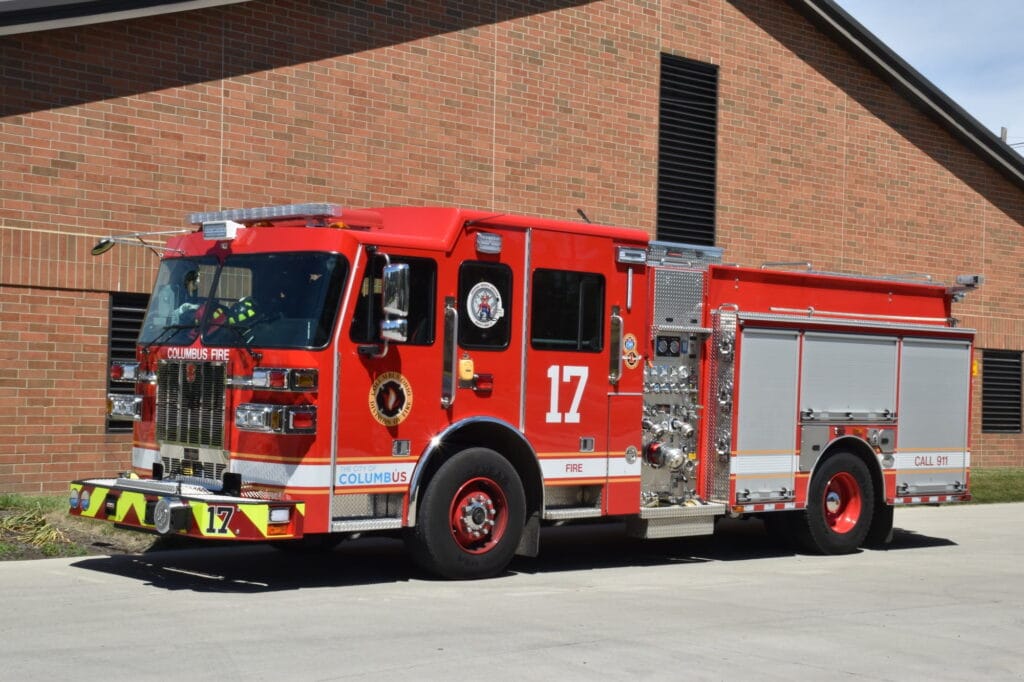

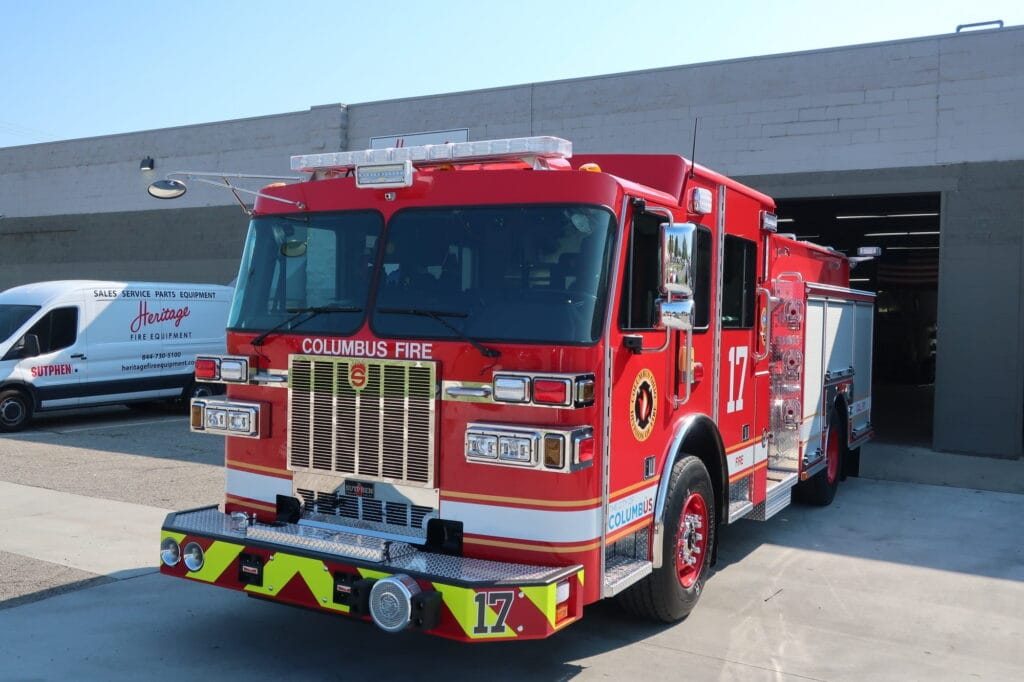

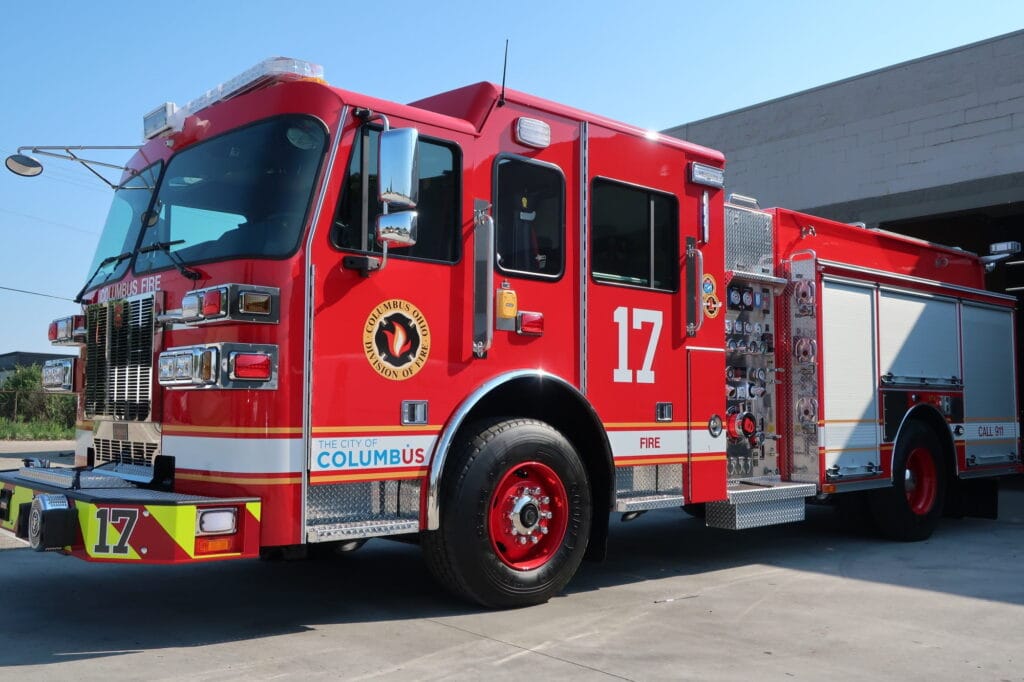

Sutphen Corporation – HS #6656/6657

Dealer – Heritage Fire Equipment

WHEELBASE: 187”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 31’ – 6”

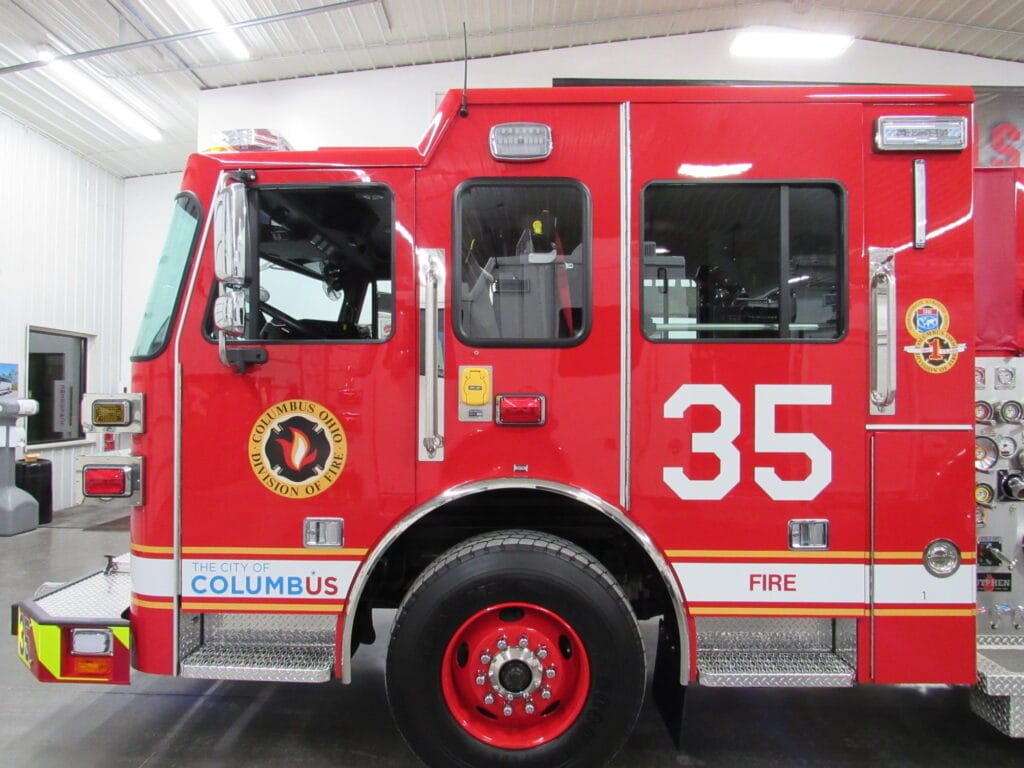

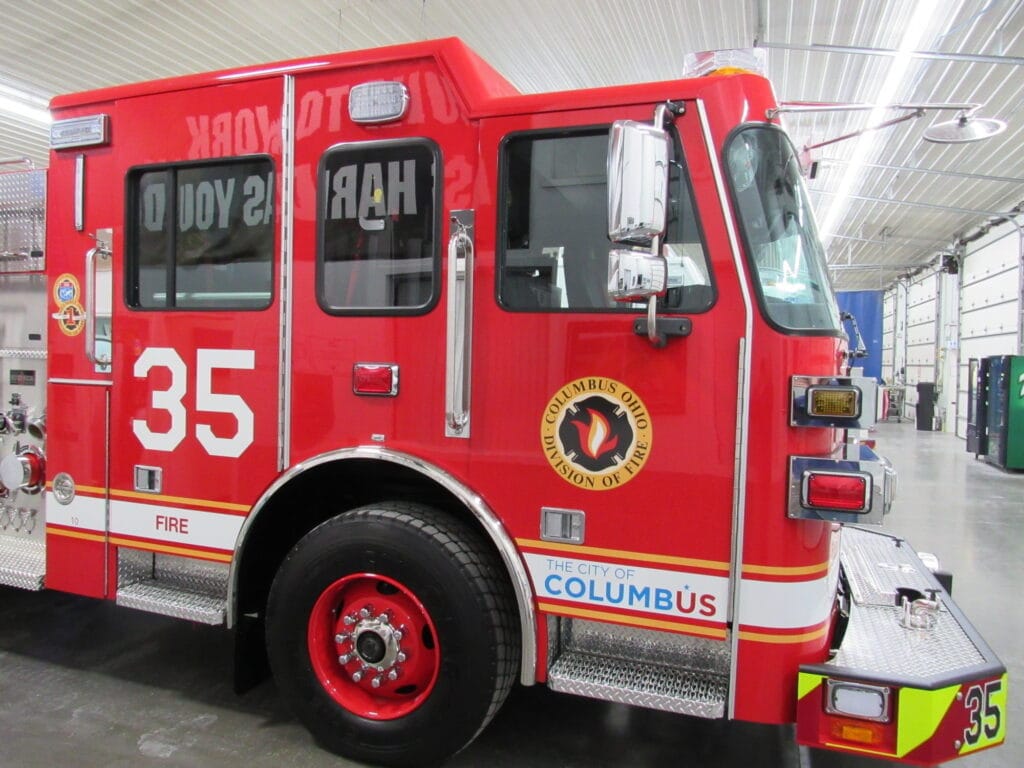

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

  • QMAX-1,500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 3” Right Rear, (2) 2” Front Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½” Valve-Piping w/ 2 ½” Swivel
  • 750-Gallon Water Tank

BODY:                   Sutphen

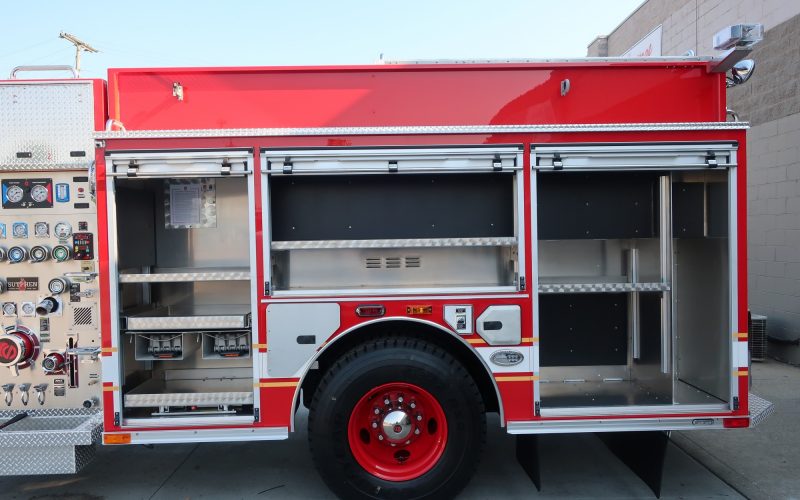

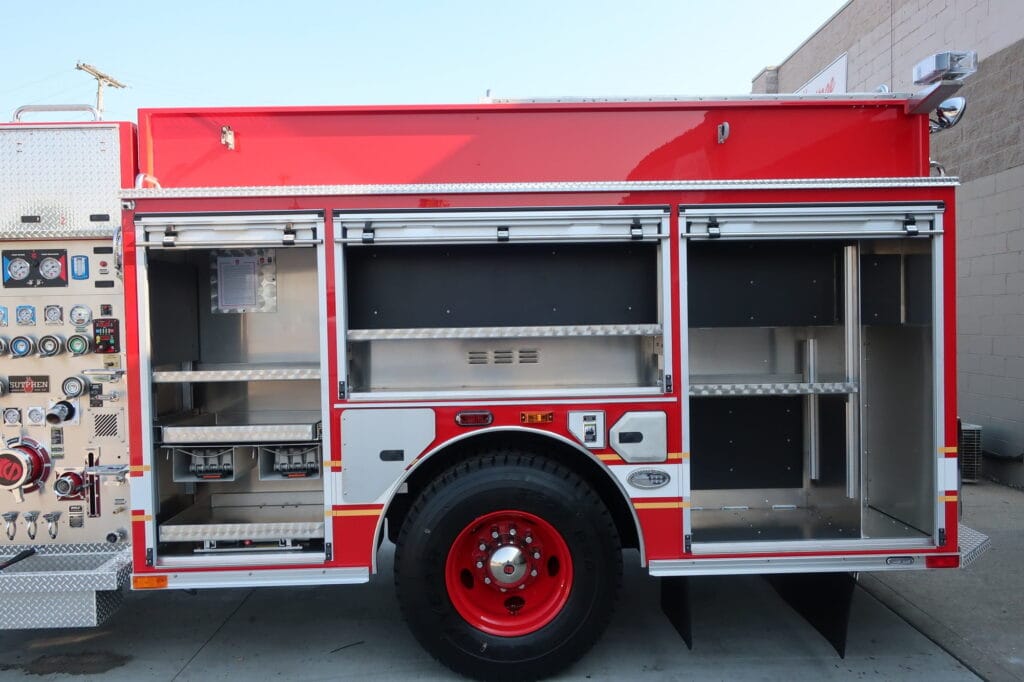

  • AMDOR Roll-Up Compartment Doors
  • Over 160 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (24’ 2-Section, 14’ Roof and 10’ Folding)
  • Body: PA-08 RES 36/48

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Backeye 360
  • 4 Bottle Compartments
  • FR Spectra 12v Brow Light
  • Whelen Mini Freedom Lightbar
  • Whelen M9 LED Scene Lights
  • 600 LED Red Warning Lights
  • FR Spectra 12v LED Lights
  • Whelen MCFLED Red Beacons
