Delivery Date:
04/12/2023
Department Name:

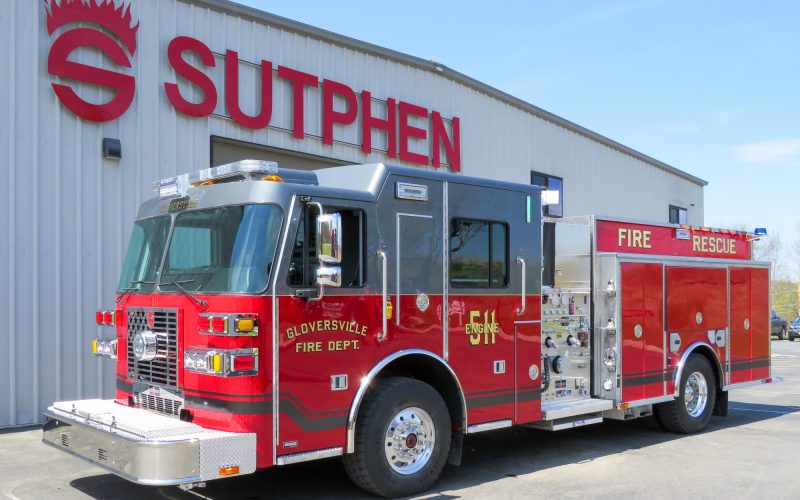

Gloversville Fire Department
Department City / State:
Gloversville, NY
Truck Type:
Dealer – Vander Molen Fire Apparatus Sales and Service
WHEELBASE: 200 ½”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 33′ – 5”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 31,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” w/ 4” Outlet Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” 1 ½” Swivel
- 1,000-Gallon Water Tank
BODY: Sutphen
- Huckbolted #304 Stainless Steel
- Hinged Compartment Doors
- Over 230 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: S2 – Stainless 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Booster Reel: 200’ of 1”
- FRC Spectra LEF Brow Light
- Whelen Freedom IV 72” LED Light Bar
- FRC Spectra Tele Lights
- FRC Spectra Scene Light (4)
- Whelen M9 Scene Light
- L31 Beacon
