Delivery Date:
05/02/2023
Department Name:
Parma Heights Fire Department
Department City / State:
Parma Heights, OH
Truck Type:
Dealer – Herb Fire
WHEELBASE: 196 ½”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 33′ – 0 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof

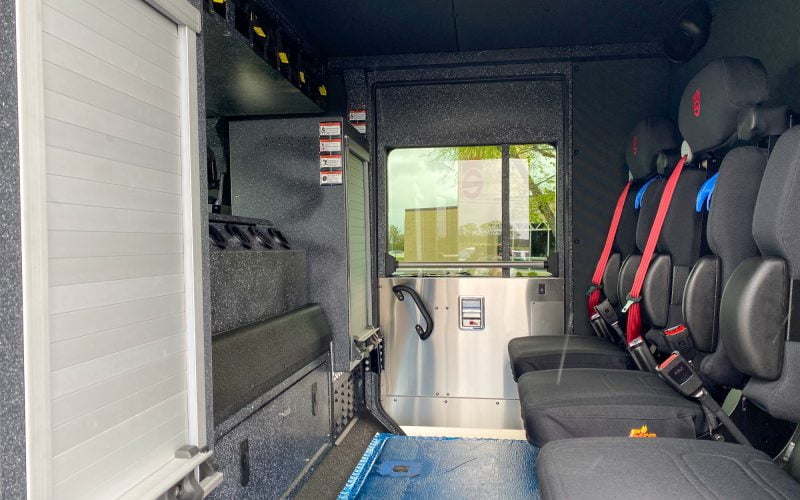

- Four-Door, Five-Person Cab
- 10” Single Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000

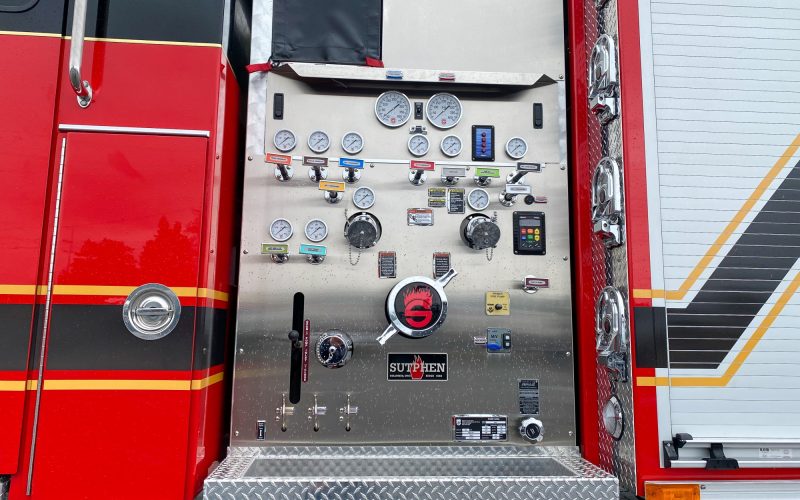

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 1 ½” & (1) 2 ½” w/ Swivels
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Over 215 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: S2M – Alum 43/53 Ladder Chute – Low Hosebed
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Go-Light
- Whelen Freedom IV 72” LED Light Bar
- FRC Spectra 12V LED Brow Light
- FRC 900 12V Scene Lights
