Delivery Date:
12/12/2019
Department Name:
Fort Valley Volunteer Fire Department
Department City / State:
Fort Valley, VA

Sutphen Corporation – HS #6374

Dealer – Ron Garber

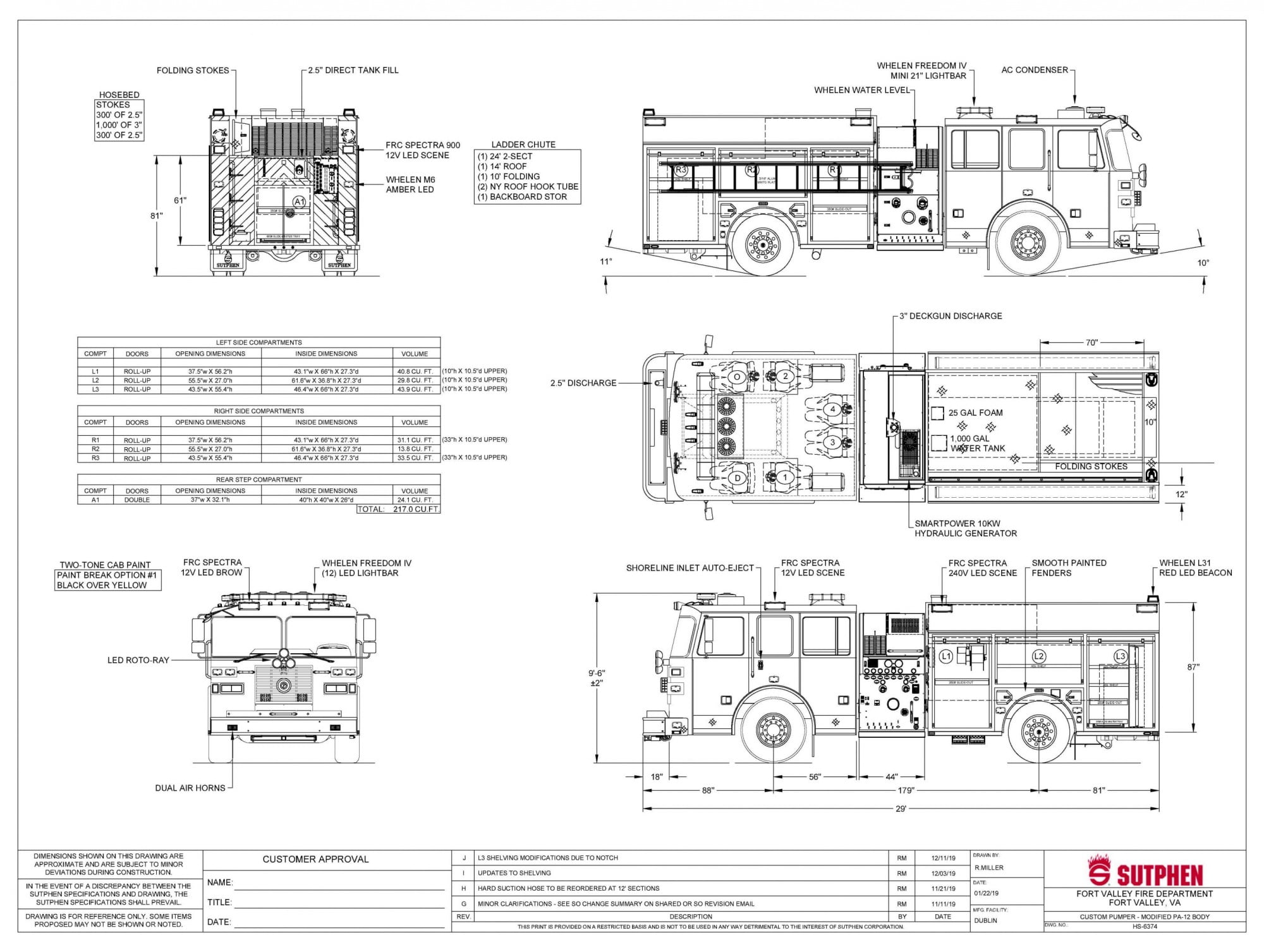

WHEEL BASE: 179”

TRAVEL HEIGHT: 9′ – 6”

TRAVEL LENGTH: 29’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff 360 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QFLO-1250 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • 1,000-Gallon Water Tank
  • 25-Gallon Foam Tank
  • FoamPro 2002, 5.0 GPM

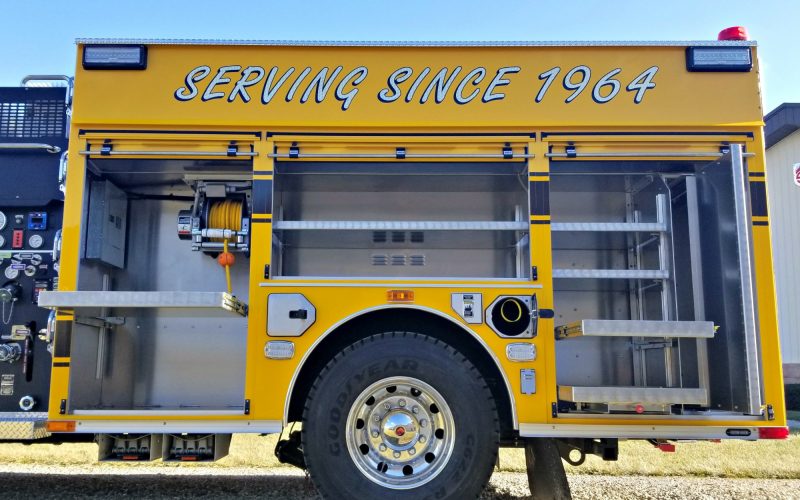

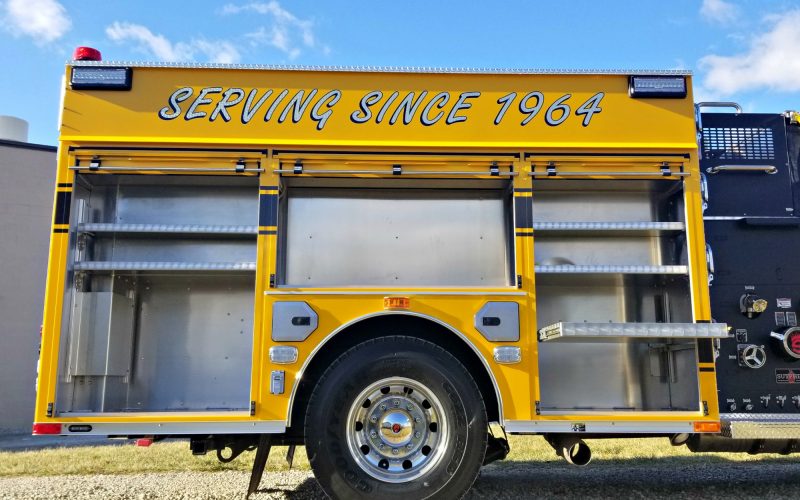

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 217 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24, 24’ 2-Section & PRL-14; 14’ Roof & 10’ Folding)
  • Ladder Chute

ADDITIONAL EQUIPMENT:

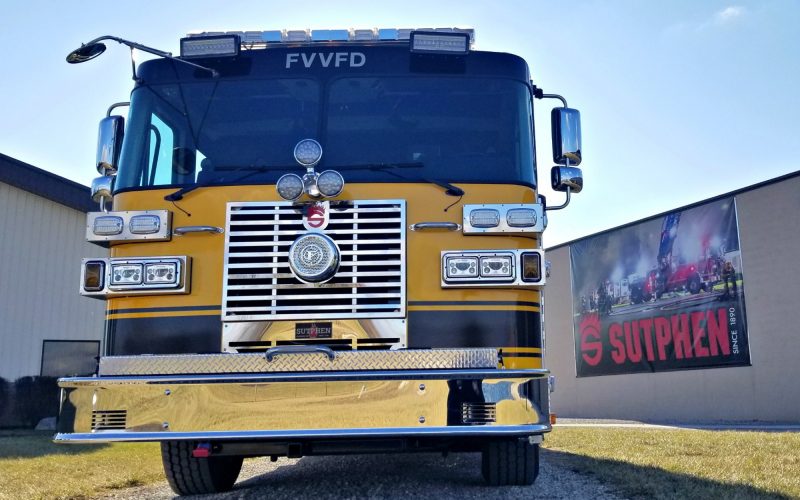

  • 18” Polished Stainless Steel Bumper
  • Brigade, Single Camera, Camera System
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • Smartpower 10KW Hydraulic Generator
  • Whelen Freedom IV 72” (12) Module LED Lightbar
  • Whelen Freedom IV Mini 21” Lightbar
  • FRC Spectra 12V LED Scene
  • FRC Spectra 12V LED Brow
  • FRC Spectra 240V LED Scene
