Delivery Date:
12/18/2019
Department Name:

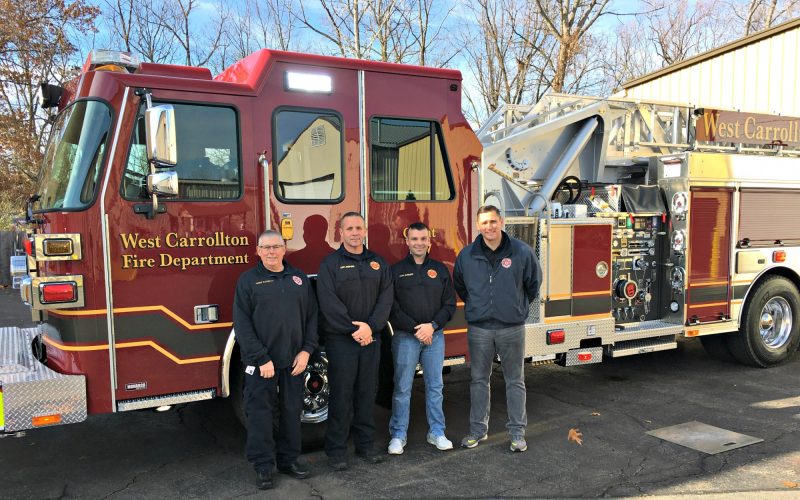

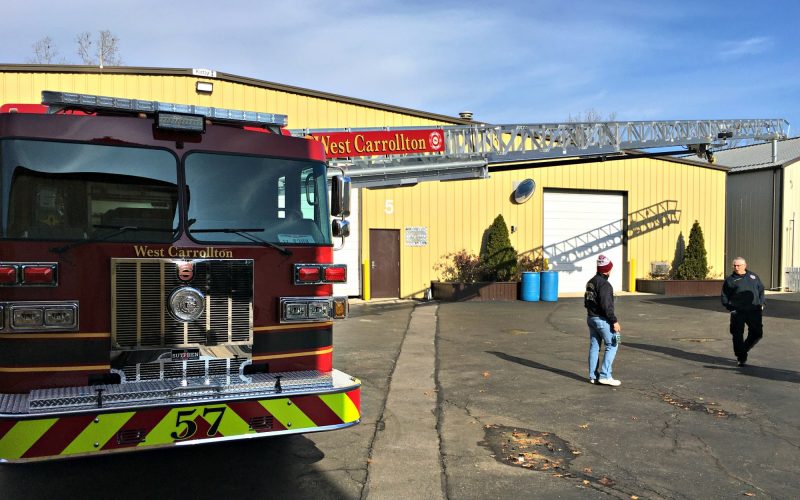

West Carrollton Fire Department
Department City / State:
West Carrollton, Ohio

Sutphen Corporation – HS #6504

Dealer – Heritage Fire Equipment

WHEEL BASE: 221”

TRAVEL HEIGHT: 10 – 0 ½”

TRAVEL LENGTH: 41’ – 0 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
  • Monitor: Elkhart 7250 Cobra EXM w/ SM1500E Nozzle
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank
  • FoamPro 1600, 1.7 GPM

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 190 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment (85’: 16’ Roof, 24’ 2-Section, 35’ 3-Section & 10’ Folding)
  • Body: SAA-4 Left High / Right Intermed / Transverse

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper Extension
  • FRC Inview 360, Camera System
  • FRC ACT 2-Station, Intercom System
  • 6KW Smart Power Generator
  • Hannay Electric Cord Reel, 175’ (1)
  • Pike Pole Storage Tubes (5)
  • Federal Q2B Siren, Grille Mounted
  • Whelen Freedom 4 Lightbar
  • FRC Spectra LED Brow Light
  • FR Spectra Scene Light
  • FRC Spectra 240 20K LED Scene Light
