Delivery Date:
12/19/2019
Department Name:
Tarkington Fire Department
Department City / State:
Cleveland, TX

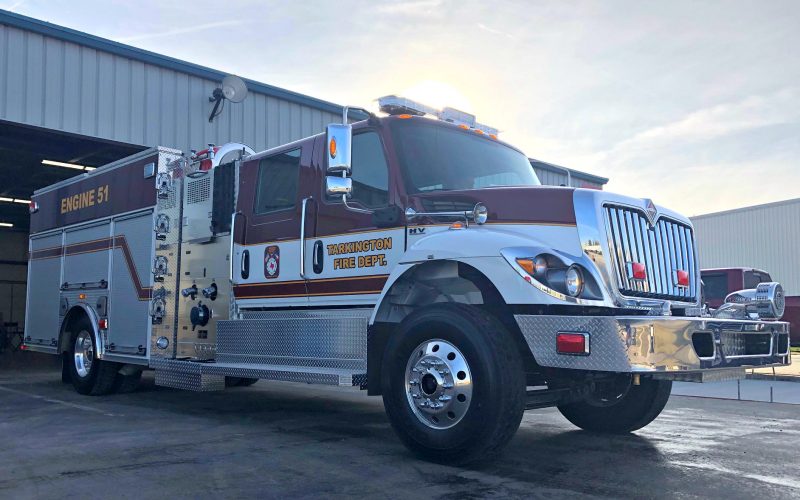

Truck Type:
Sutphen Corporation – HS #6513
WHEEL BASE: 234”
TRAVEL HEIGHT: 9’ – 9”
TRAVEL LENGTH: 33’ – 2”
CHASSIS: International Commercial Chassis – 4DR
- Four-Door, Four-Person Cab
- Front Axle and Suspension 14,000 lbs
- Rear Axle and Suspension 26,000 lbs
- Engine: Cummins L 9, 350 HP
- Alternator: Leece Neville, 325 AMP
- Transmission: EVS3000
PUMP: Hale
- QFLO-1250 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 1000-Gallon Water Tank
- 20-Gallon Foam Tank
- 30-Gallon Foam Tank
- Hale SmartFoam 5.0
- Crosslay: (2) 2” w/ 1 ½” Swivel

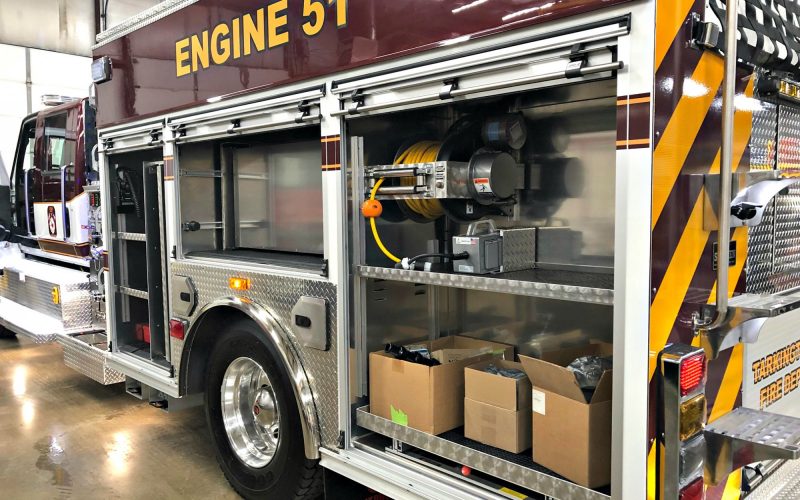

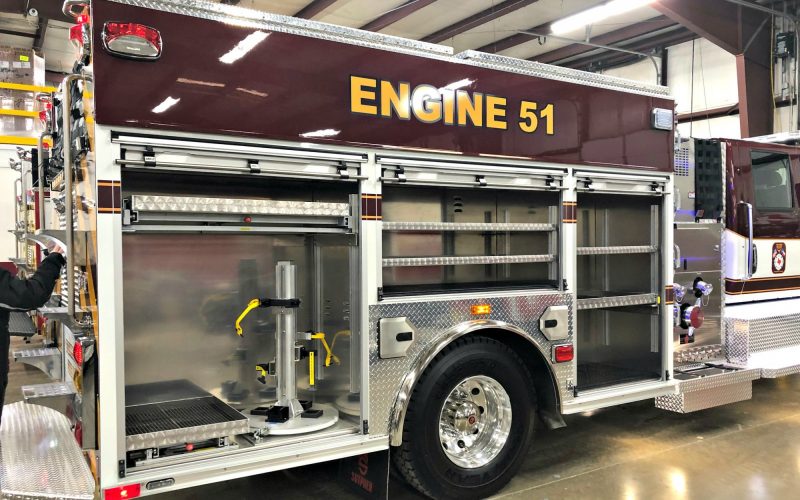

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 294 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute w/ Suction Hose Storage
- Body: G9 – Alum 40/51 Ladders Through the Tank
ADDITIONAL EQUIPMENT:
- 20” Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System, FRC, Inview Trueview, Single Camera
- Hannay Electric Cord Reel, 200’ (1)
- 8KW Harrison Generator
- Whelen PFH2 Built-In Brow Light
- Whelen Freedom LED Lightbar
- Whelen M9V2 Red LED Warning/Scene Lights
- Whelen LED Traffic Advisor
- FRC 900 LED Scene Lights
