Delivery Date:
04/22/2020
Department Name:
Fort Lauderdale Fire Rescue
Department City / State:
Fort Lauderdale, FL

WHEELBASE: 200”

TRAVEL HEIGHT: 10’ – 9”

TRAVEL LENGTH: 33’ – 7 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” raised roof

  • Four-Door, five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension STEERTEK 23,000 lbs
  • Rear Axle and Suspension Firemax 27,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Niehoff, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

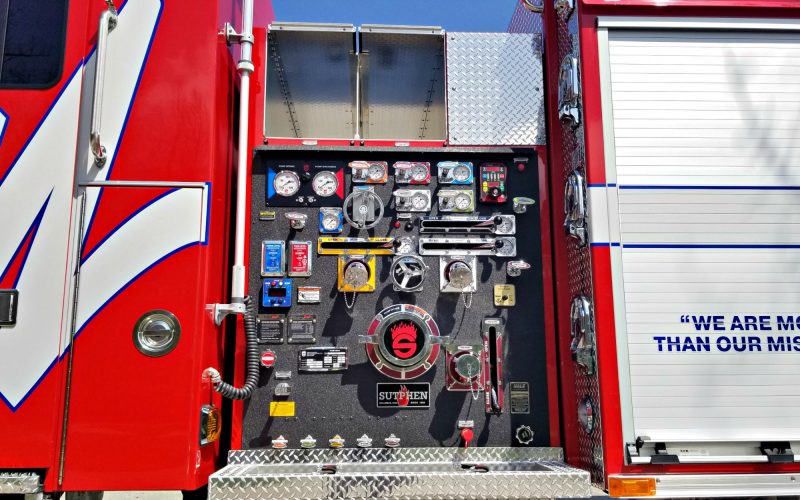

PUMP:                 Hale

  • QTWO-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 3” Deck Gun
  • Crosslay: (2) 2” w/ 1 ½” Swivel
  • 712-Gallon Water Tank
  • 30-Gallon Foam Tank
  • FoamPro 2002, 5.0 GPM

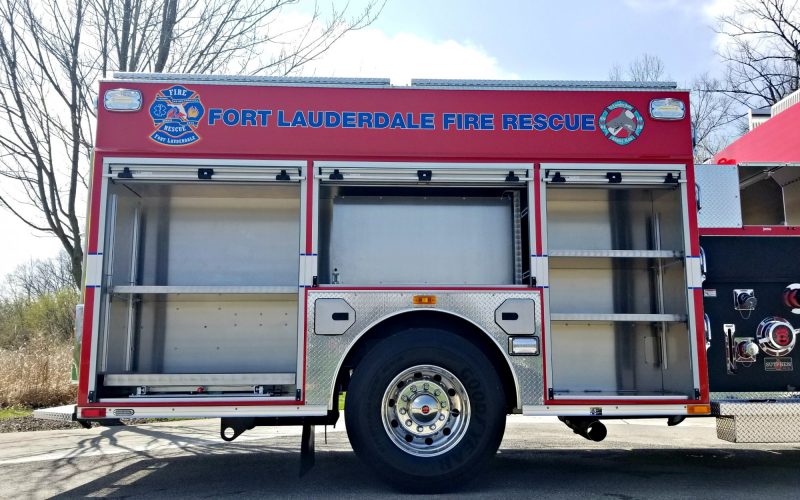

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • Over 300 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute
  • Body: PA-19, Red 43/53, Ladders Thru Tank

ADDITIONAL EQUIPMENT:

  • 30” Formed Steel Channel, Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade 360

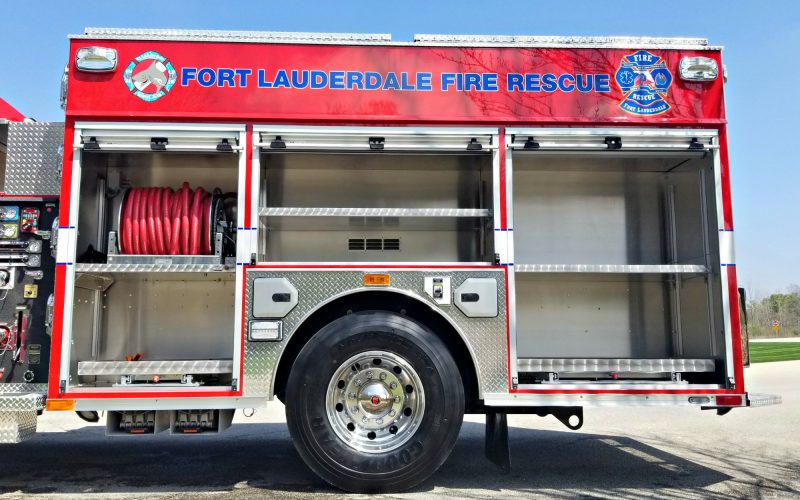

  • Hannay Booster Reel w/ 200’ of 1” Hose
  • AC Condenser
  • Whelen Freedom IV (12) LED Lightbar
  • Whelen M9V2 Combo LED
  • Whelen Traffic Advisor
  • FRC Spectra 12V LED Brow
