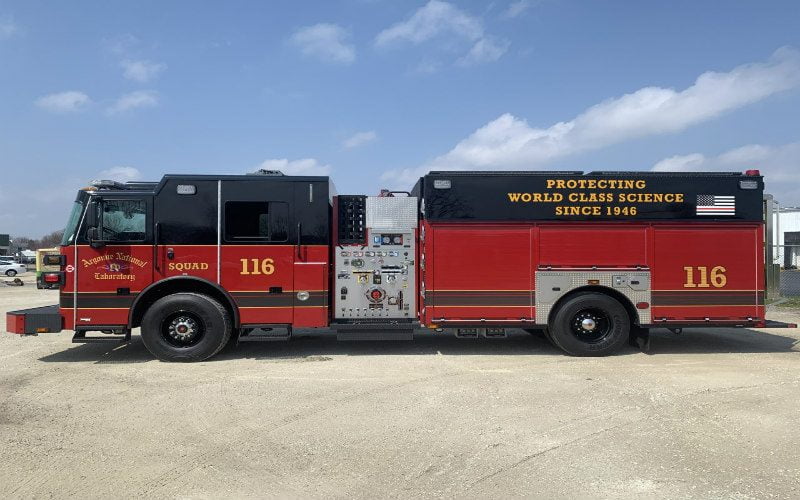

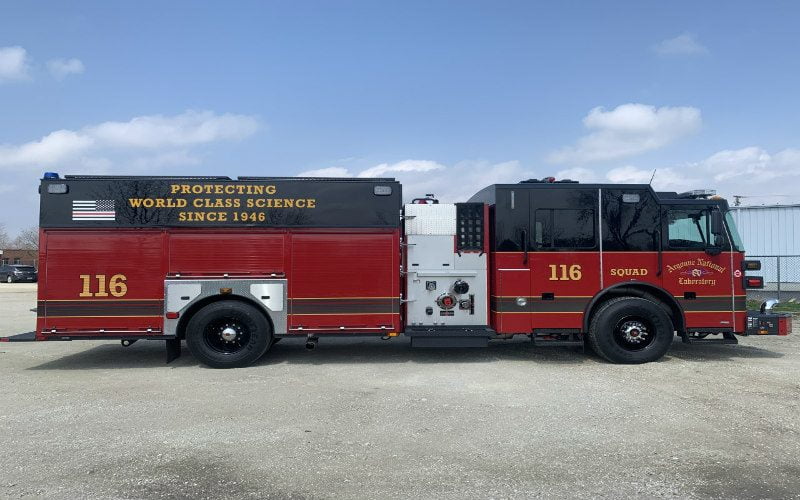

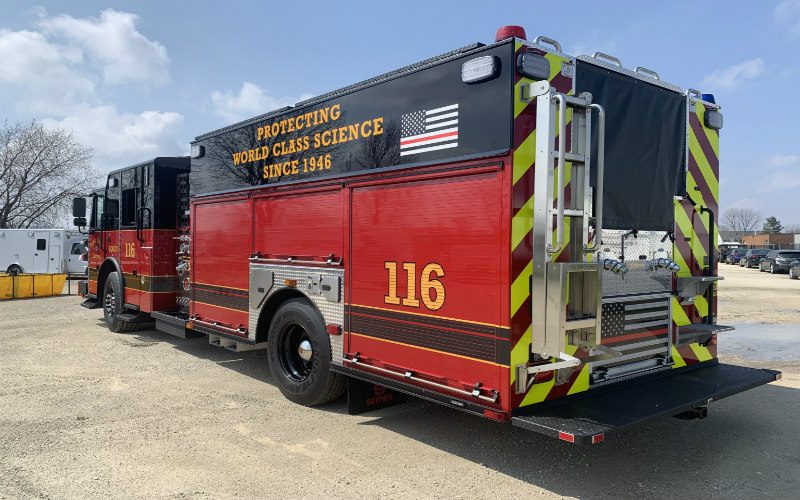

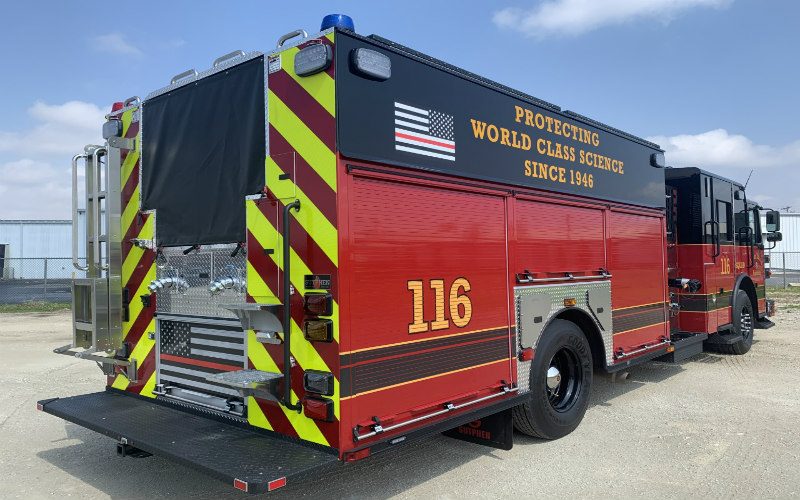

Department Name:
Argonne National Laboratory
Department City / State:
Argonne, IL

WHEEL BASE: 214”

TRAVEL HEIGHT: 10’ –5”

TRAVEL LENGTH: 35’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” raised roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 400HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” left rear, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel, (1) 2 ½” w/ 2 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Aluminum Mounting Plate
  • AMDOR Roll-up Compartment Doors
  • 69 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-28 28’ 2-Section & PRL-16 16’ Roof & 10’ Folding)
  • Ladder Chute: Enclosed
  • Body: PA-17

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel bumper
  • Federal Q2B Siren, Grille Mount
  • Air Bottle Compartments: 4
  • Safety Vision Camera
  • Whelen PFH1 12V Brow Light
  • Whelen Freedom IV 72” LED 10 Module Lightbar
  • Whelen M9 12V LED Scene Lights
