Delivery Date:
04/02/2020
Department Name:
North Olmstead Fire Department
Department City / State:
North Olmstead, OH

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’ –6”

TRAVEL LENGTH: 47’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” raised roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslays: (1) 2” w/ 1 ½” Swivel, (1) 2 ½”
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • ROM Roll-up and Hinged Compartment Doors
  • 99 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof and Combo & 18’ roof & 35’ 2-Section & 10’ Folding)
  • Body: SPH-3

ADDITIONAL EQUIPMENT:

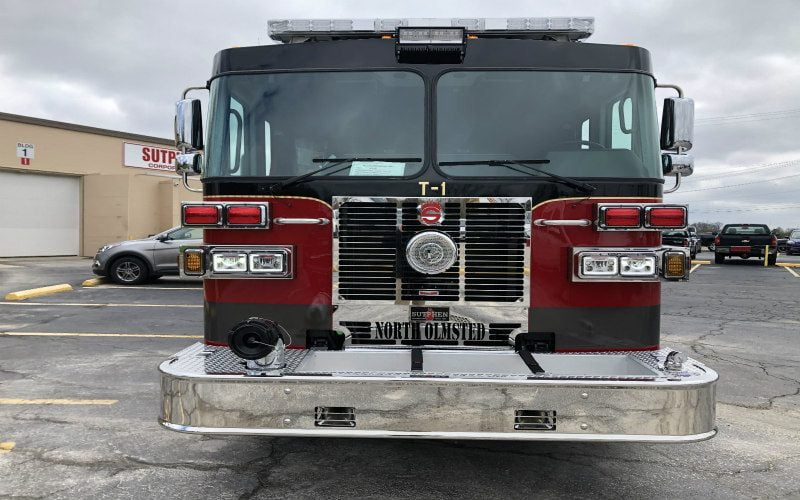

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview
  • Harrison 8KW Generator
  • Whelen PFH2 12V Brow Light
  • Whelen Freedom IV 12 Module 72” LED Lightbar
  • Whelen Pioneer PFH2 12V LED Scene Lights
  • FRC Spectra 240V LED Scene Lights
