Delivery Date:
11/18/2022
Department Name:
Elyria Fire Department
Department City / State:
Elyria, OH
Truck Type:
Sutphen Corporation – HS #6933
Dealer – Herb Fire Equipment
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 33’
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS 3000

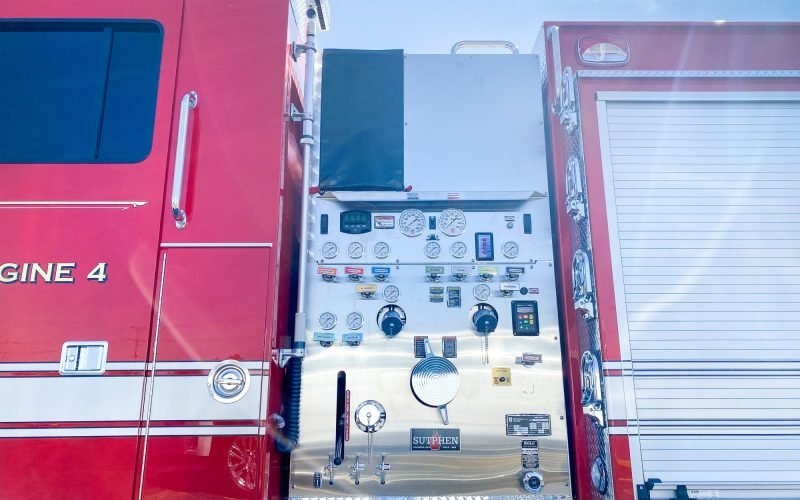

PUMP: Hale
- QMAX 1500 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½ “ Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivels and Poly Lift-Out Tray
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank

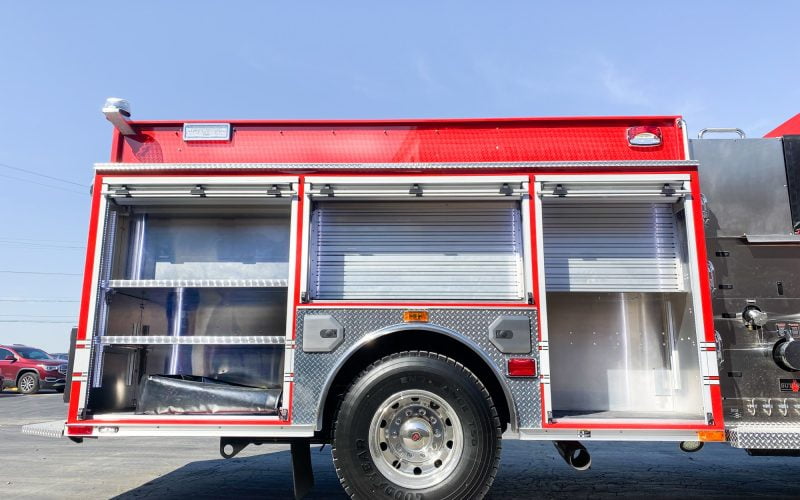

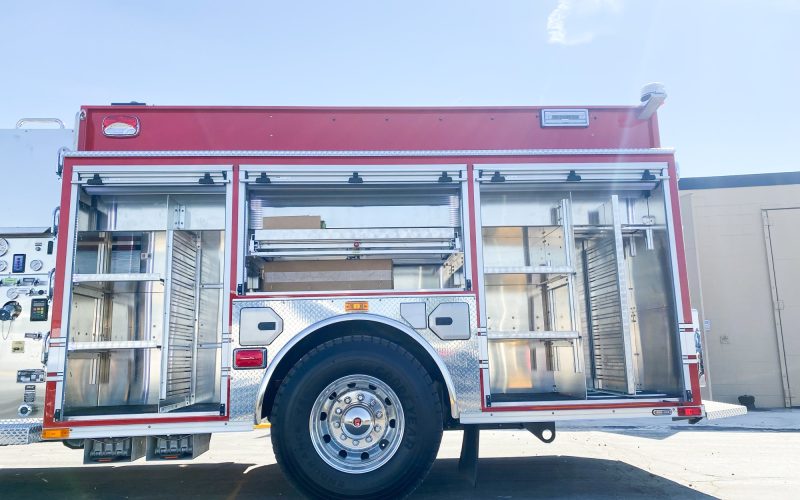

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-up Compartment Doors, Satin Finish
- 228 cu. ft. Total Compartment Space
- Alco-Lite ladder package: PEL-24 24’ 2-sec & PRL-14 14’ Roof & 10’ Folding
- Ladder Chute w/ Backboard Storage
- Body: S2 – Aluminum 43/53 Ladders Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- FRC Spectra 12V LED Brow Light
- FR Spectra 12V LED Scene Light
- Whelen Freedom IV 72” LED Lightbar
- Whelen 600 LED Taillights
- Whelen LED, TAL65 36” Traffic Advisor
