Delivery Date:
08/09/2019
Department Name:
Eastern Band of Cherokee Indians
Department City / State:
Cherokee, NC

Sutphen Corporation – HS #6451

WHEEL BASE: 185”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 30’ – 10”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

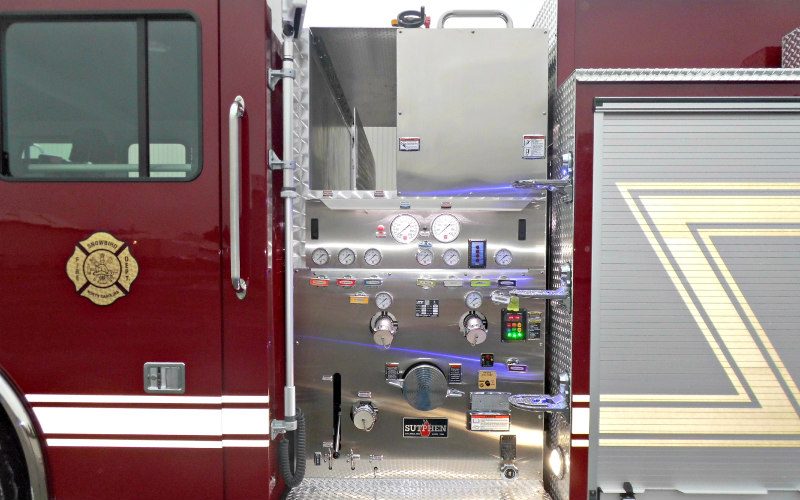

PUMP:                 Hale

  • QFLO-1250 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
  • Monitor: Elkhart 8297 “Stinger” w/ 8298 Mount
  • Crosslays: (2) 2” w/ 1 ½” Swivels
  • 1000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 222 cu. ft. Total Compartment Space
  • Alco-Lite Ladders (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute with Backboard Storage

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Code 3 V-Con 3692, Electric Siren
  • FRC Spectra Brow Light
  • FRC Spectra Telescopic Lights
  • Whelen Freedom LED Lightbar
  • Air Bottle Compartments (4)
