Delivery Date:
08/06/2019
Department Name:
Johnson City Fire Department
Department City / State:
Johnson City, TN

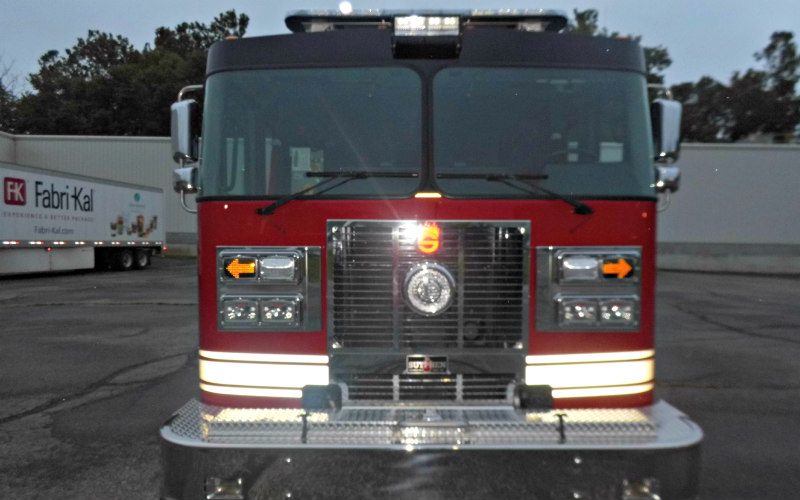

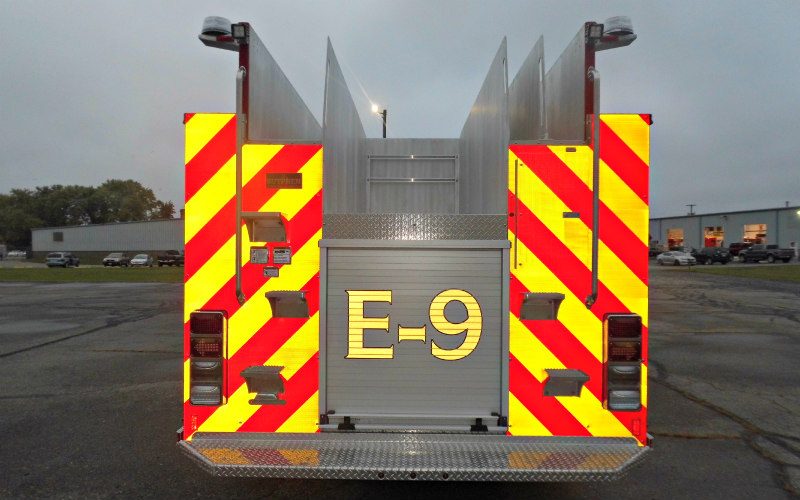

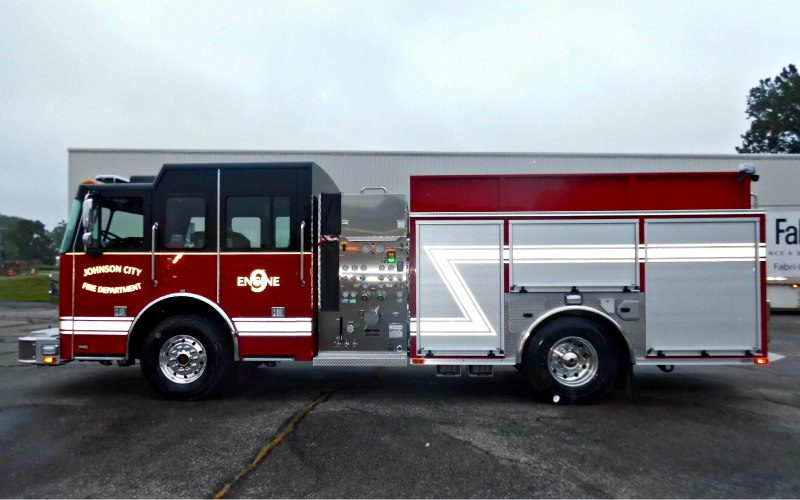

Sutphen Corporation – HS #6462

WHEEL BASE: 185”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 31’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 19,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

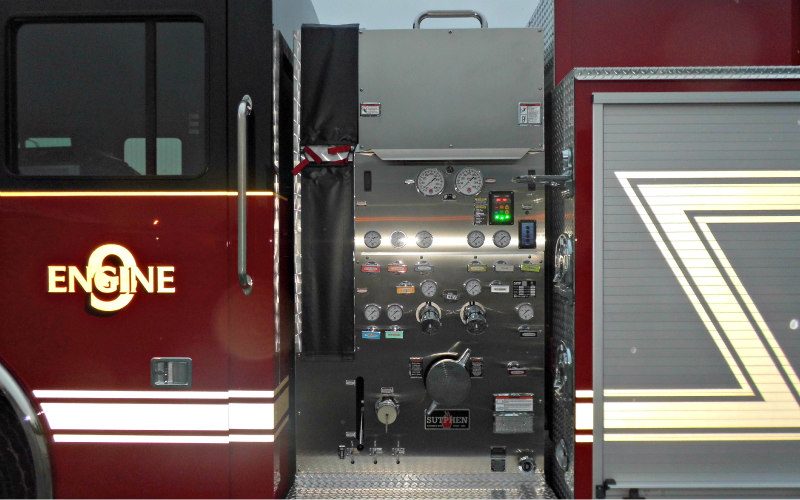

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (2) 2 ½” Right, (1) 2 ½” Right Rear, (1) 3” Deck Gun, (1) 1 ½” Front Bumper
  • Crosslays: (1) 2 ½” & (2) 2” Speedlays w/ 1 ½” Swivel and Poly Lift-Out Tray
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors
  • 222 cu. ft. Total Compartment Space
  • Alco-Lite Ladders (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute with Backboard Storage

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Whelen Pioneer LED Brow Light
  • WHelen Justice LED Lightbar
  • Triple Air Bottle Compartments (2)
