Delivery Date:
10/29/2021
Department Name:
Dunlap Fire Department
Department City / State:
Dunlap, TN

Sutphen Corporation – HS #6865-66

Dealer – Southeast Fire

WHEELBASE: 180 ½”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 31’ – 2 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 15” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

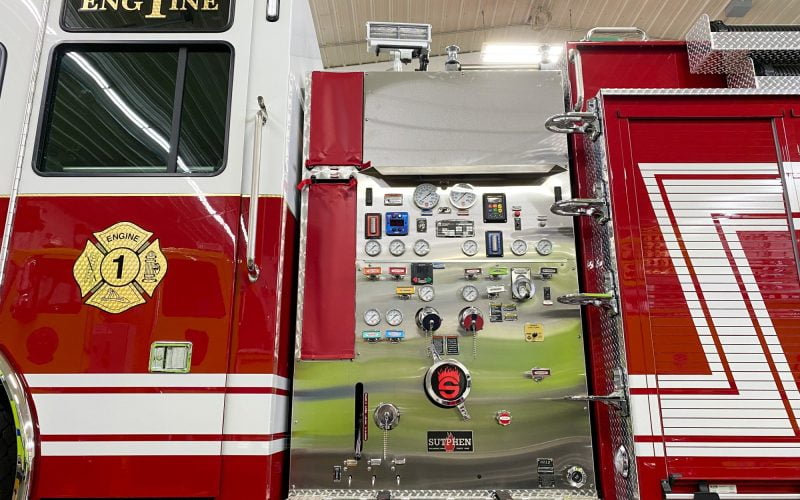

PUMP:                 Hale

  • XS QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (1) 2 ½” Crosslay
  • Speedlay: (2) 2” with Swivels & Poly Lift-Out Trays
  • 1,000-Gallon Water Tank
  • 25-Gallon Foam Tank
  • Foam System, FoamPro 2001, 2.6 GPM

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Compartment Doors

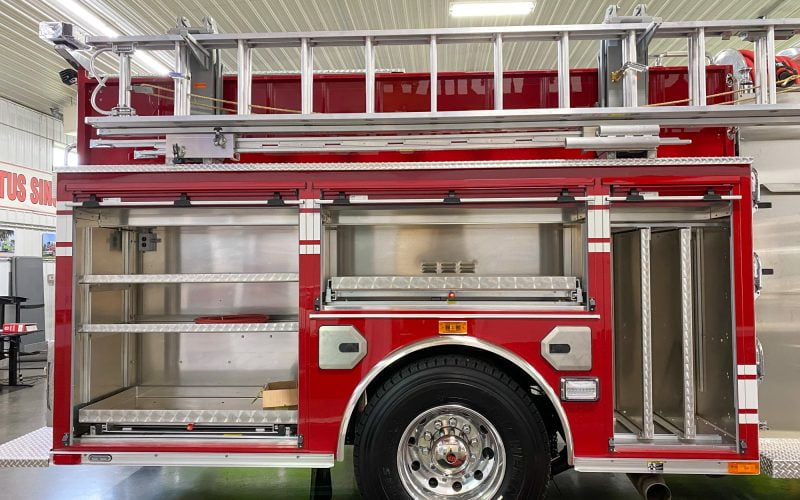

  • Over 220 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
  • Body: S4 – Aluminum 31/53 Electric Ladder Rack

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Three Camera
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen PFH2 Tele Lights
  • Whelen MCFLED Rear Beacons
  • Whelen PCPSM1 12V Scene Lights
  • FireTech 3-Piece 72” LED Brow Light
  • MARS 888 Light
