Sutphen Corporation – HS #6919
Dealer – Heartland Fire Trucks
WHEELBASE: 226”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 34’ – 9”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Waterous
- CSU-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivel
- Crosslay: (1) 2 ½” w/ 2 ½” Swivel
- 1,000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors

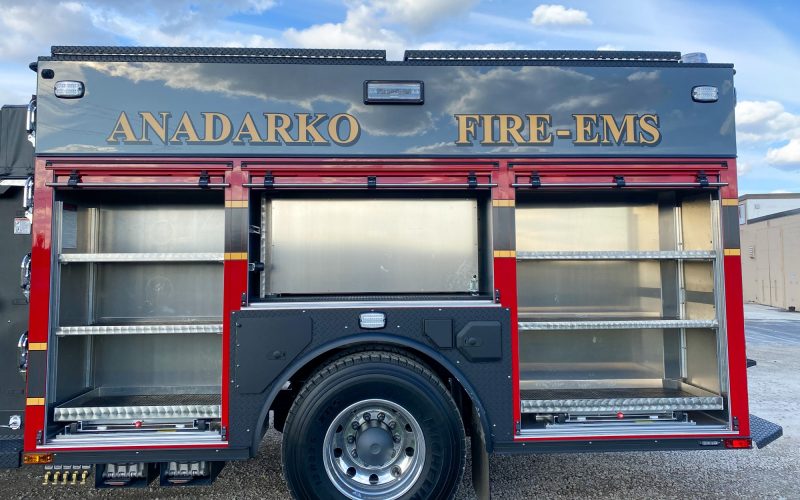

- 294 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof; & 10’ Folding
- Body: G9 – Alum 40/51 Ladders Thru Tank
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview 360HD w/ Built-In DVR
- (2) Triple Air Bottle Compartments
- Whelen Freedom LED Lightbar
- Whelen M9 Scene Lights
- FRC Spectra Brow Light
- FRC Spectra LED Scene
