Delivery Date:
10/29/2021
Department Name:
Dirab Airbase
Department City / State:
Dirab Airbase, Saudi Arabia

Sutphen Corporation – HS #6807

Dealer – Excengin Inc.

WHEELBASE: 230”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 6”

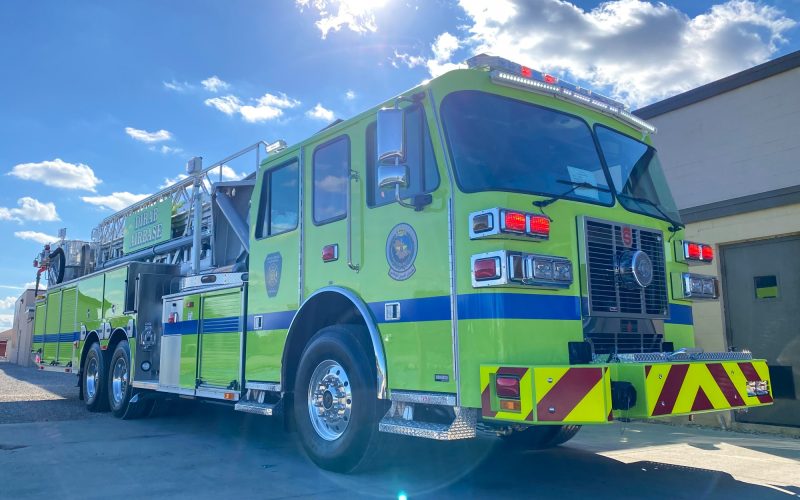

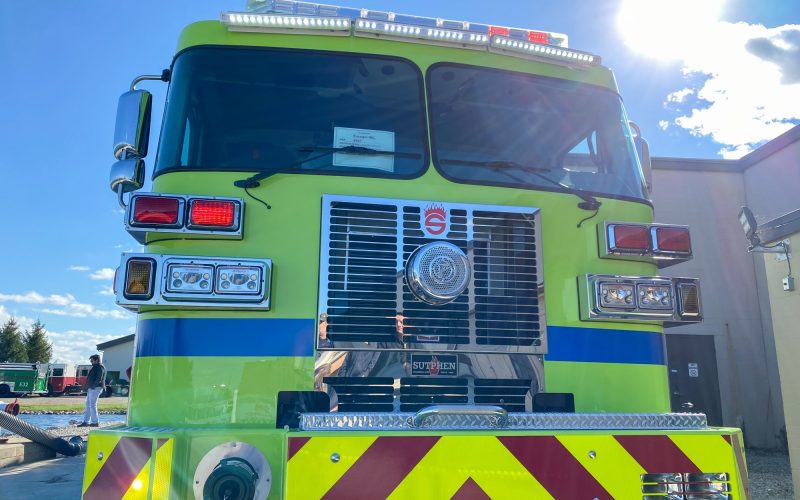

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab w/ a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15 Euro III, 500HP, FR11777
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

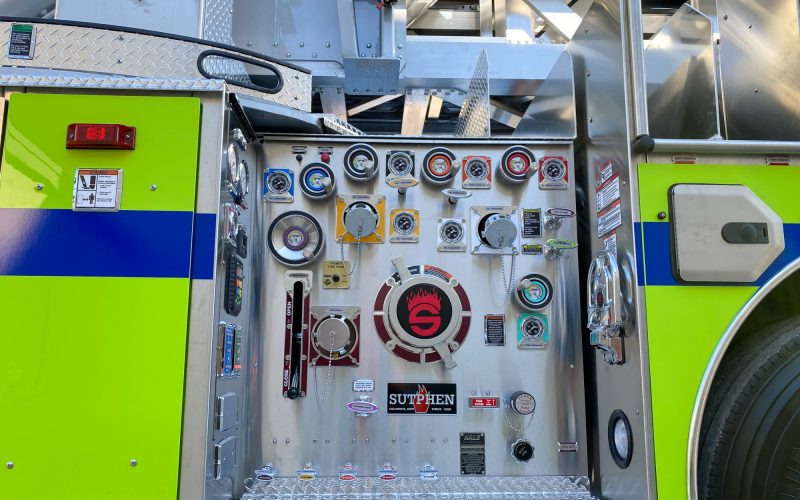

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” Crosslay Valve-Piping w/ 1 ½” Swivel
  • 300-Gallon Water Tank
  • 20-Gallon Foam Tank

BODY:                  Sutphen

  • HuckBolted #304 Stainless Steel
  • SPH Mixed Roll up and Hinged Compartment Doors
  • Alco-Lite Ladder Compliment: (115’: (1) 14’ Combo; (2) 16’ Roof; (1) 24’ 2-Section; (1) 35’ 2-Section; & (1) 10’ Folding)
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″ H

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Safety Vision SV-CLCD0-70
  • Intercom System: FRC ACT 2-Station
  • Generator: Smart Power, 6KW HYD
  • Whelen Freedom IV 72” LED Lightbar (12 Module)
  • FireTech 3-Piece 12V Brow
  • FireTech 12V Mini-Brow
  • FireTech 120V Tele
  • FireTech LED Work Light

MONITOR:

  • Driver Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
