Delivery Date:
02/15/2019
Department Name:
City of Paola Fire Department
Department City / State:
Paola, KS

Sutphen Corporation – HS #6287

Dealer – Jim Bartholomew

WHEEL BASE: 173”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 31’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 380 HP
  • Alternator: Leece Neville, 270 AMP
  • Transmission: Allison Gen 5, EVS3000

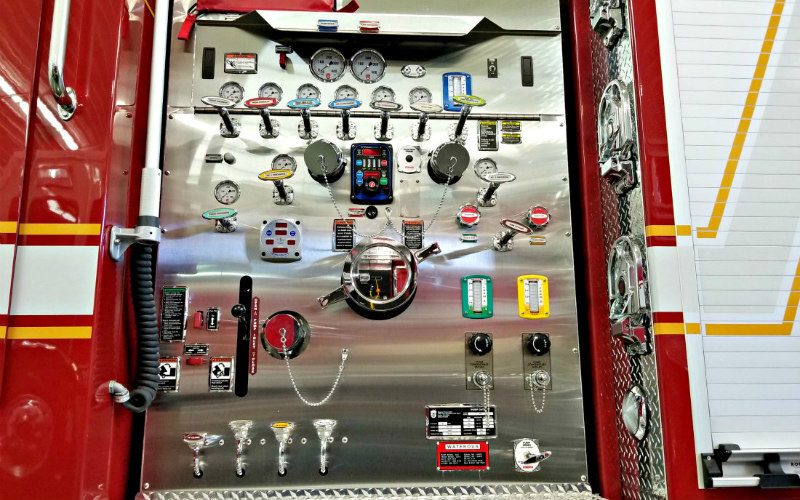

PUMP:                 Waterous

  • CSU-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 2” with 1 ½” Swivel
  • 700-Gallon Water Tank
  • 20-Gallon Foam Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Doors
  • Over 228 cu. ft. Total Compartment Space
  • Duo-Safety (900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding)

OPTIONAL EQUIPMENT:

  • 6KW Smart Power Generator
  • FRC Spectra 20K LED Tele Light
  • FRC Spectra 20K LED Browlight
  • Whelen Freedom IV LED Lightbar
  • 24” Bumper
  • Federal Q2B Siren
  • 7 Bottle Compartments
