Delivery Date:
12/20/2020
Department Name:
Winston Salem Fire Department
Department City / State:
Winston Salem, NC

Sutphen Corporation – HS #6673

Dealer – Stevens Fire Equipment

WHEELBASE: 199”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 33’ – 6”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails, Single Axle (50K PSI)
  • Front Suspension 20,000 lbs, (4) 56” LEAFS
  • Rear Suspension FIREMAAX 27,000 lbs, Air Ride
  • Engine: Cummins X 12 455HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

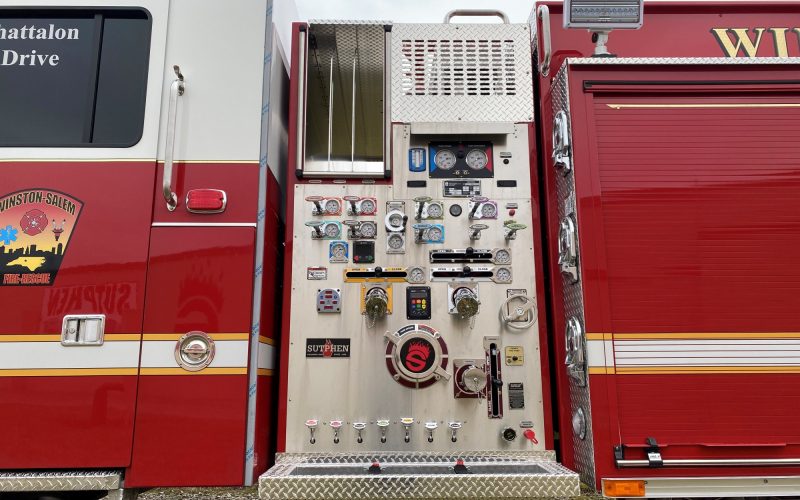

PUMP:                  Hale

  • QMAX-1500 GPM 6” Suction Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, 2” Right/Front Hosebed w/ Swivel
  • Bumper, (1) 1 ½” Front Bumper, 2” Plumbing
  • Crosslay: (1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” Swivel
  • 750-Gallon Water Tank

BODY:                   Sutphen

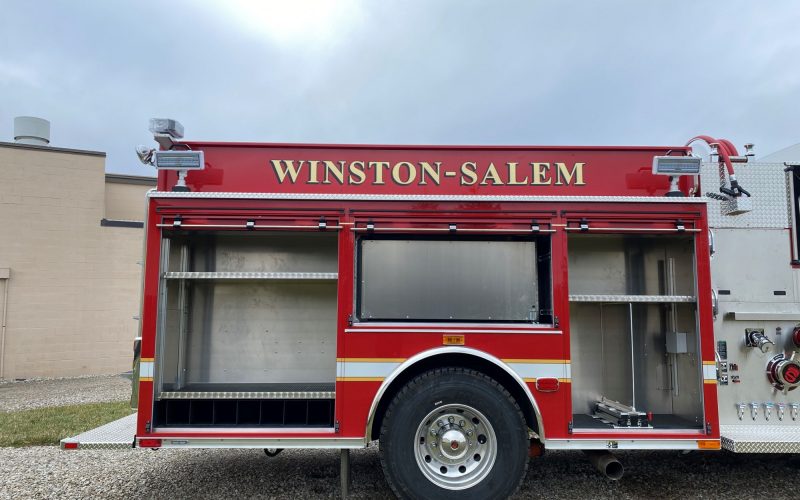

  • AMDOR Roll-Up Compartment Doors
  • Over 250 cu. ft. Total Compartment Space
  • Ladder Chute in Center of Water Tank
  • Body: PA-19 RES 43/53

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera Safety Vision SV-620
  • Air Bottle Rack w/ Rhino Lining (7)
  • Whelen Freedom 72” 12 LED Lightbar
  • Firetech 3-Piece 72” 12V Brow
  • Unity Work Lights
