Delivery Date:
02/15/2019
Department Name:
Berlin Township Fire Department
Department City / State:
Berlin, OH

WHEEL BASE: 226”

TRAVEL HEIGHT: 10’-2”

TRAVEL LENGTH: 35’-6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

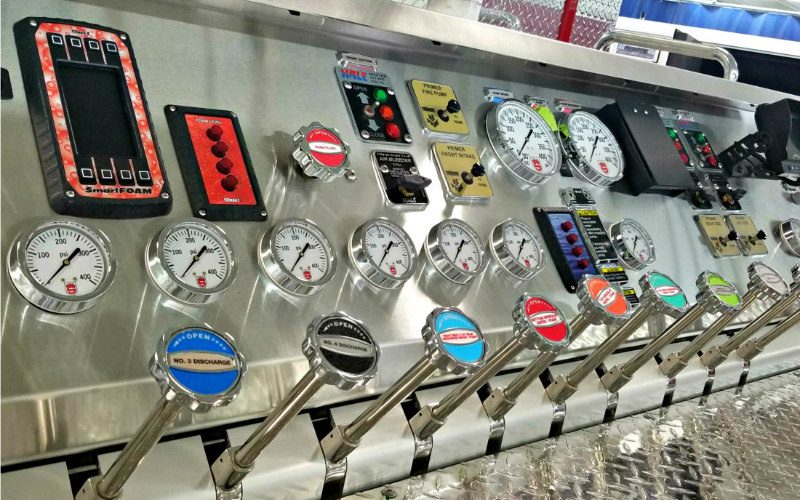

PUMP:                 Hale

  • QMAX-1500 GPM
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” with 1 ½” Swivel
  • 1,000-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Hale Foamlogix 2.1

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • ROM Roll-Up Doors
  • 3 cu. ft. Total Compartment Space
  • Alco-Lite PEL-24 (24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute

OPTIONAL EQUIPMENT:

  • Honda EB2000iA Generator
  • Firetech Guardian Elite Scene Lights
  • FRC Spectra 12V LED Brow
  • Whelen Freedom IV LED Lightbar
  • Roto Ray
  • FRC 360 – Seon Camera System
  • 24” Bumper
  • Federal Q2B Siren
