Department Name:
Orlando Fire Department
Department City / State:
Orlando, FL

WHEEL BASE: 188”

TRAVEL HEIGHT: 10’ –1”

TRAVEL LENGTH: 32’ – 4 ½”

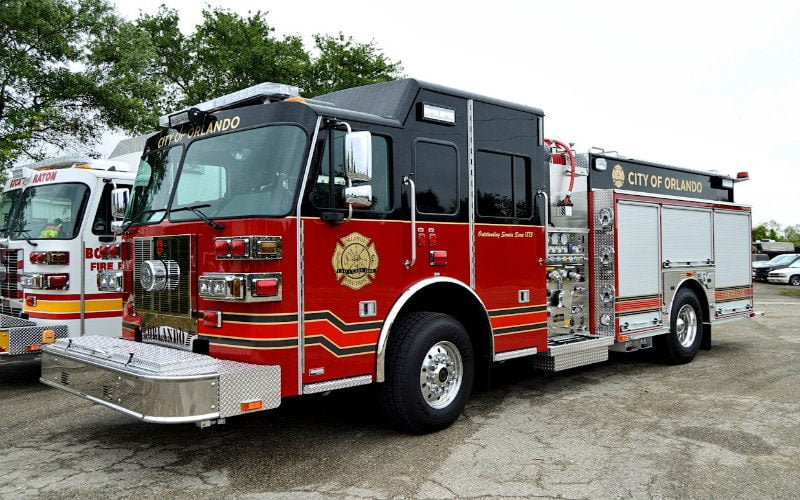

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 15” raised roof

  • Four-Door, Five-Person Cab
  • 10” Single Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (2) 3” Right, (1) 2 ½” Front Right, (1) 2” Front Left, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

  • AMDOR Roll-up Compartment Doors
  • 4 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Ladder Chute: Enclosed
  • Body: S9 – Alum 43/53 Ladder Through Water Tank

ADDITIONAL EQUIPMENT:

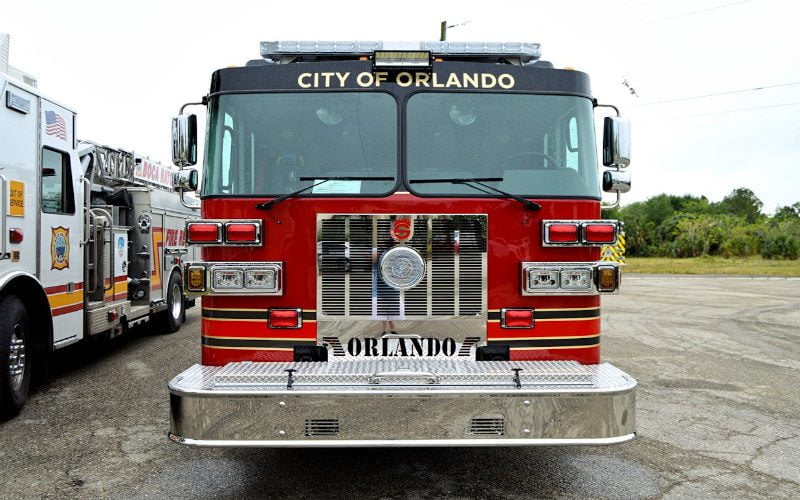

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Air Bottle Compartments: 4
  • Whelen PCH2 12V Brow Light
  • Whelen Freedom IV LED Lightbar
  • Whelen PCPSM2 12V LED Scene Lights
  • Whelen 5V1R Red LED Lights
