Delivery Date:
01/01/2021
Department Name:
Elkhart Fire Department
Department City / State:
Elkhart, MI

Sutphen Corporation – HS #6700

Dealer – Herb Fire

WHEELBASE: 230”

TRAVEL HEIGHT: 11’-6”

TRAVEL LENGTH: 46’-1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15, 600 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right

BODY:                  Sutphen

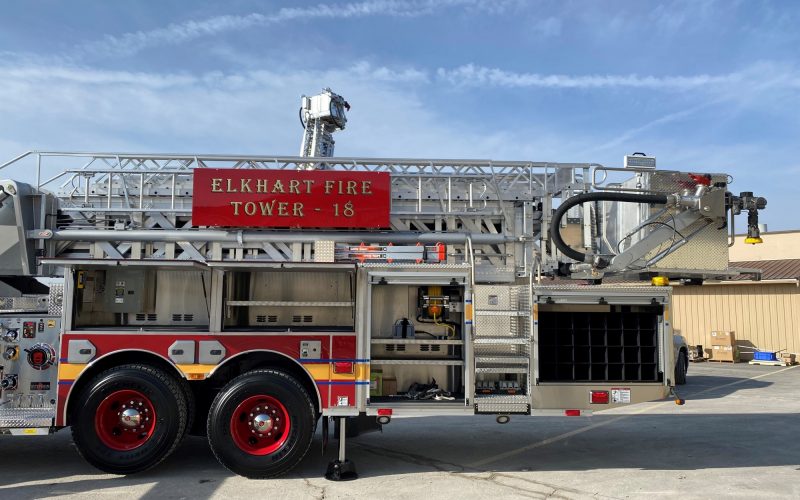

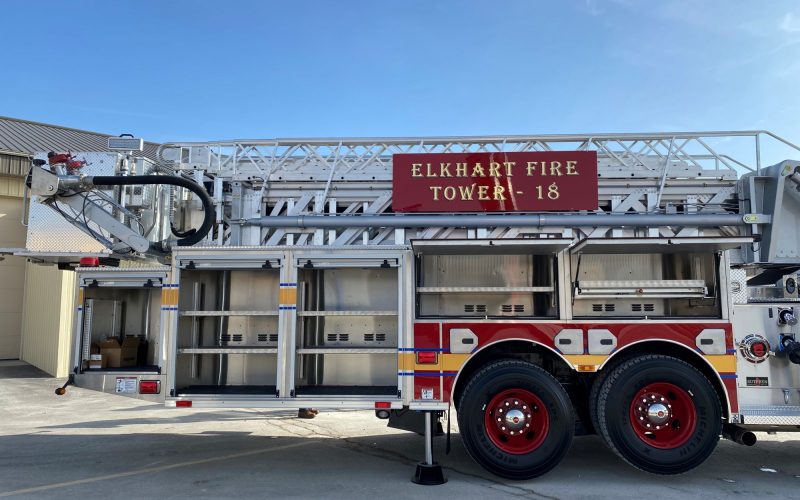

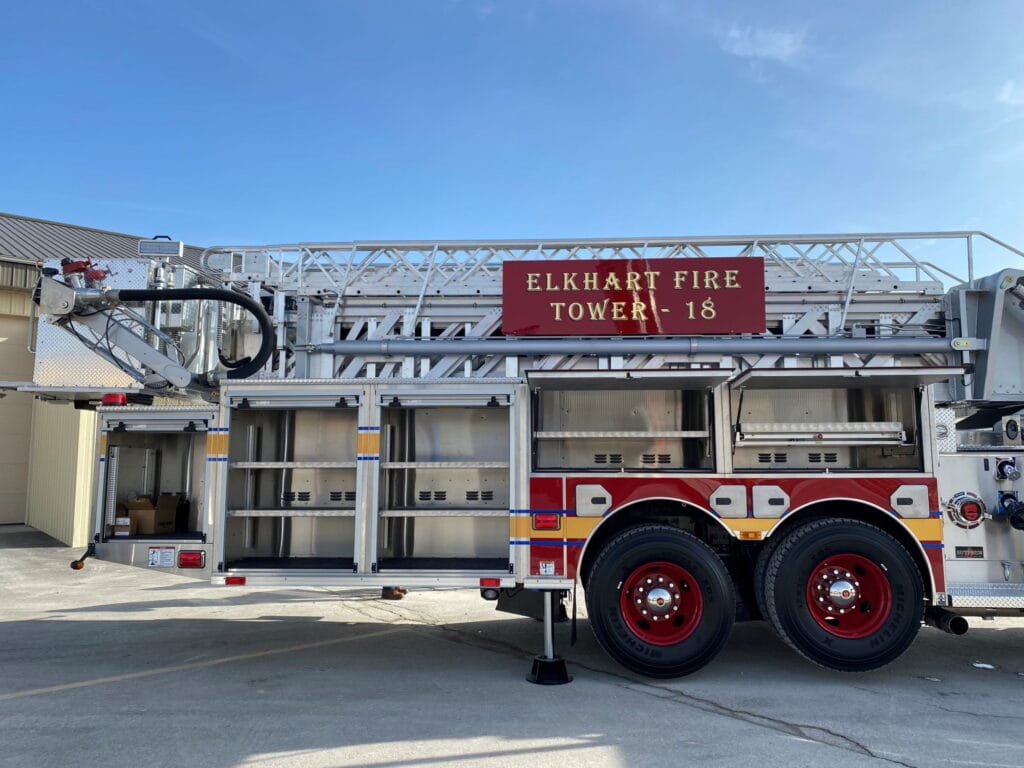

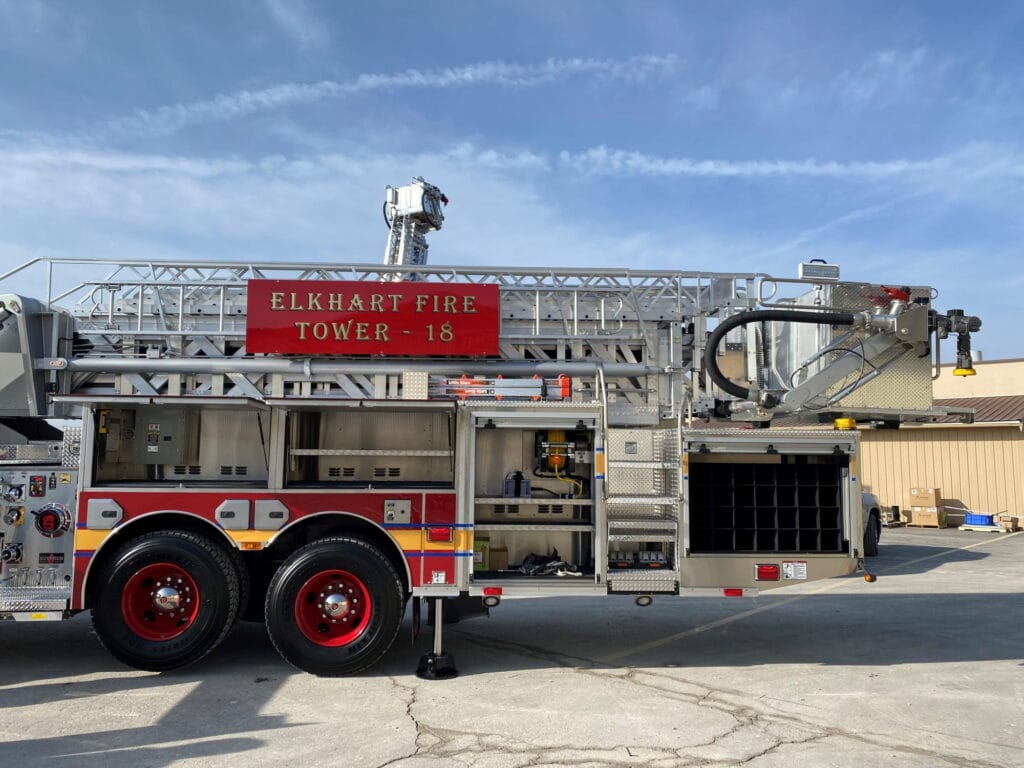

  • Cord Reel compartment with double hinged Doors
  • Over 325 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (235’: 12’ 2-Section, 20’, 10’, 24’ 2-Section, 28’ 2-Section, (3) 16’, 20’, 35’ 2 Section & 10’ Folding)
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel Bumper
  • Generator: 10KW Smart Power
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 175’ (1)
  • Intercom System, FRC ACT 2-Station
  • FRC Spectra Brow Light
  • FRC Spectra 240V LED Telelights
  • Whelen 600 Super LED Warning Lights
  • Whelen M9 LED Scene Lights

MONITORS:

  • Driver Side Monitor: Elkhart Cobra EXM 1250 GPM
  • Officer Side Monitor: Elkhart Vulcan Manual
  • Officer Side Nozzle: Elkhart 282A Straightener and ST-194 Stacked Tips
