Delivery Date:
10/16/2020
Department Name:
Longboat Key Fire Rescue Department
Department City / State:
Longboat Key, Florida
Truck Type:

Sutphen Corporation – HS #6730

Dealer – South Florida Emergency Vehicles

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 0 ½”

TRAVEL LENGTH: 41’ – 3 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS5000

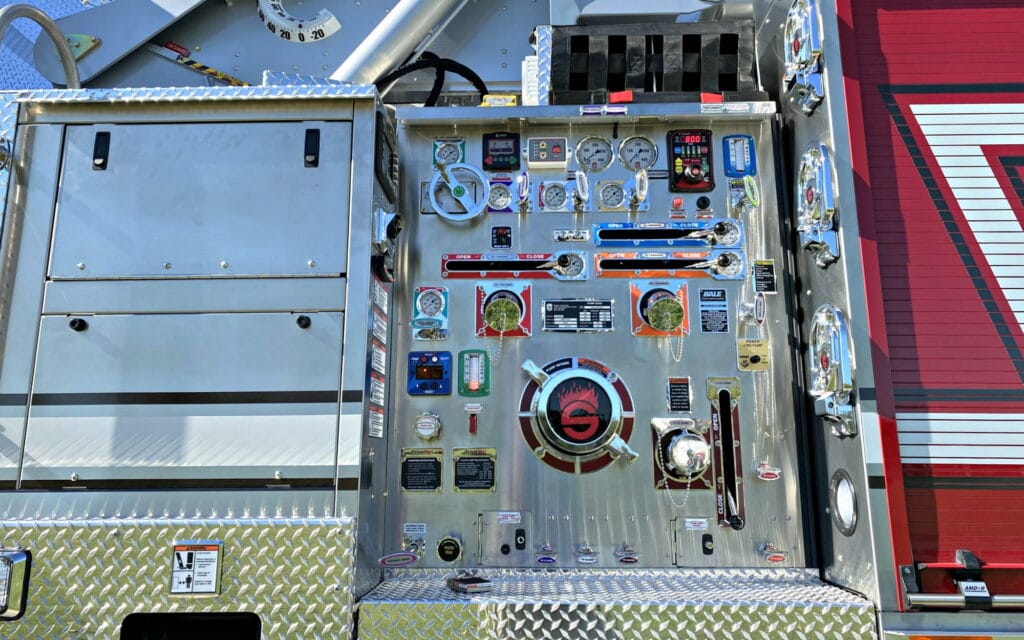

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foampro 2001, 2.6 GPM
  • Monitor: Elkhart 7205 Cobra EXM w/ SM1500E Nozzle

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors
  • 75 cu. ft. Total Compartment Space

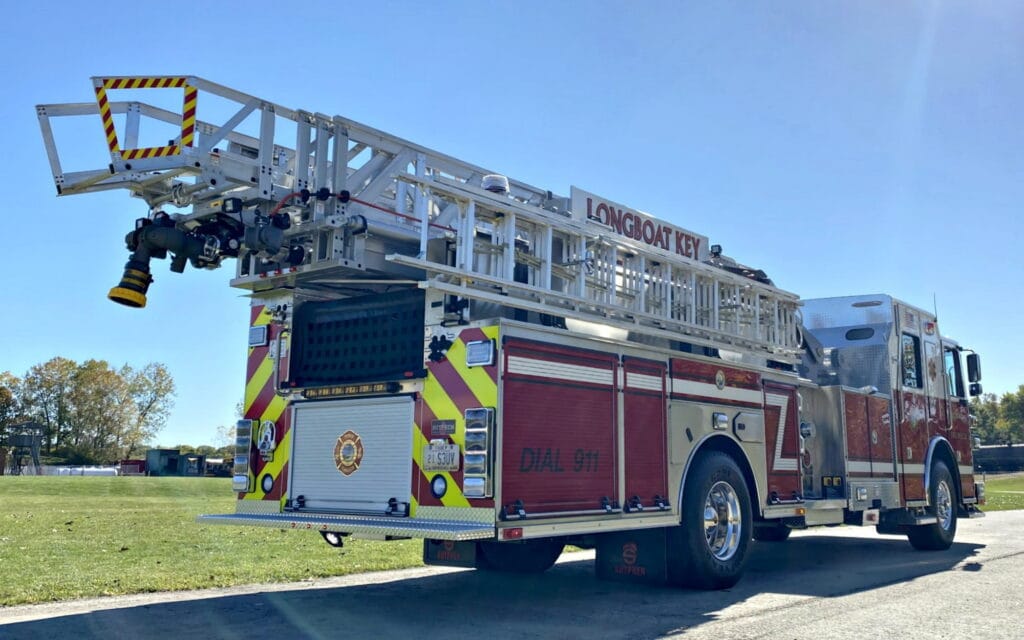

  • Alco-Lite Ladder Package (85’: 16’ Roof, 24’ 2-Section, 35’ 3-Section & 10’ Folding)
  • Backboard Storage Chute
  • Body: SAA-4, Left High/Right Intermed/Trans

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade 360
  • Generator: Portable Honda EU2200I (2)
  • Intercom System: FRC ACT 2-Station
  • Ziamatic Quic-Lift Electric Ladder Rack w/ 24’ Ladder Chute
  • Whelen Freedom 4 Lightbar
  • Whelen TAL85 Traffic Advisor
  • FRC Spectra LED Brow Light
  • FRC Spectra 900 12V LED Scene Light
