Delivery Date:
09/18/2020
Department Name:

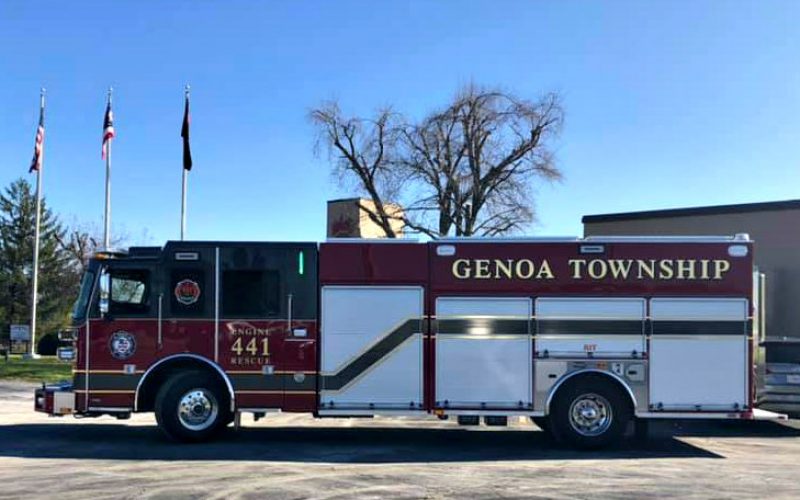

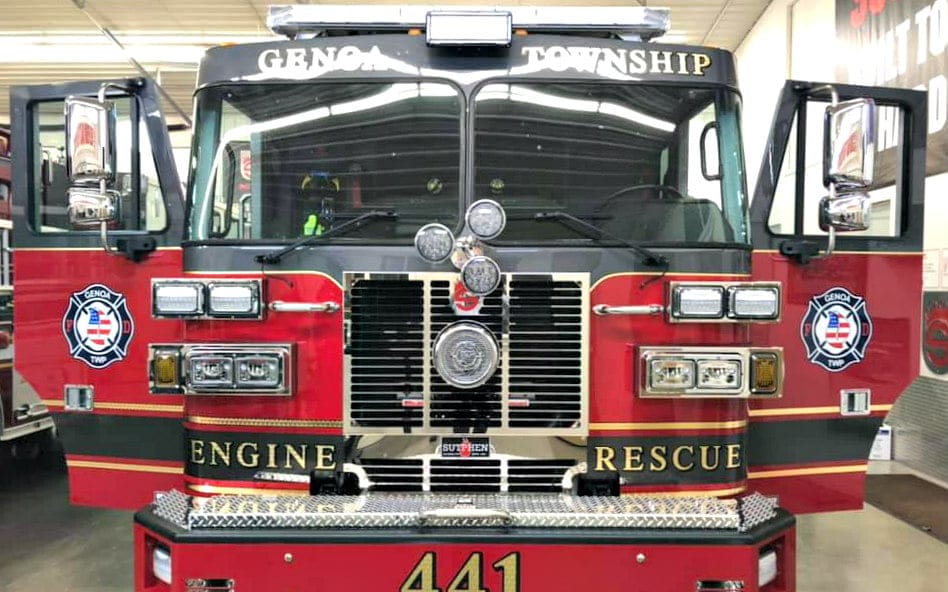

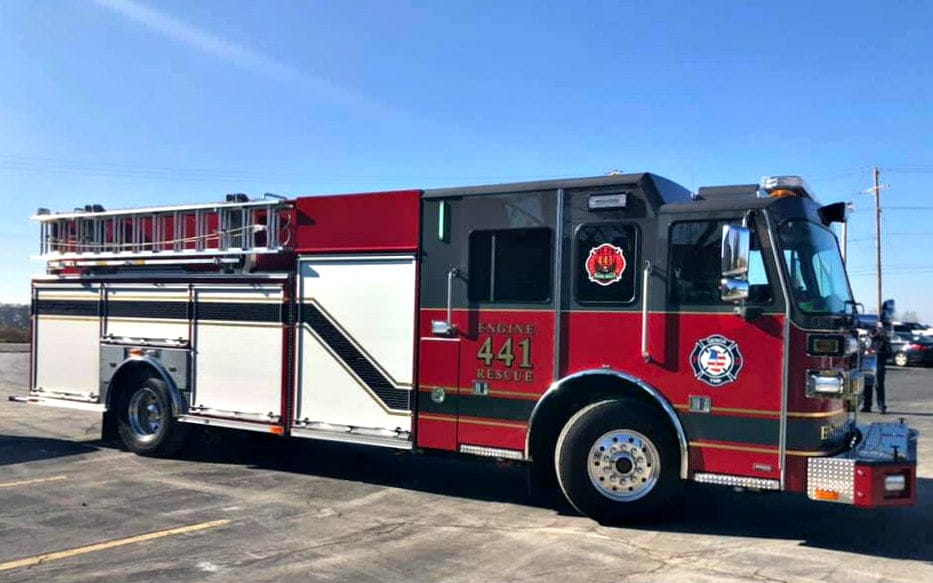

Genoa Township Fire Department
Department City / State:
Galena, Ohio

Sutphen Corporation – HS #6590

Dealer – Herb Fire Equipment

WHEELBASE: 225”

TRAVEL HEIGHT: 10’ – 2”

TRAVEL LENGTH: 35’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” raised roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” w/ Lift-Out Trays
  • Monitor, Akron 3416 Apollo
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • 20-Gallon Foam Tank
  • Hale Smartfoam 2.1A

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Compartment Doors
  • Over 360 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: Modified PA-05 Res 56/53 Electric Ladder Rack – Alum 43/53 Ladder Chute and Double Hatch

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Whelen Freedom IV 72” LED Light Bar
  • Whelen L31 Red Beacon
  • Whelen M9V2 LED Scene Lights
  • FRC Spectra LED Brow Light
  • FireTech Scene Light
  • (2) Triple & (1) Single SCBA Compartment
  • (1) Oil Dry Hopper
